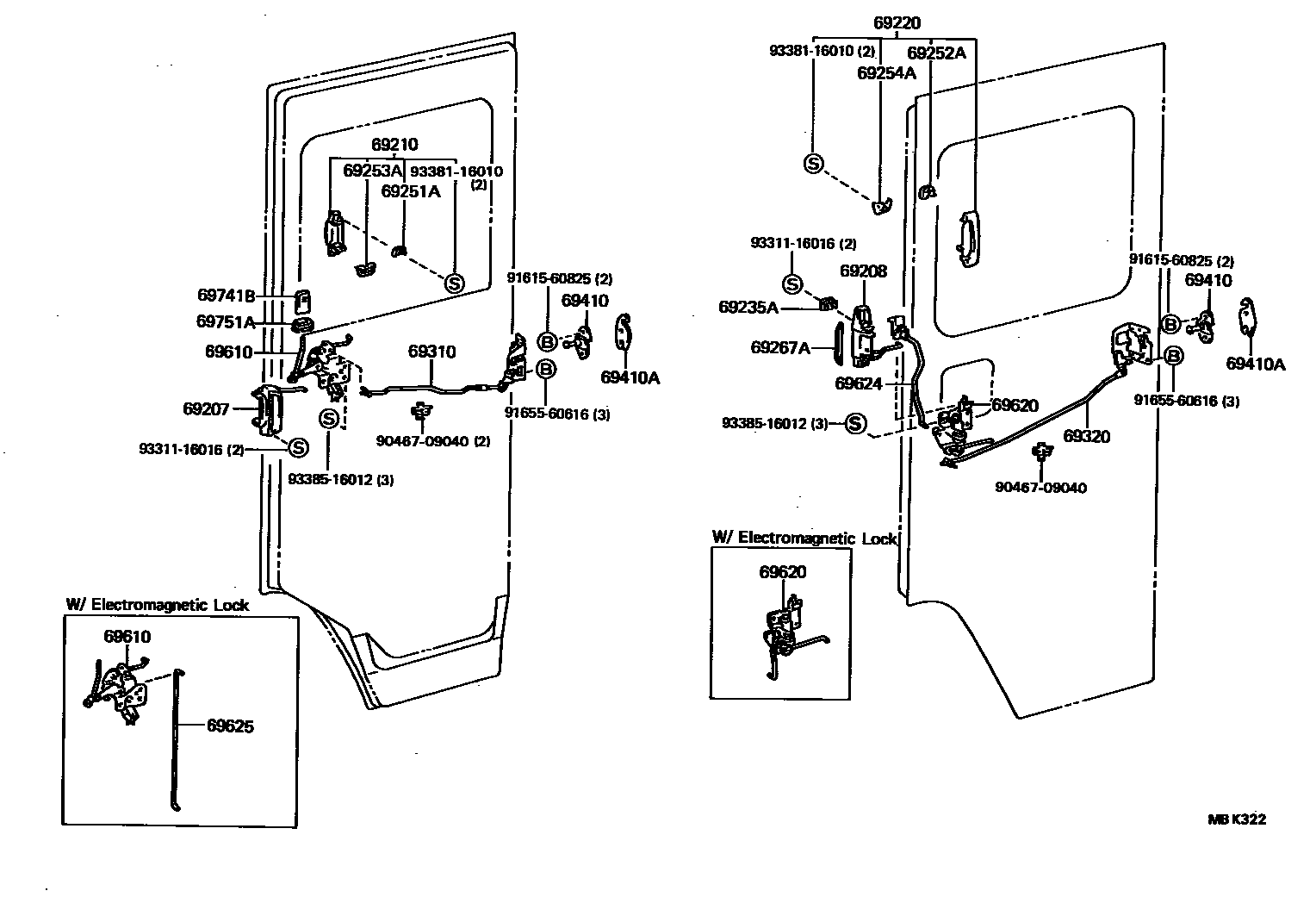

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BROWN,TRIM4#
BROWN,BROWN
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BROWN,TRIM4#
BEIGE,BEIGE
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69235APLUG, FRONT SLIDE DOOR INSIDE HANDLE CASE
BEIGE,BEIGE
69251APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH
69252APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH
69253APAD, FRONT DOOR OUTSIDE HANDLE, NO.2 RH
69254APAD, FRONT DOOR OUTSIDE HANDLE, NO.2 LH
69267ASEAL, FRONT SLIDE DOOR INSIDE HANDLE, NO.1
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69410ASHIM, FRONT DOOR LOCK STRIKER PLATE
69610CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, RH
W/*EL
W/*EL
69620CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, LH
W/*EL
W/*EL
69624ROD, FRONT SLIDE DOOR LOCK CONTROL PUSH, LH
BEIGE,BEIGE
69625ROD, FRONT SLIDE DOOR, LOCK CONTROL
69741BKNOB, FRONT DOOR LOCK CONTROL
BLACK,BLACK
BLACK,TRIM4#
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
BLACK,TRIM4#
BLACK,BLACK
9046709040
main90467-09040
9161560825
main91615-60825
9165560616
main91655-60616
9331116016
main93311-16016
9338116010
main93381-16010
9338516012
main93385-16012
26 parts on this diagram · 2 diagrams in section
