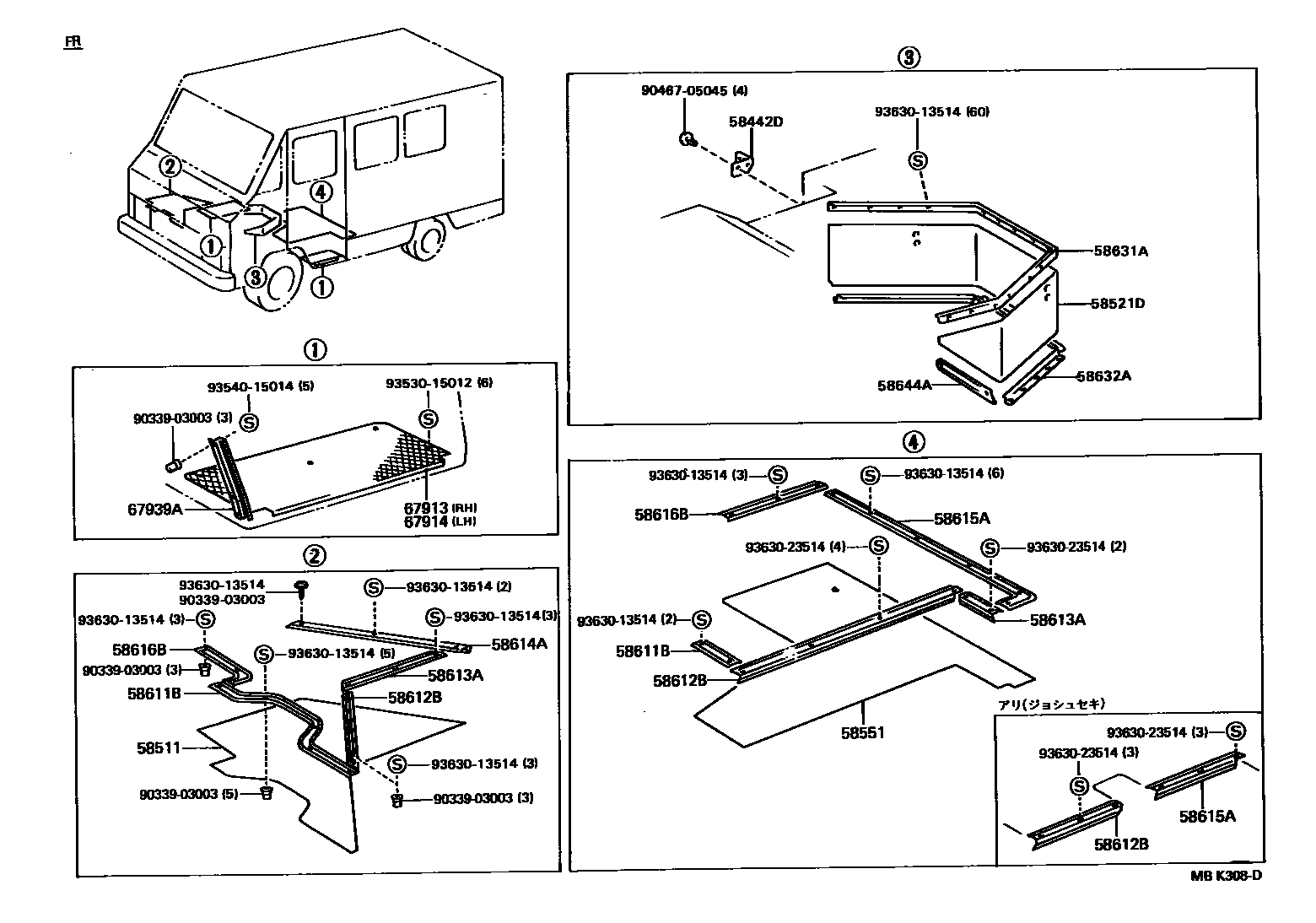

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58442DCOVER, JACK

main58442-90D00iBU60198601-199505

58511MAT, FLOOR, FRONT

main58511-90F00iBU60198601-198704

main58511-90F01-06iBU60198805-199505

LIGHT BROWN,TRIM4#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-90D01iBU60198601-198605

main58521-90D05iBU60198605-199505

main58521-90F00-06iBU60..N..3D199008

58551MAT, FLOOR, REAR

main58514-90F00iBU60198601-198811

main58514-90F04-06iBU60..D198811-199505

LIGHT BROWN,TRIM4#

main58514-90F06-06iBU60..D..CBU; BU60..N198811-199505

58611BPLATE, MAT SET, NO.1

main58611-90F00iBU60198601-198805

RR

main58633-90D02iBU60198601-198704

FR

main58633-90F01-06iBU60198805-199505

main58633-90F02iBU60..N..3D199008-199505

58612BPLATE, MAT SET, NO.2

main58612-90D02iBU60198805-199505

main58612-90D03iBU60198805-199505

main58643-90D02-06iBU60198805-199505

main58643-90D03-06iBU60..N..3D199008-199505

main58643-90F00iBU60198601-198704

FR

58613APLATE, MAT SET, NO.3

main58613-90F00iBU60198805-199505

main58623-90D02-06iBU60..N..3D199008-199505

main58623-90F00iBU60198601-198805

FR

58614APLATE, MAT SET, NO.4

main58624-90F00iBU60198601-199505

58615APLATE, MAT SET, NO.5

main58615-90F00iBU60..D; BU60..N198805-198811

main58615-90F01iBU60..D198805-198811

main58615-90F02iBU60..D..CBU; BU60..N198811-199505

main58615-90F03iBU60..D198811-199505

main58639-90D01iBU60198805-199505

58616BPLATE, MAT SET, NO.6

main58616-90D01iBU60..D198805-198810

main58616-90D02iBU60..D; BU60..N198805-198810

main58616-90D03-06iBU60..D198811-199505

BROWN,TRIM4#

main58616-90D04-06iBU60..D..CBU; BU60..N198811-199505

main58649-90D01iBU60198601-198704

FR

58631APLATE, ENGINE SERVICE HOLE MAT, FRONT

main58631-90D00iBU60198601-199505

58632APLATE, ENGINE SERVICE HOLE MAT, REAR

main58632-90F00iBU60198601-199505

58644APLATE, ENGINE SERVICE HOLE MAT, LH

main58644-90D00iBU60198601-199505

67913PLATE, FRONT DOOR SCUFF, RH

main67913-90F00iBU60198601-198708

main67913-90F01iBU60198708-199505

67914PLATE, FRONT DOOR SCUFF, LH

main67914-90F00iBU60198601-198708

main67914-90F01iBU60198708-199505

67939APROTECTOR, FRONT DOOR SCUFF

main67938-90D03iBU60198805-199505

main67938-90F00iBU60198601-198708

RH

main67938-90F01iBU60198708-198805

RH

main67948-90F00iBU60198601-198708

LH

9033903003

main90339-03003

9046705045

main90467-05045

9353015012

main93530-15012

9354015014

main93540-15014

9363013514

main93630-13514

9363023514

main93630-23514

22 parts on this diagram · 3 diagrams in section
