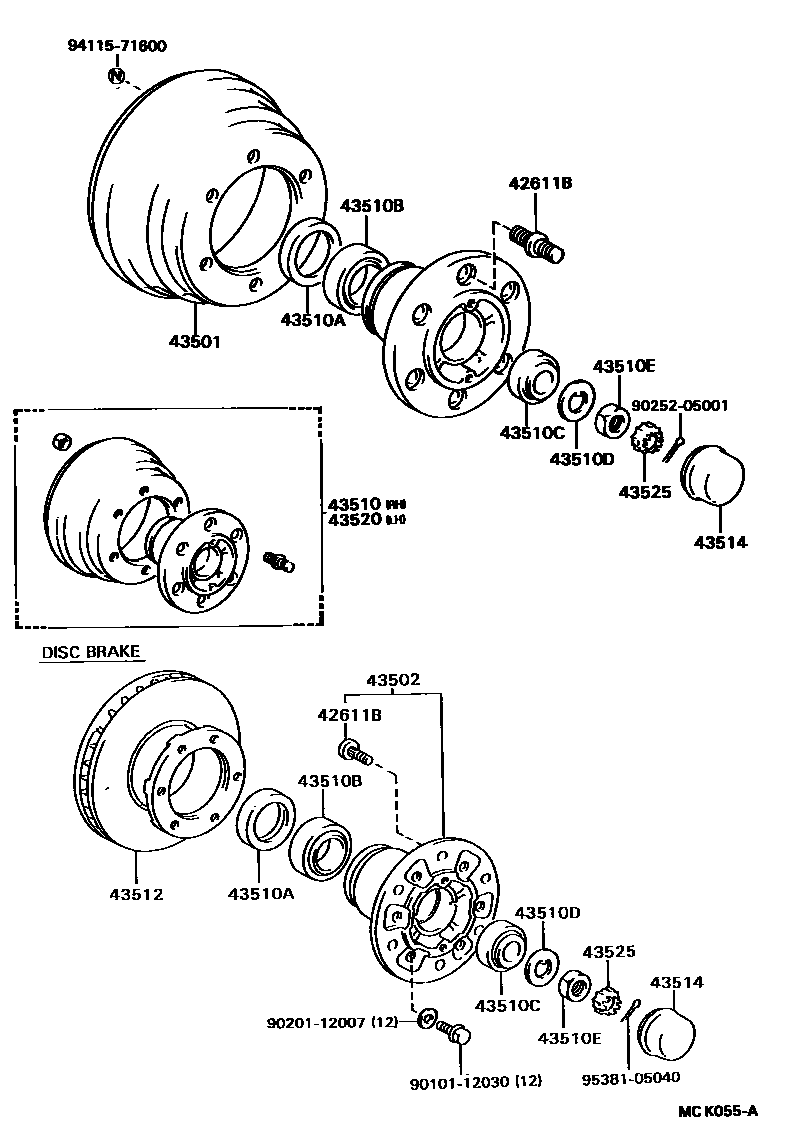

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02050×6iBU60198601-198805

RH

main90942-02051×6iBU60198601-198805

LH

main90942-02061iBU60199008-199202

main90942-02062iBU60..N199202-199505

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36090×2iBU60..D199202-199505

43502HUB SUB-ASSY, FRONT AXLE

main43501-25010iBU60..N199202-199505

main43502-25030iBU60199008-199202

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36120iBU60198601-199202

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-68001×2iBU60198601-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045×2iBU60198601-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001×2iBU60198601-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001×2iBU60198601-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001×2iBU60198601-199505

43512DISC, FRONT

main43512-25050×2iBU60199008-199202

43514CAP, FRONT HUB GREASE

main43514-36030×2iBU60198601-199505

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36120iBU60198601-199202

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010×2iBU60198601-199505

9010112030

main90101-12030

9020112007

main90201-12007

9025205001

main90252-05001

9411571600

main94115-71600

9538105040

main95381-05040

18 parts on this diagram · 1 diagram in section
