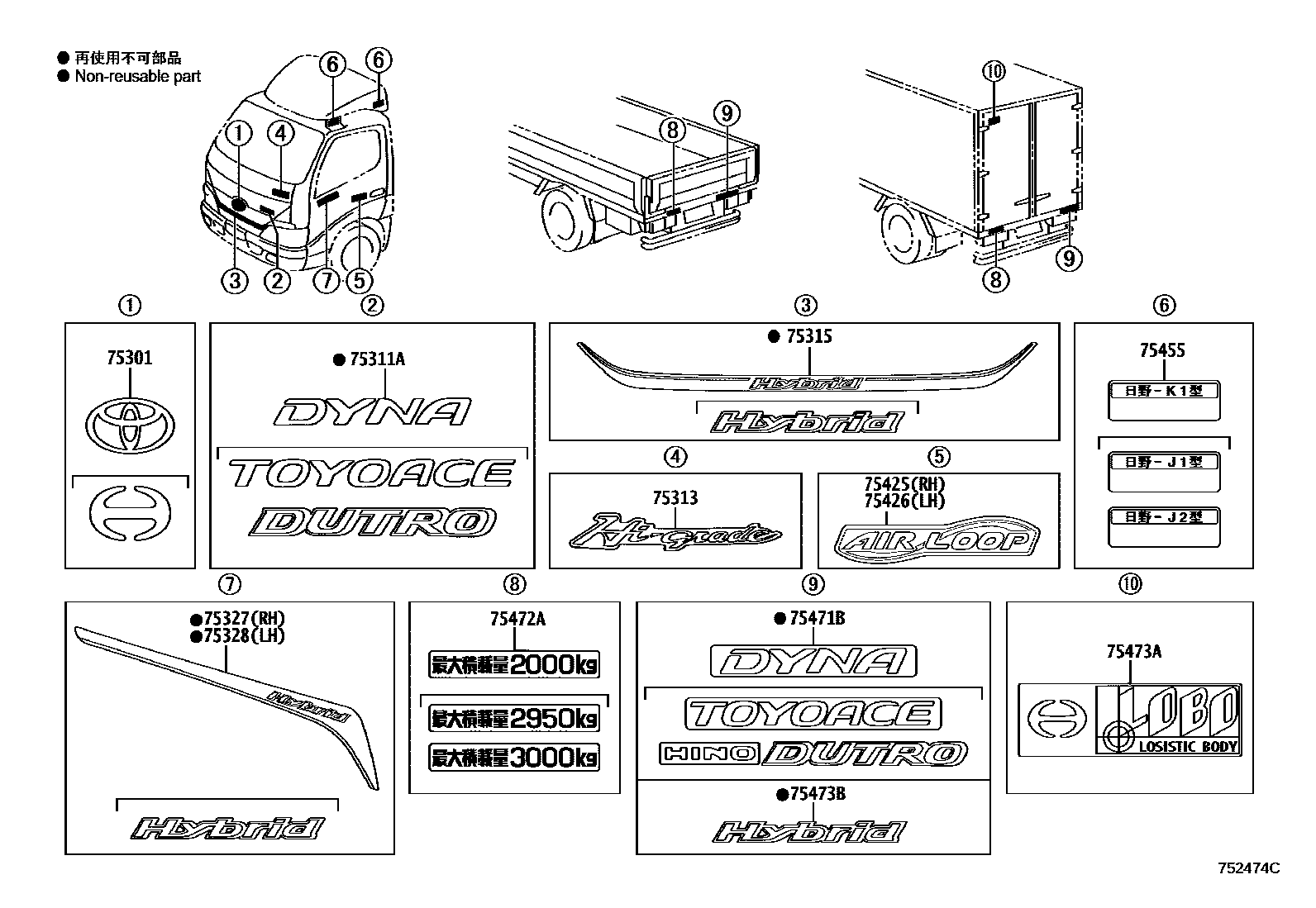

EMBLEM & NAME PLATE

75301ORNAMENT, RADIATOR GRILLE (OR FRONT PANEL)

main75315-37070supersedes 75315-37080iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

75311APLATE, FRONT NAME, NO.1

main75311-37160iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201107-201209

main75311-37180supersedes 75311-37160iXKC605,645,655,XKU60#,64#,65#..CBU,IV3; XKU600..IV5201107-201209

main75311-37210supersedes 75311-37160iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201107-201304

main75311-37300iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

75313PLATE, FRONT NAME, NO.3

main75313-0W030iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201505-201705

main75313-37070iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201107-201504

75315ORNAMENT, RADIATOR GRILLE

main75316-37010supersedes 75316-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

75327MARK, FRONT DOOR, RH

main75316-37010supersedes 75327-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

75328MARK, FRONT DOOR, LH

main75316-37010iXKC605,645,655,XKU60#,64#,65#..DCRTK; XKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

75425ORNAMENT, FRONT DOOR, RH

main75425-37020iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

75426ORNAMENT, FRONT DOOR, LH

main75425-37020iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

75455MARK, ROOF AIR DEFLECTOR

main75455-37120iXKC605,XKU60#..IV3; XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3; XKC655..T4..IV3;XKC645,XKU64#,65#..IV3201107-201705

main75455-37150iXKC605,XKU605..IV3; XKU645,655..IV3201905

main75455-37160iXKC605,XKU60#..DCRTK..IV3; XKC645,655,XKU64#,65#..DCRTK..IV3201705

75471BPLATE, REAR BODY NAME, NO.1

main75471-25030iXKU600..IV5201107-201705

main75471-25060iXKC605,645,655,XKU60#,64#,65#..CBU,IV3; XKU600..IV5201107-201209

main75471-37100iXKC605,645,655,XKU60#,64#,65#..DCRTK; XKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

75472APLATE, REAR BODY NAME, NO.2

main75472-95404iXKC605,XKU605,655..20T201905

main75472-37030supersedes 75472-92801iXKU650..T3..30T..CBU201107-201505

75473APLATE, REAR BODY NAME, NO.2

main75473-37030iXKU650..30T..IV3;XKC605,XKU605,655..(T3,T4)..DCRTK..IV3; XKU655..DCRTK..IV3;XKU600,650..(T3,T4)..30T..IV3;XKC605,645,655,XKU605,64#..T4..DCRTK..IV3201705

75473BPLATE, REAR BODY NAME, NO.3

main75316-37010iXKC605,XKU605,645,655201905

13 parts on this diagram · 1 diagram in section
