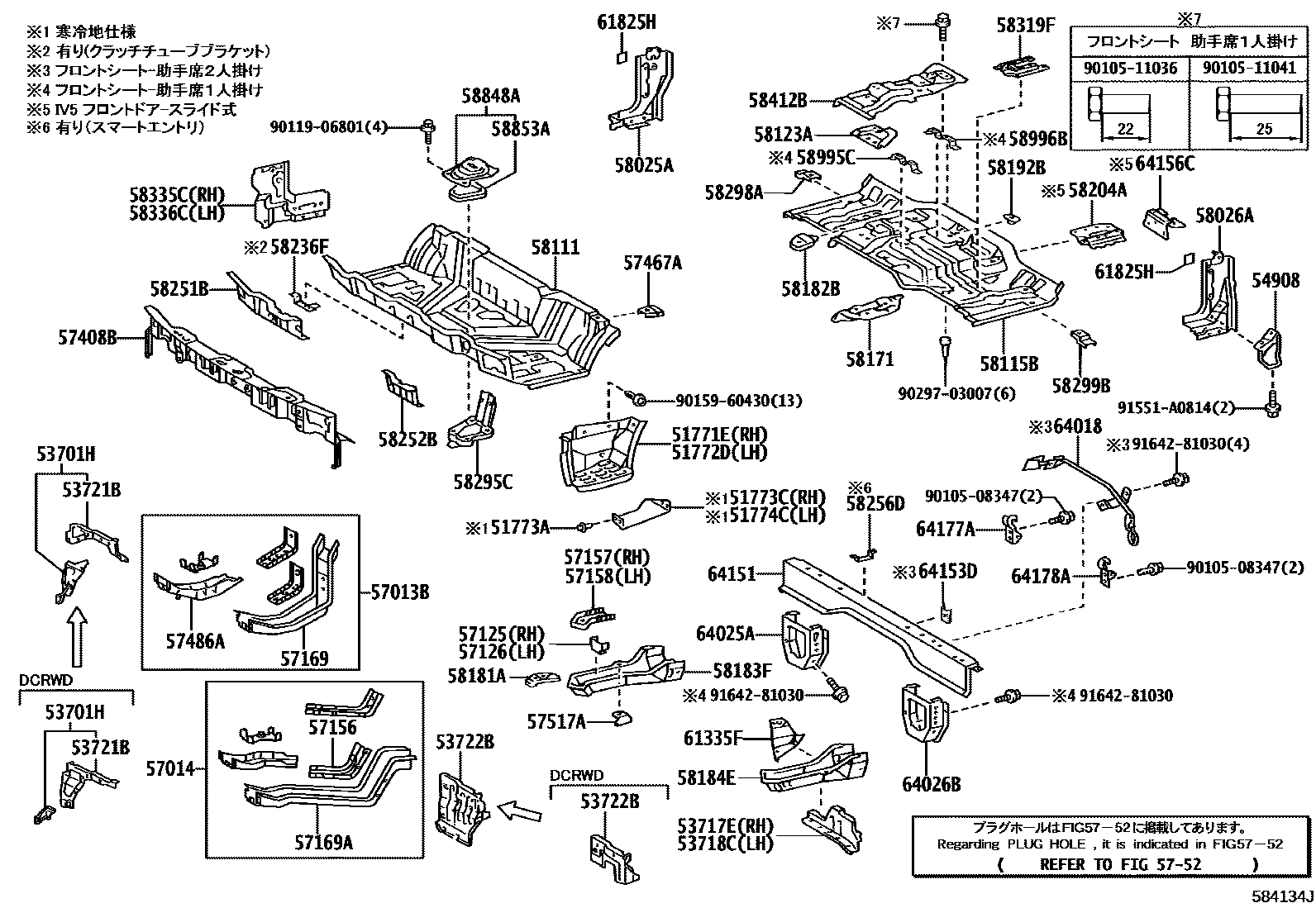

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1������ & �������� 0002 1��������� & ���������� 0003 1��������� & ����������

51771EPLATE, STEP, RH

main51771-37181iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main51771-37330iXKC605,XKU605,645,655201905

51772DPLATE, STEP, LH

main51084-37060iXKC605,XKU605,645,655201905

main51772-37131iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

51773ACLIP, STEP PLATE COVER

main90467-06133-C0×8iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

51773CCOVER, STEP PLATE, RH

main51773-37020iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main51773-37100iXKC605,XKU605,645,655201905-201911

main51773-37101iXKC605,XKU605,645,655201912

51774CCOVER, STEP PLATE, LH

main51774-37010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main51774-37050iXKC605,XKU605,645,655201905-201911

main51774-37051iXKC605,XKU605,645,655201912

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37022iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

main53701-37070iXKC605,XKU605,645,655201905

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-37130iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37110iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37052iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main53721-37130iXKC605,XKU605,645,655201905

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37032iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

main53722-37110iXKC605,XKU605,645,655201905

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37240iXKC605,XKU605,645,655201905

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-37021iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-37081iXKC605,645,655,XKU60#,64#,65#201107-201705

main57169-37082iXKC605,XKU605,645,655202004

57169AMEMBER, FRONT FLOOR, FRONT LH

main57179-37070iXKC605,645,655,XKU60#,64#,65#..DCRTK201705-201811

main57179-37071iXKC605,XKU605,645,655201905

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37352iXKC605,645,655,XKU60#,64#,65#201107-201408

main57408-37560iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201408-201505

main57408-37580iXKC605,XKU605,645,655201905

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37011iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-37050iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-37011iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

5752HOLE PLUG

→ Go to FIG 57-52

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37070iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58111PAN, FRONT FLOOR

main58111-37533iXKC605,645,655,XKU60#,64#,65#201107-201407

main58111-37534iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201408-201505

58115BPANEL, FRONT FLOOR, REAR

main58115-37017iXKU600..IV5201107-201301

main58115-37340iXKU600..IV5; XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4201301-201609

main58115-37341iXKC605,645,655,XKU60#,64#,65#..CBU,IV3; XKU600..IV5201610-201705

main58115-37018iXKC605,XKU605,645,655..CBU,IV3201905

main58115-37027supersedes 58115-37017iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main58115-37028iXKC605,XKU605,645,655..CBU,IV3201905

main58115-37350supersedes 58115-37018iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4201301-201609

main58115-37351supersedes 58115-37018iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-37010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main58171-37010supersedes 58107-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58181ARETAINER, SEAT RAIL, FRONT

main58181-37030iXKC605,XKU605,645,655201905

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37062iXKC605,645,655,XKU60#,64#,65#201107-201301

main58183-37063iXKC605,XKU605,645,655201905

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-37073iXKC605,645,655,XKU60#,64#,65#201107-201301

main58184-37074iXKC605,645,655,XKU60#,64#,65#..DCRTK201705-201812

main58184-37075iXKC605,645,655,XKU60#,64#,65#..DCRTK201901

58192BPLATE, FRONT FLOOR, REAR

main58192-37020×3iXKU600..IV5201107-201301

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-37010iXKU600..IV5201705

58236FBRACKET, CLUTCH TUBE

main58236-95J01iXKU650..T3..CBU201107-201505

58251BBRACE, FLOOR PANEL, FRONT

main58251-37032iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37031iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58256DBRACKET, FRONT FLOOR HARNESS

main58256-37010iXKC605,645,655,XKU60#,64#,65#; XKC605,645,655,XKU60#,64#,65#..CBU,IV3201605-201705

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58319FBRACKET, REAR FLOOR SIDE PANEL

main58319-37110iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37041iXKC605,645,655,XKU60#,64#,65#201107-201705

main58335-37080iXKC605,XKU605,645,655201907

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37031iXKC605,645,655,XKU60#,64#,65#201107-201705

main58336-37032iXKC605,645,655,XKU60#,64#,65#..DCRTK201904

58412BREINFORCEMENT, ENGINE SUB COVER

main58412-37031iXKC605,645,655,XKU60#,64#,65#201107-201212

main58412-37032iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201301-201505

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

58853APACKING, SHIFT LEVER HOLE

main58853-37020iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201301-201505

58996BBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

61335FRETAINER, SEAT BELT ANCHOR

main61335-37010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main57405-37070iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010×2iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

64018BAR SUB-ASSY, BODY

main64018-37071iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37011iXKC605,645,655,XKU60#,64#,65#201107-201211

main64171-37012iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201212-201505

main64171-37013iXKC605,645,655,XKU60#,64#,65#201605-201705

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64172-37022iXKC605,645,655,XKU60#,64#,65#201107-201211

main64172-37023iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201212-201705

main64026-37100iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

64151FRAME, BACK

main64151-37432iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

64153DREINFORCEMENT, BACK FRAME

main52123-32040iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

64156CPLATE, BACK FRAME, LH

main64156-37060iXKU605..IV5201905

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37031iXKC605,XKU605,645,655201905

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37031iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

9010508347

main90105-08347

9010511036

main90105-11036

9010511041

main90105-11041

9011906801

main90119-06801

9015960430

main90159-60430

9029703007

main90297-03007

91551A0814

main91551-A0814

9164281030

main91642-81030

70 parts on this diagram · 3 diagrams in section
