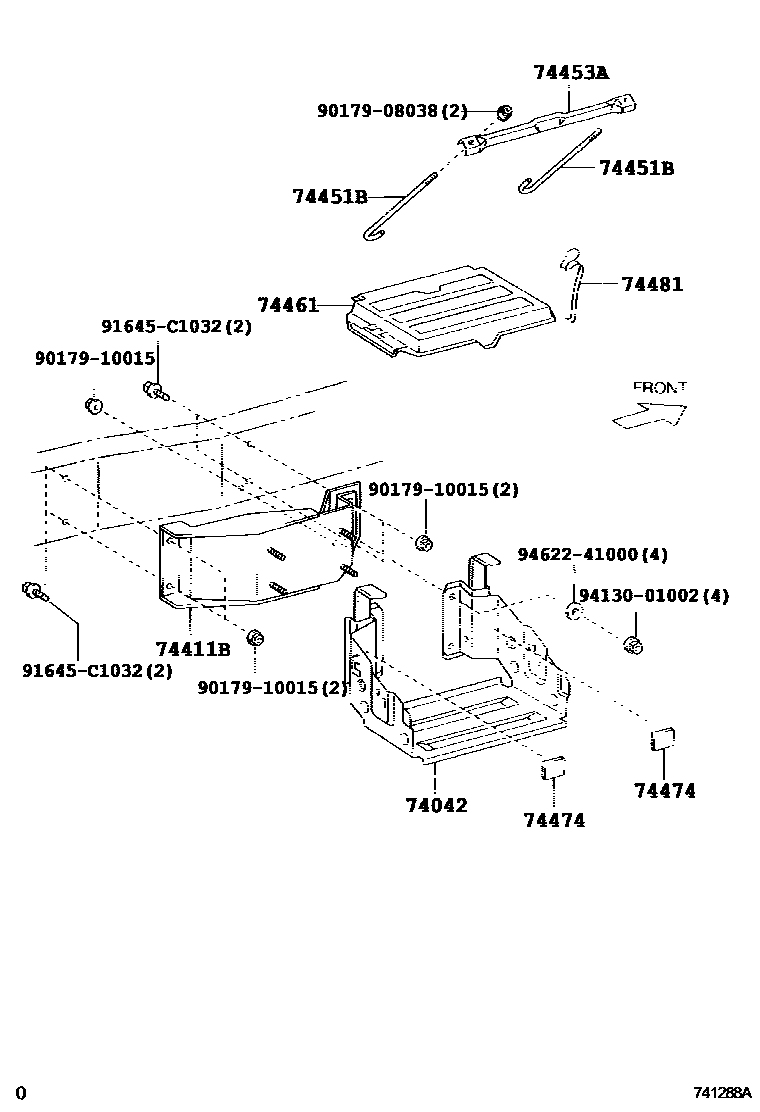

BATTERY CARRIER

0001 1 0002 1 0003 1

74042BRACKET SUB-ASSY, BATTERY

main74042-37050iXKU304,344200310-200610

74411BBRACKET, BATTERY, FRONT

main74401-37110iXKU304,344200310-200610

main74401-89201iXKU308,344,508..6FC200610-200908

main74401-89205iXKU30#,344,508..6FC200908

74451BBOLT, BATTERY CLAMP

main74451-37021×2iXKU304,344200310-200610

74453ABAR, BATTERY SET PLATE

main74453-36070iXKU304,344200310-200610

74461COVER, BATTERY

main74461-37030iXKU304,344200310-200610

74474PAD, BATTERY

main74475-36040×2iXKU304,344200310-200610

74481CLAMP, BATTERY HOLD DOWN

main74481-36030×2iXKU304,344200310-200610

9017908038

main90179-08038

9017910015

main90179-10015

91645C1032

main91645-C1032

9413001002

main94130-01002

9462241000

main94622-41000

12 parts on this diagram · 3 diagrams in section
