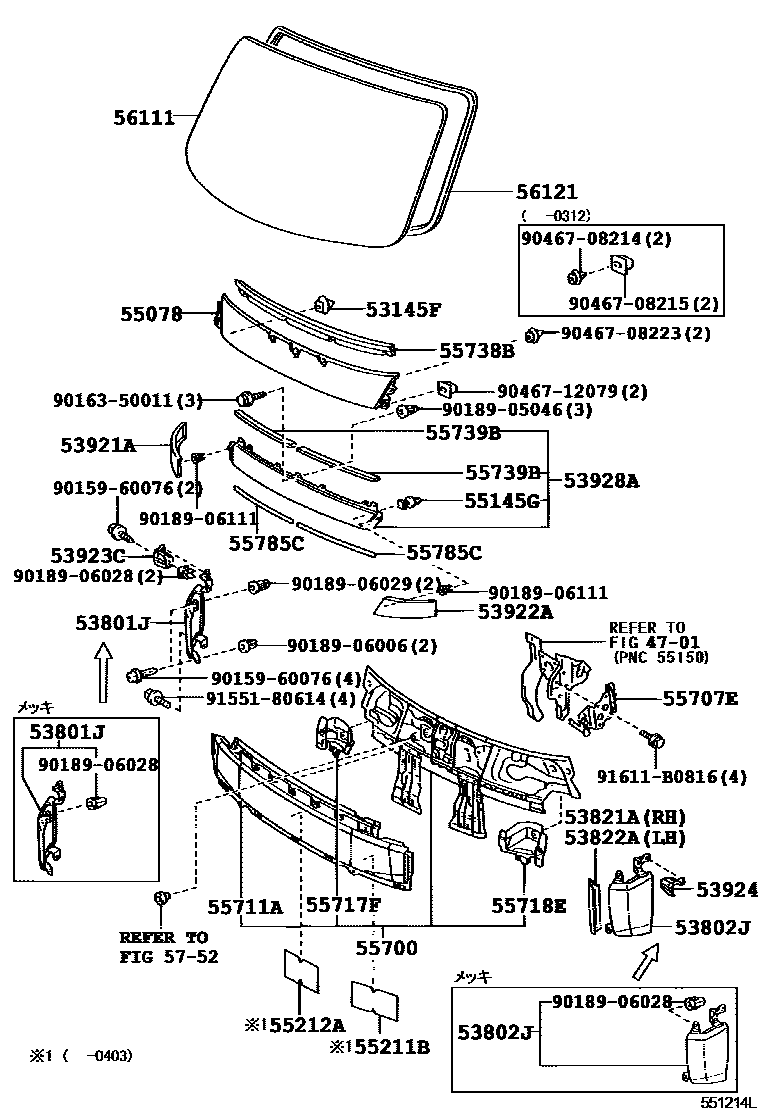

FRONT PANEL & WINDSHIELD GLASS

0001 1���������� ����=�������������0002 1���������� ����=��������� 0003 1TOYOTA 0004 1HINO 0005 1���������

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208×4iXKU304,344200310-200610

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37021iXKU30#,338,34#,508200610

main53801-37041iXKU30#,338,34#,508200610

main53801-37061iXKU304,344200310-200610

main53801-37071iXKU304,344200310-200610

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37021iXKU30#,338,34#,508200610

main53802-37041iXKU30#,338,34#,508200610

main53802-37061iXKU304,344200310-200610

main53802-37071iXKU304,344200310-200610

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37070iXKU304,344200310-200610

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37070iXKU304,344200310-200610

53921APANEL, FRONT VALANCE, RH

main53921-37010iXKU308,344,508..6FC200610-200908

main53921-37011iXKU30#,338,34#,508200909

53922APANEL, FRONT VALANCE, LH

main53922-37010iXKU304,344200310-200610

main53922-37011iXKU30#,338,34#,508200909

53923CSUPPORT, FRONT SIDE GARNISH, RH

main53923-25010iXKU304,344200310-200610

53924PLATE, NOISE SHUTTER SUPPORT, NO.2

main53924-25010iXKU304,344200310-200610

53928AGARNISH, FRONT PANEL, CENTER

main53928-37030iXKU304,344200310-200404

main53928-37031iXKU304,344200405-200610

55078COVER SUB-ASSY, FRONT PANEL

main55078-37070iXKU304,344200310-200610

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010×7iXKU30#,338,34#,508200610

55211BSILENCER, FRONT PANEL

main55211-37030×2iXKU304,344200310-200403

55212ASILENCER, FRONT PANEL, LOWER

main55212-37010iXKU304,344200310-200403

55700PANEL ASSY, FRONT

main55700-37111iXKU304,344200310-200610

main55700-37310iXKU30#,338,34#,508200801

55707EBRACKET SUB-ASSY, RELAY MOUNTING

main55707-37030iXKU30#,344,508..6FC200801

55711APANEL, FRONT, LOWER

main55711-37050iXKU304,344200310-200504

main55711-37051iXKU30#,338,34#,508200610

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iXKU304,344200310-200610

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iXKU304,344200310-200610

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37050iXKU304,344200310-200312

main55738-37051iXKU304,344200312-200610

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37070×2iXKU344..20T200310-200610

55785CPAD, FRONT PANEL COVER

main55785-37020×2iXKU30#,338,34#,508200610

56111GLASS, WINDSHIELD

main56101-89101iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main56111-37120iXKU304,344200310-200610

56121WEATHERSTRIP, WINDSHIELD

main56121-25040iXKU30#,338,34#,508200708

main56121-37030iXKU304,344200310-200312

main56121-37031iXKU304;XKU344..30T200312-200610

main56121-37040iXKU304;XKU344..30T200310-200610

5752HOLE PLUG

→ Go to FIG 57-52

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9018906111

main90189-06111

9046708214

main90467-08214

9046708215

main90467-08215

9046708223

main90467-08223

9046712079

main90467-12079

9155180614

main91551-80614

91611B0816

main91611-B0816

39 parts on this diagram · 5 diagrams in section
