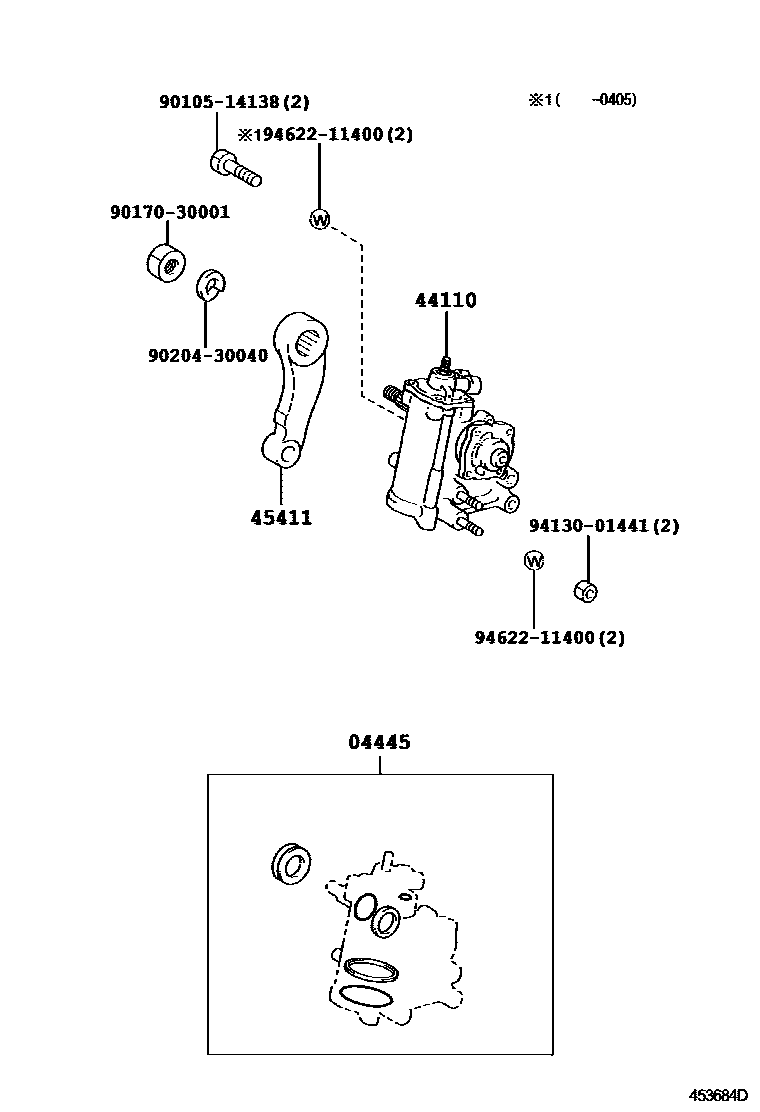

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-37060iXKU304,344200310-200610

44110GEAR ASSY, POWER STEERING

main44110-37110iXKU304,344200310-200610

main44110-37221iXKU304,344200610-201008

main44110-37222iXKU304,344201009

45411ARM, PITMAN

main45411-37130iXKU304,344200310-200610

main45411-37261iXKU304,344200610

9010514138

main90105-14138

9017030001

main90170-30001

9020430040

main90204-30040

9413001441

main94130-01441

9462211400

main94622-11400

8 parts on this diagram · 6 diagrams in section
