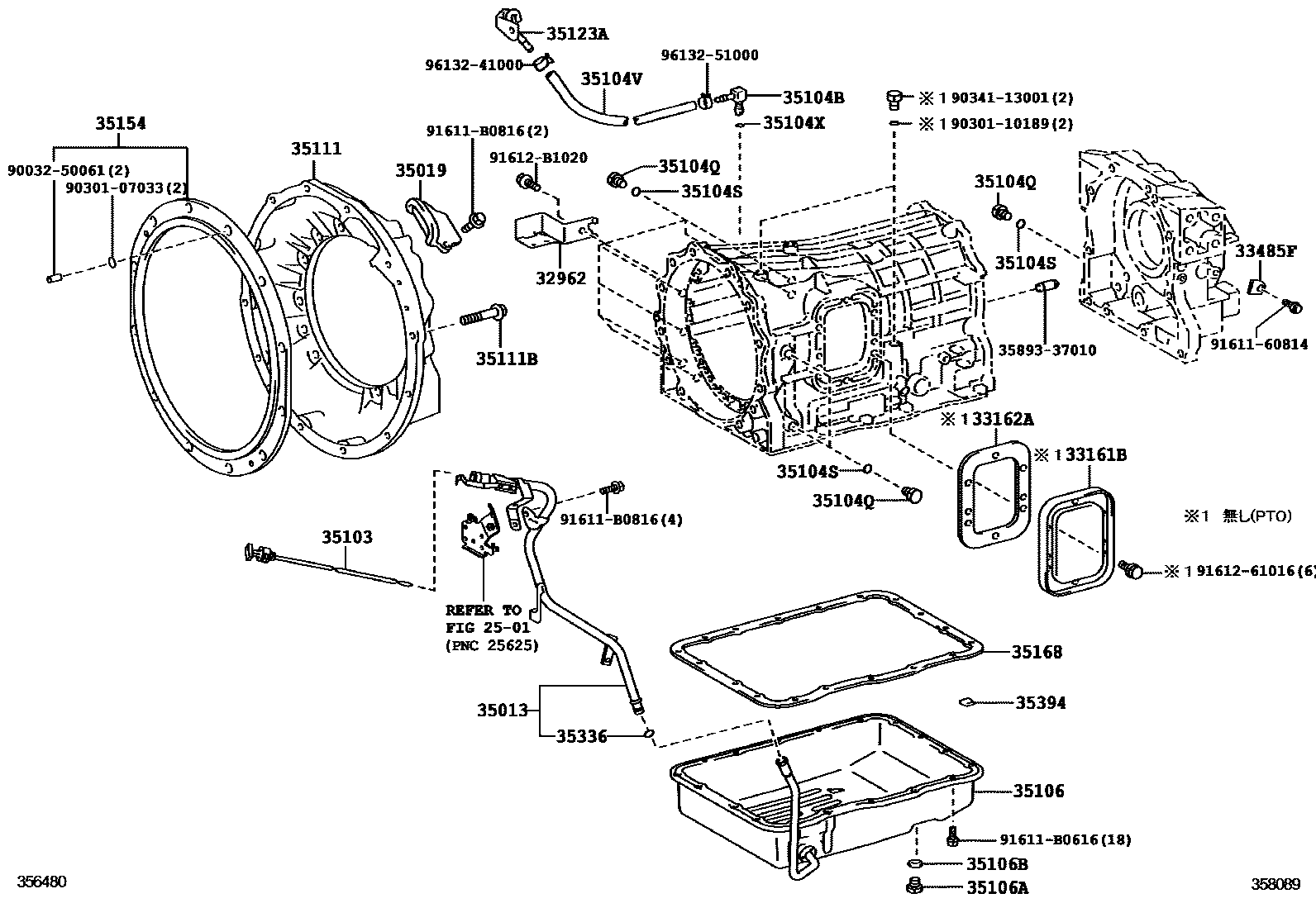

TRANSMISSION CASE & OIL PAN (ATM)

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

32962INSULATOR, OIL TEMPERATURE SWITCH HEAT

main32962-37021iXKU30#,344,508..6FC200801

33161BCOVER, TRANSMISSION POWER TAKE-OFF

main33161-37020iXKU308,344,508..6FC200801

33162AGASKET, TRANSMISSION POWER TAKE-OFF

main33162-37020iXKU308,344,508..6FC200801

33485FPLATE, SPEEDMETER LOCK

main33485-30020iXKU30#,344,508..6FC200801-201106

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-37160iXKU30#,344,508..6FC200801

35019COVER SUB-ASSY, TRANSMISSION CASE DUST

main35019-37050iXKU30#,344,508..6FC200801

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-37160iXKU30#,344,508..6FC200801

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iXKU30#,344,508..6FC200801-201106

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-13001×9iXKU30#,344,508..6FC200801-201106

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-10189×9iXKU30#,344,508..6FC200801-201106

35104VHOSE (FOR BREATHER PLUG)

main90445-11149iXKU308,344,508..6FC200801-200810

main90445-11160iXKU30#,344,508..6FC200810-201106

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iXKU30#,344,508..6FC200801-201106

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-37090iXKU30#,344,508..6FC200801-201106

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iXKU30#,344,508..6FC200801-201106

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iXKU30#,344,508..6FC200801-201106

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-37020iXKU30#,344,508..6FC200801-201106

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10899×12iXKU30#,344,508..6FC200801

35123ASKIRT, TRANSMISSION BREATHER

main35123-37051iXKU30#,344,508..6FC200801

35154ADAPTER, TRANSMISSION CASE

main35121-37010iXKU30#,344,508..6FC200801

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-37010iXKU30#,344,508..6FC200801-201106

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iXKU30#,344,508..6FC200801

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iXKU30#,344,508..6FC200801-201106

3589337010GASKET, CENTER SUPPORT APPLY

main35893-37010

9003250061

main90032-50061

9030107033

main90301-07033

9030110189

main90301-10189

9034113001

main90341-13001

9161160814

main91611-60814

91611B0616

main91611-B0616

91611B0816

main91611-B0816

9161261016

main91612-61016

91612B1020

main91612-B1020

9613241000

main96132-41000

9613251000

main96132-51000

35 parts on this diagram · 1 diagram in section
