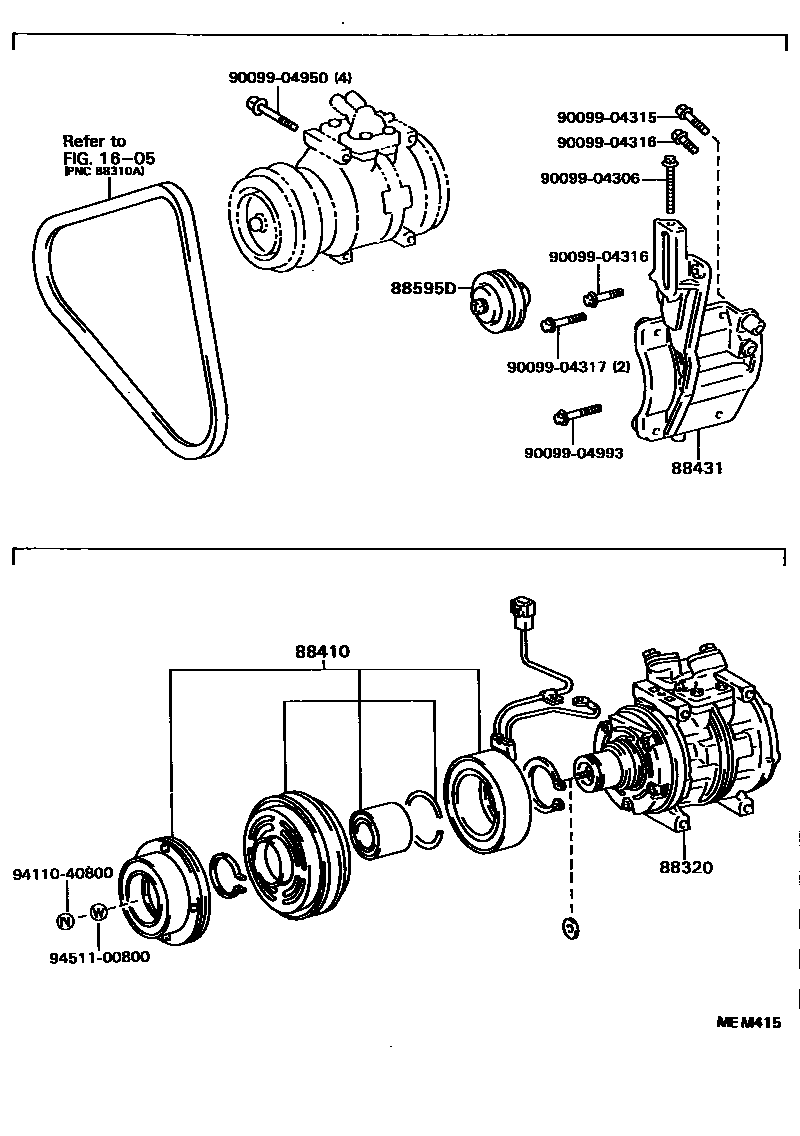

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

88320COMPRESSOR ASSY, COOLER

main88320-36201iWU75,85,9#198808-199109

main88320-36290iYU6#,70198808-199309

main88320-36410iYU60199309-199311

main88320-36430iWU75,85,9#199309-199505

88410CLUTCH ASSY, MAGNET

main88410-22080iYU6#,70..CBR198808-199008

main88410-36170iWU75,85,9#198808-199109

main88410-36390iYU60199311-199505

main88410-36410iWU75,85,9#199309-199505

main88410-60140iYU60..LPG198811-199008

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-28070iYU60199311-199505

main88431-36200iWU75,85,9#198808-199109

88595DPULLEY ASSY, IDLE

main88440-12160iWU75,85,9#198808-199109

main88440-35020iYU6#,70198808-199311

9009904306

main90099-04306

9009904315

main90099-04315

9009904316

main90099-04316

9009904317

main90099-04317

9009904950

main90099-04950

9009904993

main90099-04993

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 2 diagrams in section
