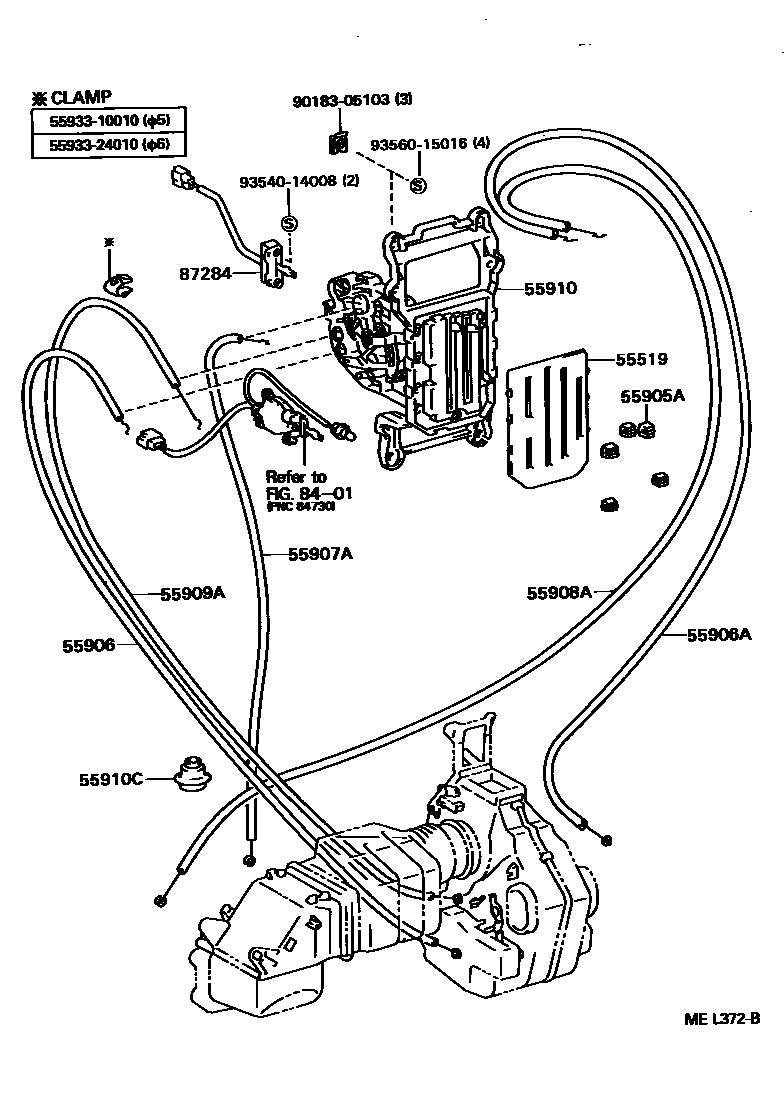

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55519PLATE, HEATER CONTROL NAME

main55519-95405iWU75,85,9#,YU6#,70198808-199311

55905AKNOB, HEATER CONTROL

main55905-10110×3iWU75,85,9#,YU60199311-199505

main55905-95707iWU75,85,9#199109-199505

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-36010iYU60199311-199505

main55905-36020iWU75,85,9#199110-199505

main55905-95401iYU6#,70198808-199110

main55905-95402iWU75,85,9#198808-199110

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36030iYU60199311-199505

main55906-36040iWU75,85,9#199110-199505

main55906-95404iYU6#,70198808-199110

main55906-95405iWU75,85,9#198808-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36010iYU6#,70199110-199311

main55907-36020iWU75,85,9#199110-199505

main55907-95404iYU6#,70198808-199110

main55907-95405iWU75,85,9#198808-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iYU6#,70198808-199311

main55908-95403iWU75,85,9#198808-199505

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iYU6#,70198808-199311

main55909-95405iWU75,85,9#198808-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iWU75,85,9#,YU6#,70199110-199311

main55910-95407iWU75,85,9#,YU6#,70198808-199110

main55910-95408iWU75,85,9#198808-199109

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iWU75,85,9#198808-199505

main90480-24215iYU6#,70198808-199311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iWU75,85,9#; YU6#,70198808-199109

5593310010GUIDE, LEVER, NO.2

main55933-10010

5593324010GUIDE, LEVER, NO.2

main55933-24010

9018305103

main90183-05103

9354014008

main93540-14008

9356015016

main93560-15016

16 parts on this diagram · 4 diagrams in section
