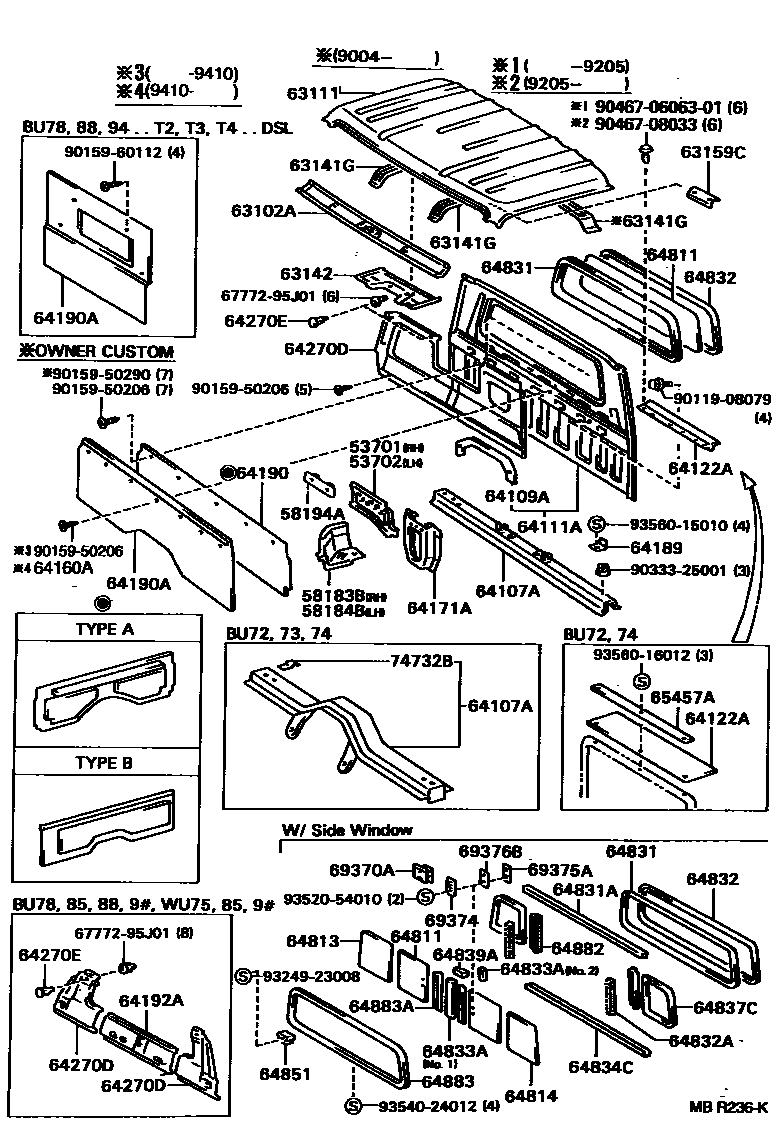

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95407iYU6#..20T198808-199505

main53701-95408iYU60..T3..WT..CBR..IV3199008-199011

main53703-92600iYU70198808-199309

main53717-95410iWU90;WU75,85,95..DM1,T3199011-199505

main53717-95411iYU60..175199011-199505

main53717-95413iYU60..175198808-199011

main53717-95414iWU75,85,9#198808-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95412iYU6#..20T198808-199505

main53702-95413iYU6#..20T198808-199008

main53704-92601iYU70198808-199309

main53718-95411iWU90;WU75,85,95..DM1,T3199011-199505

main53718-95412iYU60..175199011-199505

main53718-95414iYU60..175198808-199011

main53718-95415iWU75,85,9#198808-199008

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95404iYU6#..20T198808-199011

main58183-95405iYU60..175199011-199505

main58183-95406iYU60,70..SRF,TW1,TW2198808-199007

main58183-95407iWU75,85,9#,YU6#..03S198808-199008

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95403iYU6#..20T198808-199011

main58184-95404iYU60..175199011-199505

main58184-95405iYU60,70..SRF,TW1,TW2198808-199011

main58184-95406iWU75,85,9#,YU6#..03S198808-199008

58194ARETAINER, ENGINE COVER HINGE

main58194-95400iWU75,85,9#,YU6#,70198912-199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95403iWU75,85,9#198808-199505

main63132-95418iYU6#,70198808-199505

main63132-95420iYU6#198808-199505

main63132-95423iWU75,85,9#198808-199505

63111PANEL, ROOF

main63111-37010iYU6#..20T199004-199505

main63111-37020iYU6#..20T199004-199505

main63111-95409iYU6#..20T198808-199004

main63111-95410iYU6#..20T198808-199004

main63111-95412iWU75,85,9#198808-199505

main63111-95413iWU75,85,9#198910-199004

main63111-95416iYU60..175198808-199505

main63111-95417iYU60..175198808-199505

main63113-92605×2iYU70198808-199309

CENTER

main63115-92605iYU70198808-199309

REAR

main63115-92612iYU70198808-199309

FRONT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iYU6#..20T199004-199505

main63141-95403×2iWU75,85,9#198808-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iYU6#..20T198808-199505

63159CSPACER, ROOF REINFORCEMENT

main63159-95400iWU75,85,9#198910-199505

64107AFRAME SUB-ASSY, BACK

main64107-37060iYU70199105-199309

main64107-37100iYU60..20T199309-199505

main64107-37170iWU75,85,9#199309-199505

main64107-37210iYU60..20T..CBR199309-199505

main64107-92615iYU70198808-199105

main64107-95422iYU60..175198808-199107

main64107-95425iYU6#..20T198808-199309

main64107-95428iWU75,85,9#198910-199309

main64107-95433iWU75,9#198808-198910

64109AFRAME SUB-ASSY, BACK, LOWER

64111APANEL, BACK

main64100-37030iWU85,9#199008-199505

main64100-37110iYU60..T3..WT..CBR..IV3199210-199505

main64100-37180iYU60..20T..CBR199309-199505

main64100-37230iWU85,9#199309-199505

main64100-37240iWU85,93; WU90,95199309-199505

main64100-95448iYU6#..20T198808-199505

main64100-95450iYU60..175198808-199505

main64100-95458iWU75,85,9#198808-199505

main64100-95459iWU75,85,9#198808-199505

main64100-95460iWU85,9#199008-199505

64122ABAFFLE, DUST REAR BODY

main64122-37030iYU60..T1199210-199309

main64122-37040iYU60..T2,T3199210-199505

main64122-37050iWU75,85,9#199210-199505

main64122-37060iYU60..175199210-199505

main64122-95405iYU60..T2,T3198808-199210

main64122-95406iWU75,85,9#198808-199210

main64122-95407iYU60..T1198808-199210

main64122-95A06iYU60..175198808-199210

main65455-93100iYU61198808-199210

main65455-93101iYU61..CBU199210-199309

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0×7iWU75,85,9#; YU60..20T199410-199505

BLACK,TRIM1#

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25020×2iYU70199105-199107

main64025-95400×2iWU75,85,9#; YU6#..20T198808-199505

main64026-95400iWU75,85,9#198808-199505

main64171-95410×2iYU60..175199105-199107

64189CLAMP, BACK PANEL SILENCER

main64189-95400×2iWU75,85,9#,YU6#..03S198808-199505

64190SILENCER ASSY, BACK PANEL

main64190-37010-B0iWU85,9#199309-199505

main64190-37020iYU60..20T..CBR199309-199505

main64190-95400iYU6#..20T198808-199505

main64190-95405-03iWU75,85,9#199109-199505

main64190-95405-06iWU75,85,9#..DYN198808-199109

main64190-95406iWU75,85,9#198808-199505

64190ASILENCER ASSY, BACK PANEL

64192ABOARD, BACK PANEL SILENCER, UPPER

main64192-95402-03iWU75,85,9#..TOY198808-199109

GRAY,TRIM8#

main64192-95402-06iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

64270DTRIM ASSY, BACK PANEL

main64270-95401-03iWU75,85,9#..TOY198808-199109

main64270-95401-06iWU75,85,9#..DYN198808-199109

main64270-95402-03iWU75,85,9#199109-199505

main64270-95402-06iWU75,85,9#..DYN198808-199109

64270ECLIP

main90467-07054-13×8iWU75,85,9#..TOY198808-199109

GRAY,TRIM8#

main90467-07054-16×8iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

64811GLASS, BACK WINDOW

main64811-37010iYU6#..20T199109-199309

main64811-37030iWU75,85,9#199109-199309

main64811-37050×2iWU75,85,9#; YU60..175199109-199309

main64811-37060×2iWU75,85,9#199109-199505

main64811-95409iYU60..20T199309-199505

main64811-95410iWU75,85,9#199309-199505

main64812-95402×2iWU75,85,9#; YU60..175199309-199505

64813GLASS, BACK WINDOW CORNER, RH

main64814-37010iWU75,85,9#; YU60..175199109-199309

main64814-37020iWU75,85,9#199109-199505

main64814-95400iWU75,85,9#; YU60..175199309-199505

64814GLASS, BACK WINDOW CORNER, LH

main64814-37010iWU75,85,9#; YU60..175199109-199309

main64814-37020iWU75,85,9#199109-199505

main64814-95400iWU75,85,9#; YU60..175198808-199109

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406iWU75,85,9#,YU6#198808-199505

64831AWEATHERSTRIP, BACK WINDOW GLASS, UPPER

main64831-95404iYU60..175198808-199505

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iYU6#..20T198808-199505

main64832-95013iYU60..175;WU75,85,9#198808-199505

64832AWEATHERSTRIP, BACK WINDOW VERTICAL

main64832-95400×2iWU75,85,9#; YU60..175198808-199012

main64834-37010×2iWU75,85,9#199012-199109

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-95400iWU75,85,9#198808-199109

main64833-95401iYU60..175198808-199505

64834CWEATHERSTRIP, BACK WINDOW GLASS, LOWER

main64834-95400iWU75,85,9#199109-199505

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-95400×2iYU60..175198808-199505

64839APACKING, BACK WINDOW

main64839-89101×2iWU75,85,9#198808-199109

64851STOP, BACK WINDOW SLIDE GLASS

main64851-95400iWU75,85,9#198808-199109

64882FRAME, BACK WINDOW VERTICAL

main64882-95400×2iWU75,85,9#198808-199109

64883FRAME, BACK WINDOW

main64881-95400iWU75,85,9#198808-199109

64883ACHANNEL, BACK WINDOW SLIDE

main64883-95400×2iYU60..175198808-199505

65457APLATE, BAFFLE DUST REAR BODY

69370ALOCK ASSY, BACK WINDOW

main69370-89101iYU60..175198808-199505

69374CATCH, BACK WINDOW LOCK

main69374-89101iWU75,85,9#198808-199109

69375ARETAINER, BACK WINDOW LOCK

main69375-89102×2iYU60..175198808-199505

69376BPACKING, BACK WINDOW LOCK

main69376-89101×2iYU60..175198808-199505

74732BBRACKET, TOOL BAG SET BAND

main74732-95600×2iYU6#..20T199107-199505

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9011908079

main90119-08079

9015950206

main90159-50206

9015950290

main90159-50290

9015960112

main90159-60112

9033325001

main90333-25001

904670606301

main90467-0606301

9046708033

main90467-08033

9324923008

main93249-23008

9352054010

main93520-54010

9354024012

main93540-24012

9356015010

main93560-15010

9356016012

main93560-16012

56 parts on this diagram · 4 diagrams in section
