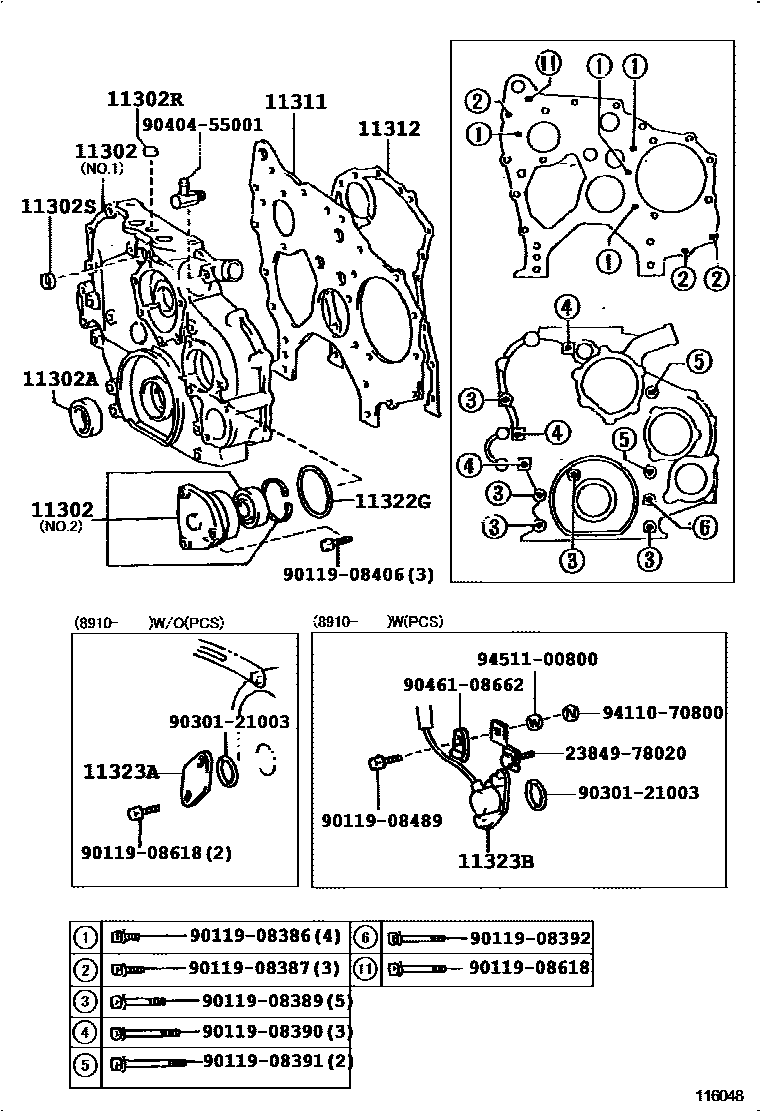

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-78010i1W..WU75,9#198808-198910

main11302-78020i1W..WU75,85,9#198910-199505

main11321-71010i3Y#..YU6#,70198808-199505

main11321-78020i1W..WU75,9#198808-198910

main11321-78040i1W..WU75,85,9#198910-199505

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i3Y#..YU6#,70198808-199505

main90311-58005i1W..WU75,85,9#198808-199505

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90331-22002i1W..WU75,85,9#198808-199505

11302SPLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)

main90331-32002i1W..WU75,85,9#198808-199505

11311PLATE, FRONT END

main11311-78010i1W..WU75,85,9#198808-199505

11312GASKET, FRONT END PLATE

main11312-78010i1W..WU75,85,9#198808-199012

main11312-78011i1W..WU75,85,9#199012-199505

11322GRING, O(FOR TIMING GEAR COVER)

main90301-81003i1W..WU75,85,9#198808-199505

11323ARETAINER, TIMING GEAR COVER OIL

main11323-78020i1W..WU85,93198910-199505

11323BDETECTOR ASSY, REVOLUTION

main83180-89102i1W..WU75,90,95198910-199505

2384978020SUPPORT, FUEL

main23849-78020

9011908386

main90119-08386

9011908387

main90119-08387

9011908389

main90119-08389

9011908390

main90119-08390

9011908391

main90119-08391

9011908392

main90119-08392

9011908406

main90119-08406

9011908489

main90119-08489

9011908618

main90119-08618

9030121003

main90301-21003

9040455001

main90404-55001

9046108662

main90461-08662

9411070800

main94110-70800

9451100800

main94511-00800

24 parts on this diagram · 3 diagrams in section
