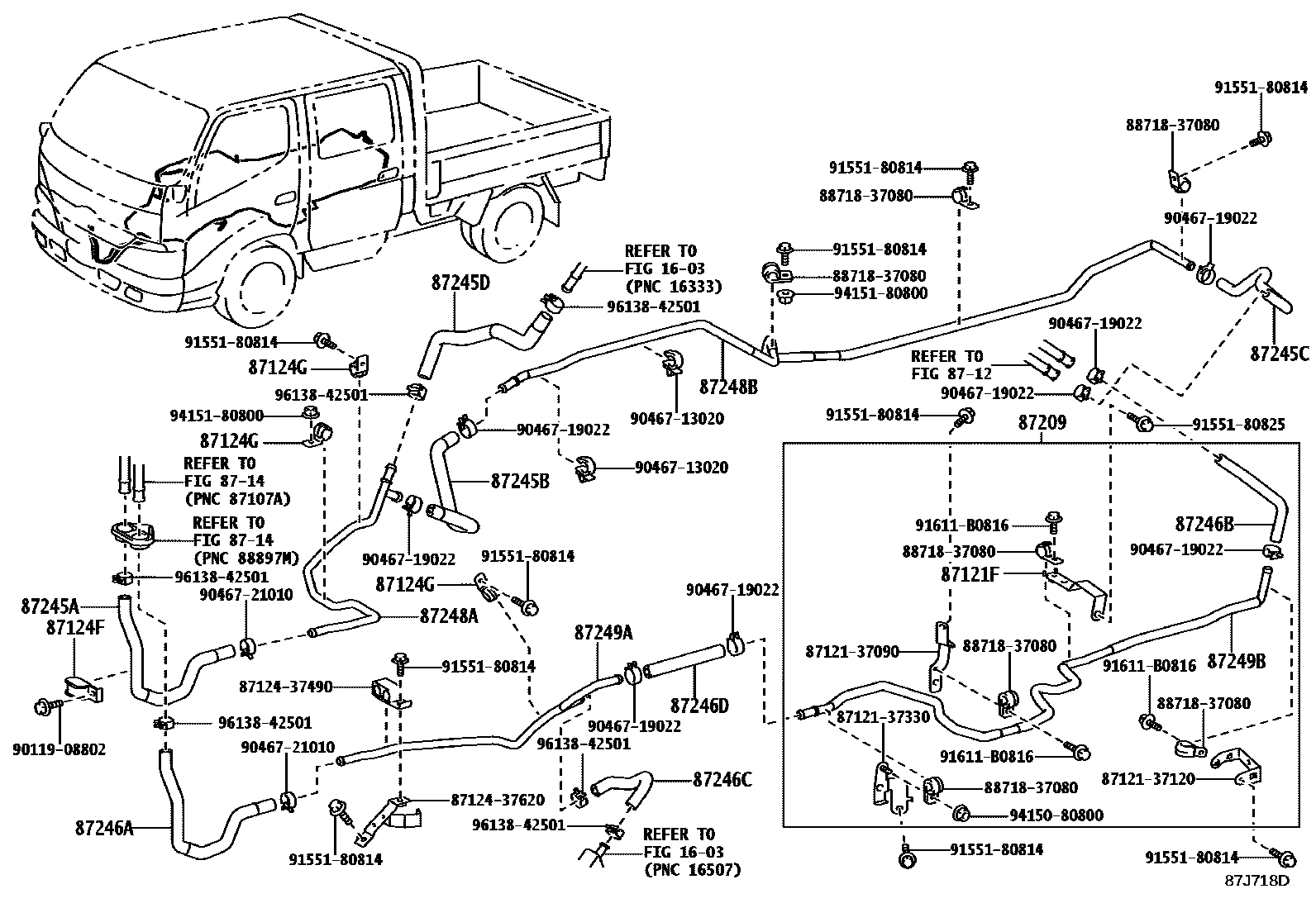

Toyota 652150 — HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
87121FBRACKET, HEATER
87124FCLAMP, HEATER HOSE, NO.1
87124GCLAMP, HEATER HOSE, NO.2
8714HEATING & AIR CONDITIONING - COOLER UNIT
87209HOSE SUB-ASSY, WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87245CHOSE, HEATER WATER ,INLET C
87245DHOSE, HEATER WATER, INLET D
87246HOSE, HEATER WATER, OUTLET
87246AHOSE, HEATER WATER, OUTLET A
87246BHOSE, HEATER WATER, OUTLET B
87246CHOSE, HEATER WATER, OUTLET C
87246DHOSE, HEATER WATER, OUTLET D
87248APIPE, HEATER WATER INLET, A
87248BPIPE, HEATER WATER INLET, B
87249APIPE, HEATER WATER OUTLET, A
87249BPIPE, HEATER WATER OUTLET, B
8712137090BRACKET, HEATER, FRONT RH
8712137120BRACKET, HEATER, FRONT RH
8712137330BRACKET, HEATER, FRONT RH
8712437490CLAMP, HEATER
8712437620CLAMP, HEATER
8871837080PIPE, COOLER REFRIGERANT SUCTION, NO.2
9011908802
9046713020
9046719022
9046721010
9155180814
9155180825
91611B0816
9415080800
9415180800
9613842501
36 parts on this diagram · 6 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota 652150
This section contains 55 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota 652150. Key components include: RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER, BRACKET, HEATER, CLAMP, HEATER HOSE, NO.1, CLAMP, HEATER HOSE, NO.2.
