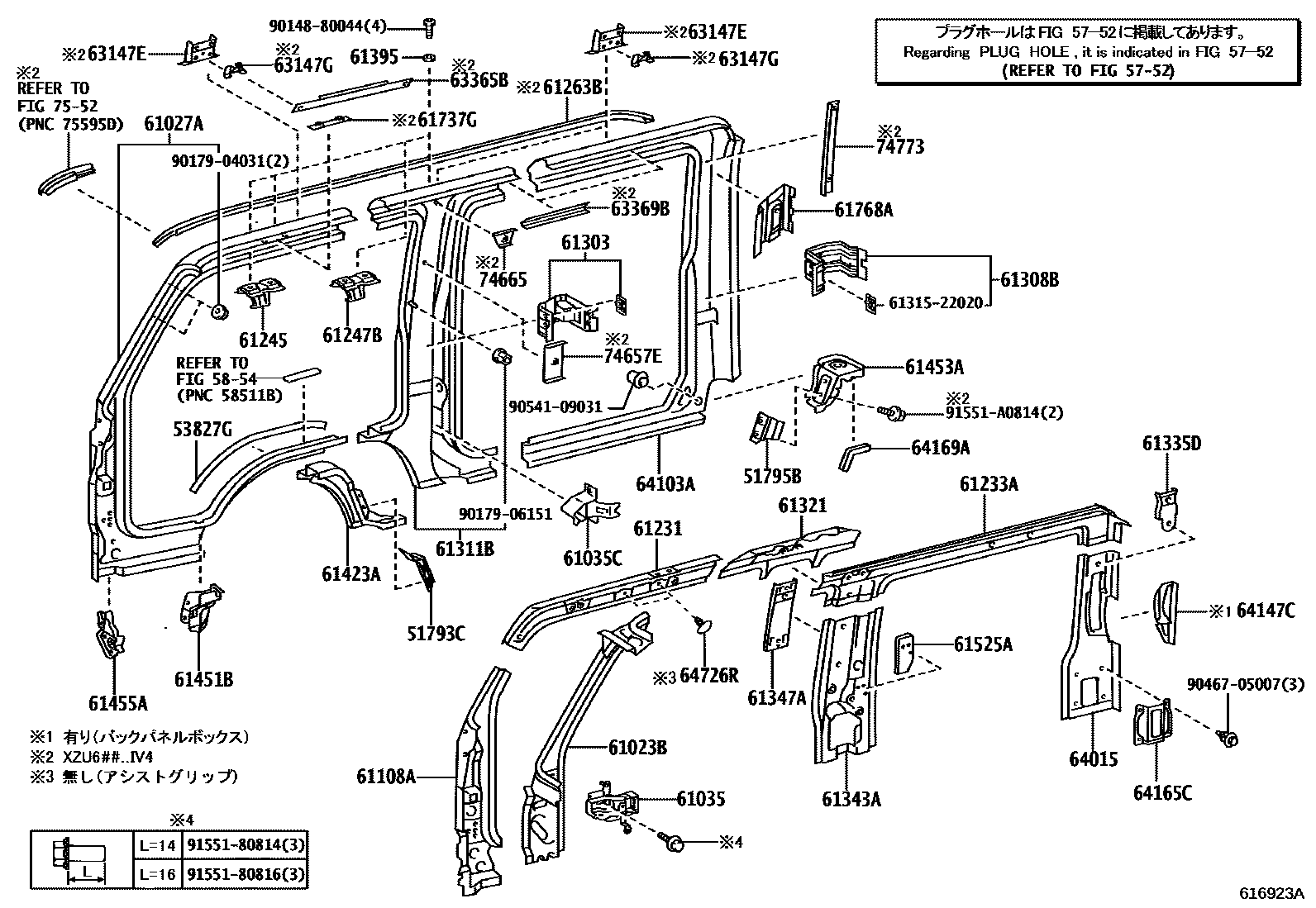

SIDE MEMBER

0001 1RH 0002 1LH 0003 1��������������=��������������0004 1��������������=���������

51793CBRACKET, SIDE STEP, NO.1 RH

main51793-37040iXZU600,605,640,655,685,695..DCB202103

51795BBRACKET, SIDE STEP, NO.2 RH

main51795-37020iXZU600,605,640,655,685,695..DCB202103

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

5752HOLE PLUG

→ Go to FIG 57-52

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37041iXZU600..40T;XZU600,605,655,685,695..DCB;XZU602,640,642,650,652..IV4,IV6202103

main61023-37041iXZU600..40T;XZU600,605,655,685,695..DCB;XZU602,640,642,650,652..IV4,IV6202103

main61023-37051iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61023-37051iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37120iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61027-37120iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61027-37130iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

main61027-37130iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

main61131-37063iXZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..(35T,40T)..IV6202103

main61131-37073iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61131-37073iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61131-37112iXZU600,640,685..IV4202103

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-37070iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

61035CRETAINER SUB-ASSY, PILLAR LOWER HINGE, RH

main61035-37040iXZU600,605,640,655,685,695..DCB202103

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37031iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T202103

main61108-37060iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103

61231RAIL, ROOF SIDE, INNER RH

main61231-37050iXZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..(35T,40T)..IV6202103

main61231-37050iXZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..(35T,40T)..IV6202103

main61231-37060iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61231-37060iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61231-37100iXZU600,640,685..IV4202103

main61231-89119iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61231-89119iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61231-89120iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

main61231-89120iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-37052iXZU605,655,685,695..DCB..20T202103

main61233-37061iXZU600,640,685..IV4202103

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iXZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6202103

main61245-37010iXZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6202103

main61245-37020iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202103

main61245-37020iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202103

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-37020iXZU605,655,685,695..DCB..20T202103

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-37020iXZU600,640,685..IV4202103

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-37010iXZU600,605,640,655,685,695..DCB202103

61308BRETAINER SUB-ASSY, DOOR LOCK STRIKER, RH

main61309-37010iXZU600,605,640,655,685,695..DCB202103

61311BPILLAR, CENTER BODY, OUTER RH

main61311-37091iXZU600,605,640,655,685,695..DCB202103

61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH

main61321-37010iXZU600,605,640,655,685,695..DCB202103

61335DRETAINER, SEAT BELT ANCHOR

main61335-37031iXZU600,605,640,655,685,695..DCB202103

61343APILLAR, CENTER BODY, INNER RH

main61343-37150iXZU600,605,640,655,685,695..DCB202103

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-37010iXZU600,605,640,655,685,695..DCB202103

61395SEAL, CENTER BODY PILLAR, RH

main61395-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202103

61423APANEL, FENDER, INNER LOWER RH

main61423-37030iXZU600,605,640,655,685,695..DCB202103

61451BPLATE, STEP, LOWER RH

main61451-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

61453APANEL, ROCKER INNER, REAR RH

main61453-37010iXZU600,605,640,655,685,695..DCB202103

61455ARETAINER, FRONT STEP, RH

main61455-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

61525ARETAINER, SEPARATOR BAR BRACKET, RH

main61525-37020iXZU600,605,640,655,685,695..DCB202103

61737GREINFORCEMENT, ROOF SIDE, INNER RH

main61737-37020iXZU600,640,685..IV4202103

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-37050iXZU600,605,640,655,685,695..DCB202103

63147EBRACKET, ROOF PANEL REINFORCEMENT

main63147-37010iXZU600,640,685..IV4202103

63147GBRACKET, ROOF PANEL REINFORCEMENT

main63148-37030iXZU600,640,685..IV4202103

63365BPLATE, ROOF HEADLINING SET

main63365-37010iXZU600,640,685..IV4202103

63369BBRACKET, ROOF SILENCER, SIDE

main63369-37010iXZU600,640,685..IV4202103

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37022iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main64123-37141iXZU600,605,640,655,685,695..DCB202103

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61111-37310iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61111-37310iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103

main61111-37320iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

main61111-37320iXZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103

main61611-37061iXZU600,605,640,655,685,695..DCB202103

main61611-37142iXZU600,602,640,642,650,652..(35T,40T)..IV6202103

main61611-37152iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

main61611-37152iXZU642,650,652..(35T,40T)..(CBU,IV3)202103

64147CPLATE, BACK PANEL CORNER, UPR RH

64165CCOVER, BACK CORNER, INNER REAR

main64165-37020iXZU600,605,640,655,685,695..DCB202103

64169APROTECTOR, FUEL INLET

main64169-37010iXZU605..DCB202103

64726RCLIP, ROOF SIDE PANEL

main90467-05101-B2iXZU600,640,685..IV4202103

MD.CHARCOAL,TRIM1#

main90467-06048-B9iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main90467-06048-B9iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main90467-06048-B9iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

MD.CHARCOAL,TRIM1#

74657EBRACKET, HAND RAIL, NO.1

main74657-37011iXZU600,640,685..IV4202103

74665RETAINER, HAND RAIL BAR, UPPER RH

main74669-37021iXZU600,640,685..IV4202103

74773BRACKET, HAND GRIP, LOWER

main74772-37011iXZU600,640,685..IV4202103

7552MOULDING

→ Go to FIG 75-52

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9014880044

main90148-80044

9017904031

main90179-04031

9017906151

main90179-06151

9046705007

main90467-05007

9054109031

main90541-09031

9155180814

main91551-80814

9155180816

main91551-80816

91551A0814

main91551-A0814

53 parts on this diagram · 4 diagrams in section
