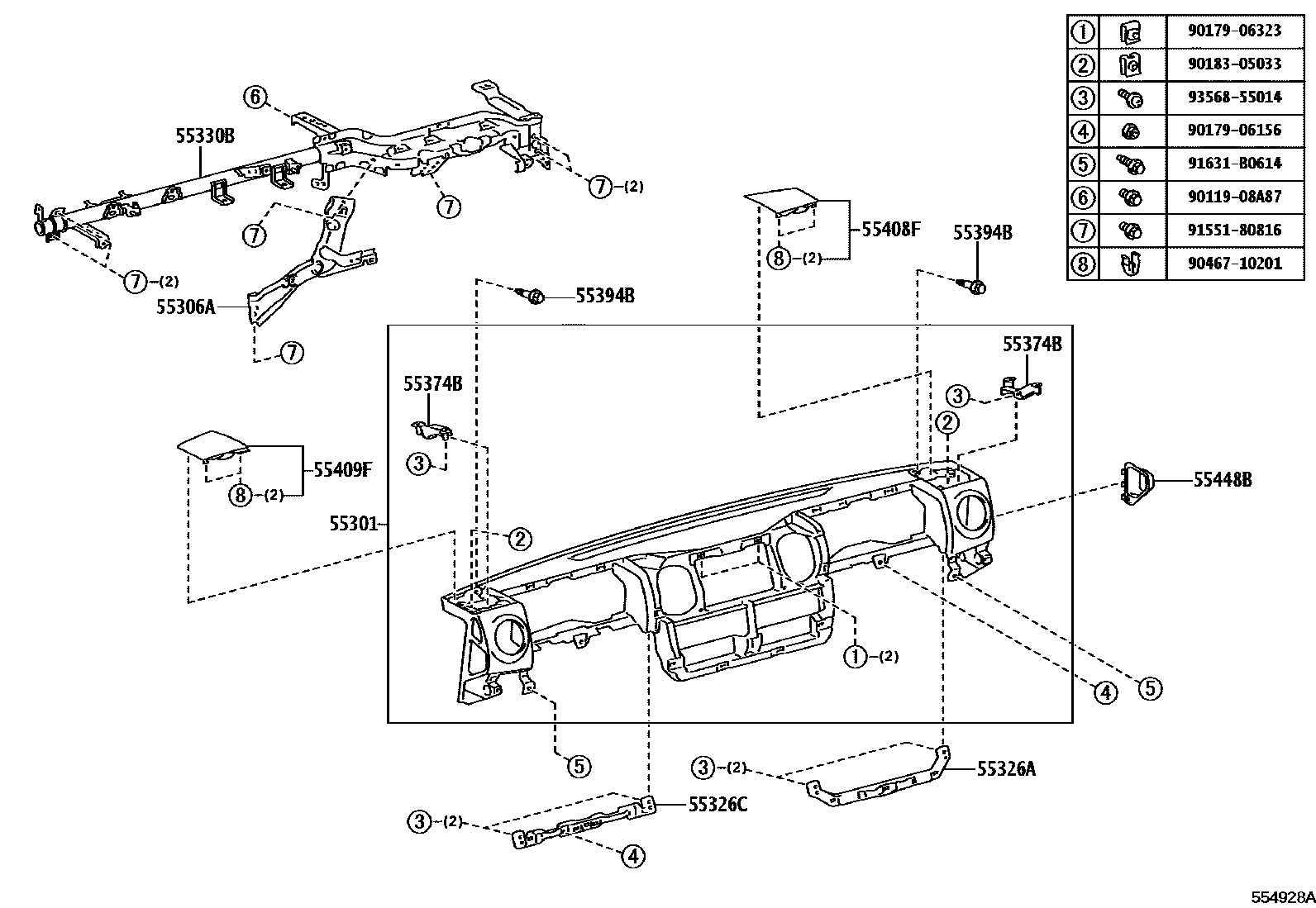

Toyota 652150 — INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55326ASTAY, INSTRUMENT PANEL, NO.1
55326CSTAY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374BBRACKET, INSTRUMENT PANEL
55394BBOLT, INSTRUMENT PANEL
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55448BCOVER, OIL RESERVOIR TANK, RH
9011908A87
9017906156
9017906323
9018305033
9046710201
9155180816
91631B0614
9356855014
18 parts on this diagram · 4 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota 652150
This section contains 71 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota 652150. Key components include: PLATE, STEERING COLUMN COVER, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL, INSTRUMENT, LOWER.
