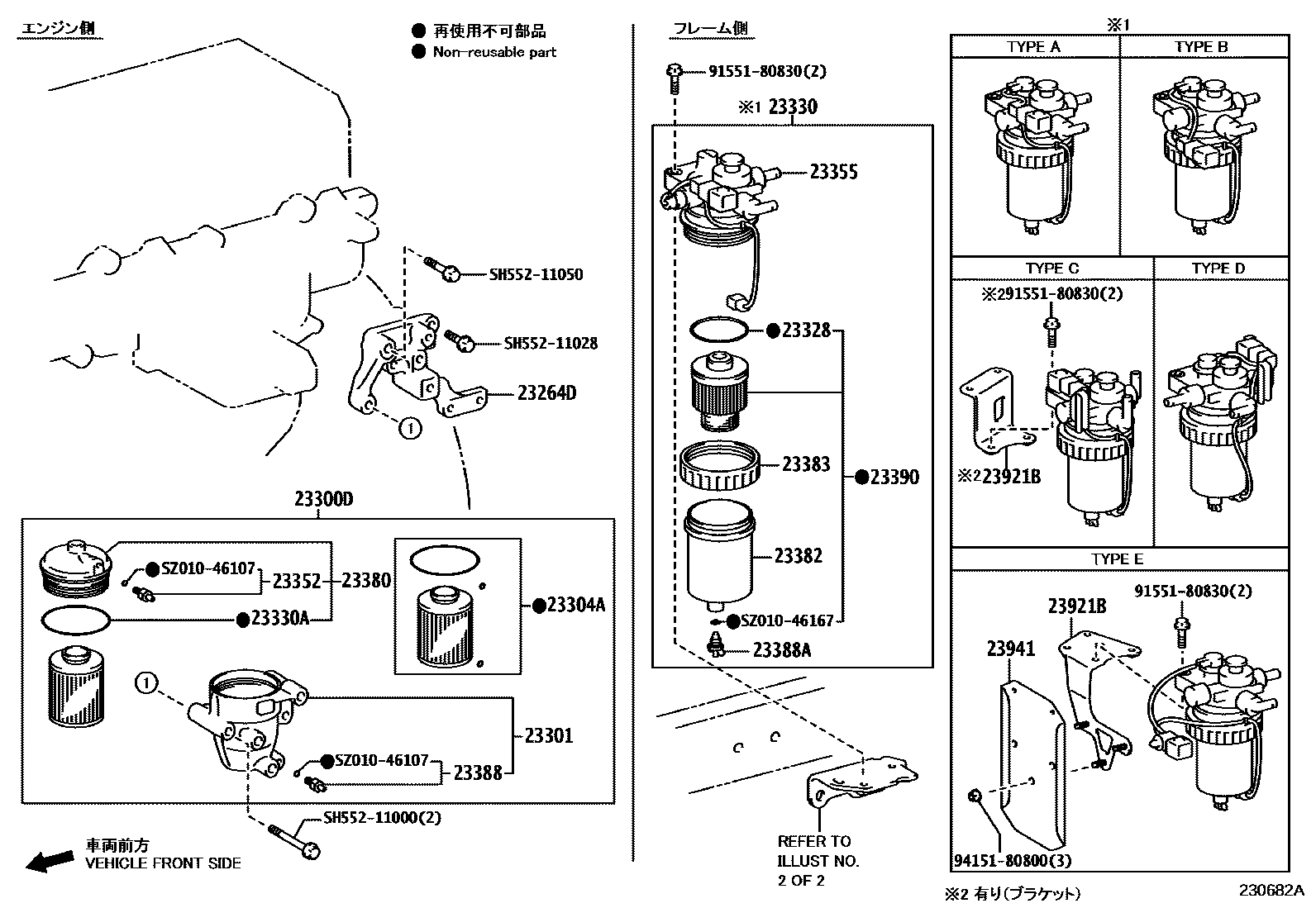

FUEL FILTER

0001 1 0002 1

23264DBRACKET, FUEL FILTER

main23264-78090iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78501iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23301BODY SUB-ASSY, FUEL FILTER

main23301-78501iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23304AELEMENT SET, FUEL FILTER

main23304-EV570iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23328GASKET(FOR FUEL FILTER)

main23385-78150×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7; N04C..XZU605..IV5202103

23330PREFILTER ASSY, FUEL

main23330-78152iN04C..XZU600..20T..IV6202310

main23330-78162iN04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU642..6FC; N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7)202103

main23330-78192iN04C..XZU60#..IV4,IV6;N04C..XZU640,685..IV4; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

main23330-78202iN04C..XZU60#..IV4,IV6;N04C..XZU640,685..IV4; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

main23330-78222supersedes 23330-78212iN04C..XZC675,XZU675..DM5;N04C..XZU605,685..DCB..20T202103

main23330-78242supersedes 23330-78232iN04C..XZU655,695..DCB202103

main23330-78322iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU650..40T..CBU;N04C..XZU675,685,695..SCB..(T3,T4);N04C..XZC675,XZU640,642..(T3,T4)..(20T,40T)202103

main23330-78332iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU650..40T..CBU;N04C..XZU675,685,695..SCB..(T3,T4);N04C..XZC675,XZU640,642..(T3,T4)..(20T,40T)202103

main23330-78500supersedes 23330-78490iN04C..XZU605..IV5202103

23330AGASKET

main23386-78500iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23352PLUG, BLEEDER

main23388-EV020iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23355ELEMENT, PREFILTER

main23355-78151iN04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU642..6FC; N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7)202103

main23355-78161iN04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU642..6FC; N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7)202103

main23355-78191iN04C..XZU60#..IV4,IV6;N04C..XZU640,685..IV4; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

main23355-78201iN04C..XZU60#..IV4,IV6;N04C..XZU640,685..IV4; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

main23355-78221supersedes 23355-78211iN04C..XZC675,XZU675..DM5;N04C..XZU605,685..DCB..20T202103

main23355-78241supersedes 23355-78231iN04C..XZU655,695..DCB202103

main23355-78321iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU650..40T..CBU;N04C..XZU675,685,695..SCB..(T3,T4);N04C..XZC675,XZU640,642..(T3,T4)..(20T,40T)202103

main23355-78331supersedes 23355-78321iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU650..40T..CBU;N04C..XZU675,685,695..SCB..(T3,T4);N04C..XZC675,XZU640,642..(T3,T4)..(20T,40T)202103

main23355-78500supersedes 23355-78292iN04C..XZU605..IV5202103

23380CAP ASSY, FUEL FILTER

main23380-78501iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23382CASE, FUEL FILTER

main23382-78152iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23383UNION, FUEL FILTER

main23383-78150iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23388PLUG, FUEL FILTER DRAIN

main23388-EV020iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23388APLUG, FUEL FILTER DRAIN

main23388-EV060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23390ELEMENT ASSY, FUEL FILTER

main23304-78150iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23921SUPPORT, FUEL FILTER

main23921-78550supersedes 23921-78561iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU650..40T..CBU;N04C..XZU675,685,695..SCB..(T3,T4);N04C..XZC675,XZU640,642..(T3,T4)..(20T,40T)202103

main23921-78561iN04C..XZU60#..IV5,IV6; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

main23921-78590iN04C..XZC630,XZU630202103

main23921-78630iN04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU642..6FC; N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7)202103

main23921-78640iN04C..XZU605,685..DCB..20T202103

main23921-78650iN04C..XZU655,695..DCB202103

23921BBRACKET(FOR FUEL FILTER)

main23921-78541iN04C..XZU605..IV5202103

main23921-78720iN04C..XZU655,695..DCB202103

main23921-78770iN04C..XZU60#..IV6; N04C..XZU605..SCB..T4..6FC..20T..IV3; N04C..XZU640,642..IV6202103

23941PROTECTOR, FUEL FILTER, NO.1

main23941-78010iN04C..XZU655,695..DCB202103

9155180830

main91551-80830

9415180800

main94151-80800

SH55211000

mainSH552-11000

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

SZ01046107

mainSZ010-46107

SZ01046167

mainSZ010-46167

25 parts on this diagram · 2 diagrams in section
