AIR BAG

55173BBRACKET

main55173-37250iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695; XZU605..T5..30T..CBU;XZU640,65#..SCB..(20T,30T)..CBU;XZU600,685,695..SCB..(DM6,T3)..(CBU,IV5);BZU600,XZU675..(DM5,DM6)..(DCRTJ,LPG)..(CBU,IV5)201107-201108

main55173-37251iTRC600..T4;XZC605..06S;TRU600..T4..IV3201108-201605

89170ACOMPUTER ASSY, AIRBAG

main89170-37110iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695; XZU605..T5..30T..CBU;XZU640,65#..SCB..(20T,30T)..CBU;XZU600,685,695..SCB..(DM6,T3)..(CBU,IV5);BZU600,XZU675..(DM5,DM6)..(DCRTJ,LPG)..(CBU,IV5)201107-201111

main89170-37111iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695; XZU645..30T..CBU;XZU640,650,655..SCB..CBU;XZU605,685,695..(T3,T5)..30T..CBU;XZU600,675..(DM5,DM6,T3)..DCRTJ..(CBU,IV5)201705-201706

main89170-37112iBZU600; BZU600..IV5; XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695; XZU645..30T..CBU;XZU640,650,655..SCB..CBU;XZU605,685,695..(T3,T5)..30T..CBU;XZU600,675..(DM5,DM6,T3)..DCRTJ..(CBU,IV5)201706-201804

main89170-37113iXZU645..30T..CBU;XZU640,650,655..SCB..CBU;XZU605,685,695..(T3,T5)..30T..CBU;XZU600,675..(DM5,DM6,T3)..DCRTJ..(CBU,IV5)201805-201905

main89170-37120supersedes 89170-37110iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201111

main89170-37121supersedes 89170-37111iTRC600..T4;XZC605..06S;TRU600..T4..IV3201112-201605

main89170-37122supersedes 89170-37113iBZU600; XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201706-201804

main89170-37123supersedes 89170-37113iBZU600; XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201805

89970SENSOR ASSY, AIRBAG, NO.2

main89970-37020iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

9155180612

main91551-80612

9155180620

main91551-80620

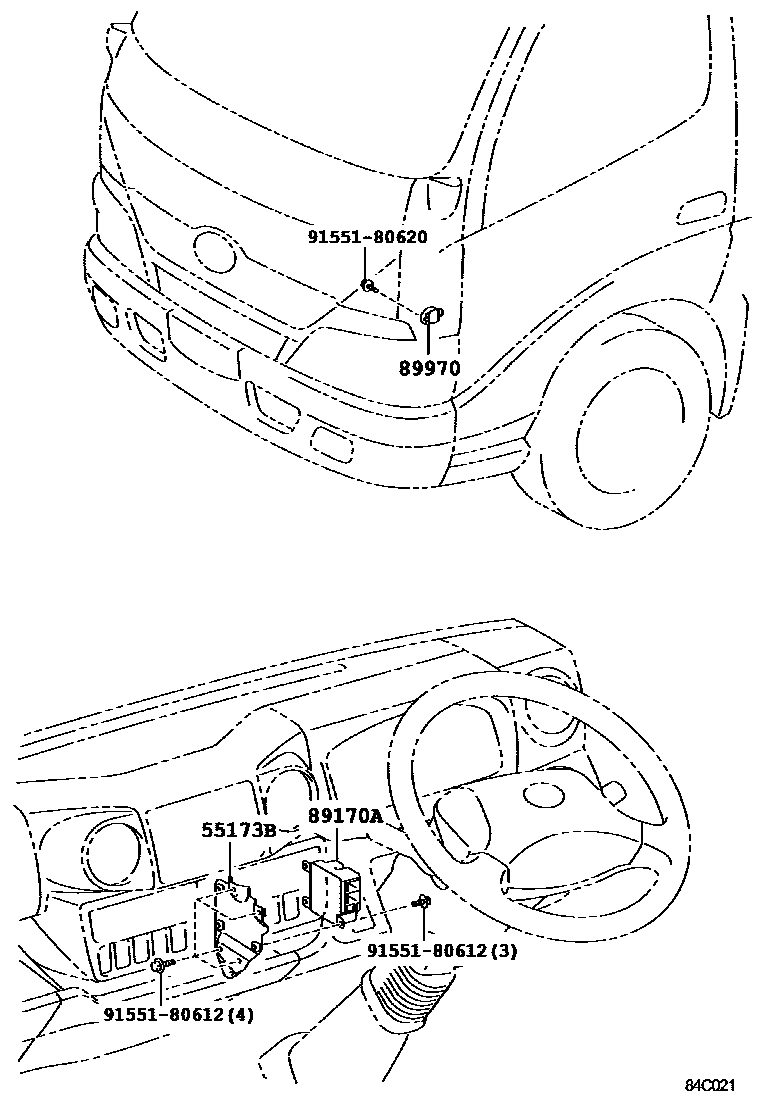

5 parts on this diagram · 1 diagram in section
