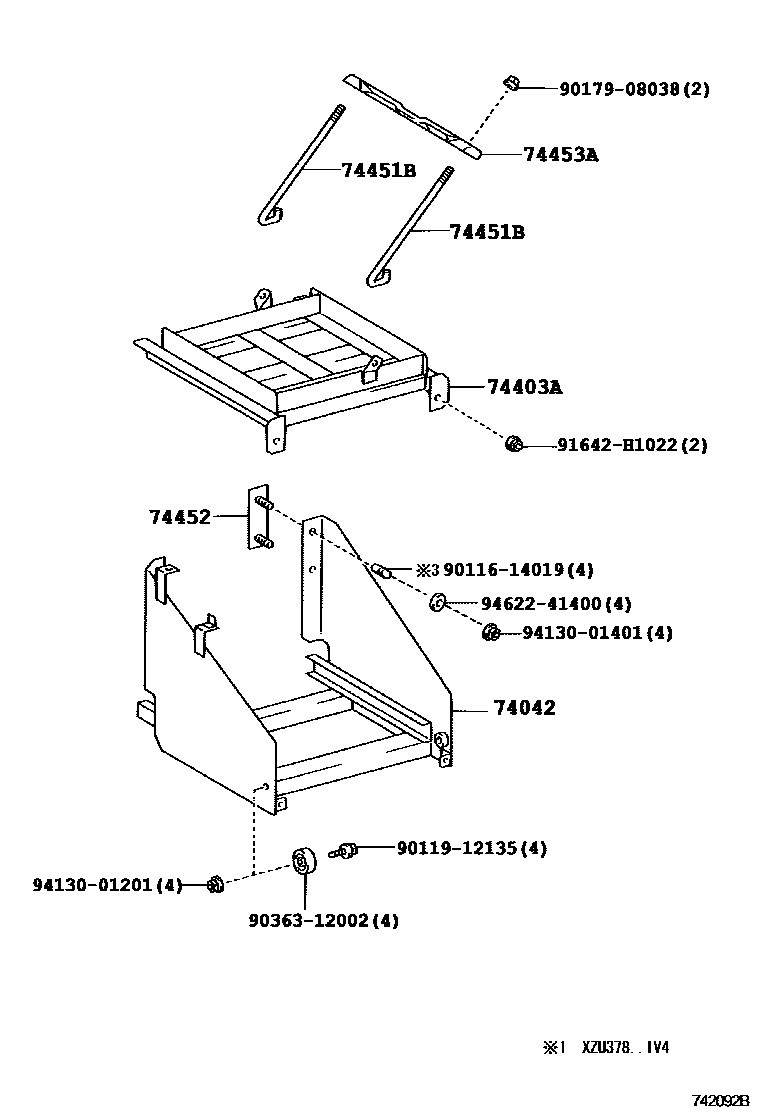

BATTERY CARRIER
74042BRACKET SUB-ASSY, BATTERY
main74042-37040iTRU340,500..T4..IV3;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV6,IV7)200610
main74042-37050iBZU300..T3;BZU300..T4..20T..IV3;BZU340,XZU308,348..SCB..(T3,T4,T5);XZU304,314,324,33#,344,354,368,378,388,50#,524,538,548,554,568..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV6,IV7)200610
74403ACARRIER SUB-ASSY, BATTERY
74451BBOLT, BATTERY CLAMP
main74451-37011×2iTRU300,XZU304,334,34#,354,378,388,548..CBU,IV3,IV6,IV7;BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5; XZU508..VAN200610
main74451-37021×2iBZU300..T3;BZU300..T4..20T..IV3;BZU340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610
74452PLATE, BATTERY SET
main74452-37020×2iBZU300..T3;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU340,XZU334,354..SCB..1NO;BZU300,TRU340,500..T4..20T..IV3;TRU300,XZU344..(T3,T4)..(20T,35T)..(DCRTK,EFI)200610
74453ABAR, BATTERY SET PLATE
main74453-36070iTRU340,500..T4..IV3;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRTM)200610-201106
9011614019
main90116-14019
9011912135
main90119-12135
9017908038
main90179-08038
9036312002
main90363-12002
91642H1022
main91642-H1022
9413001201
main94130-01201
9413001401
main94130-01401
9462241400
main94622-41400
13 parts on this diagram · 5 diagrams in section
