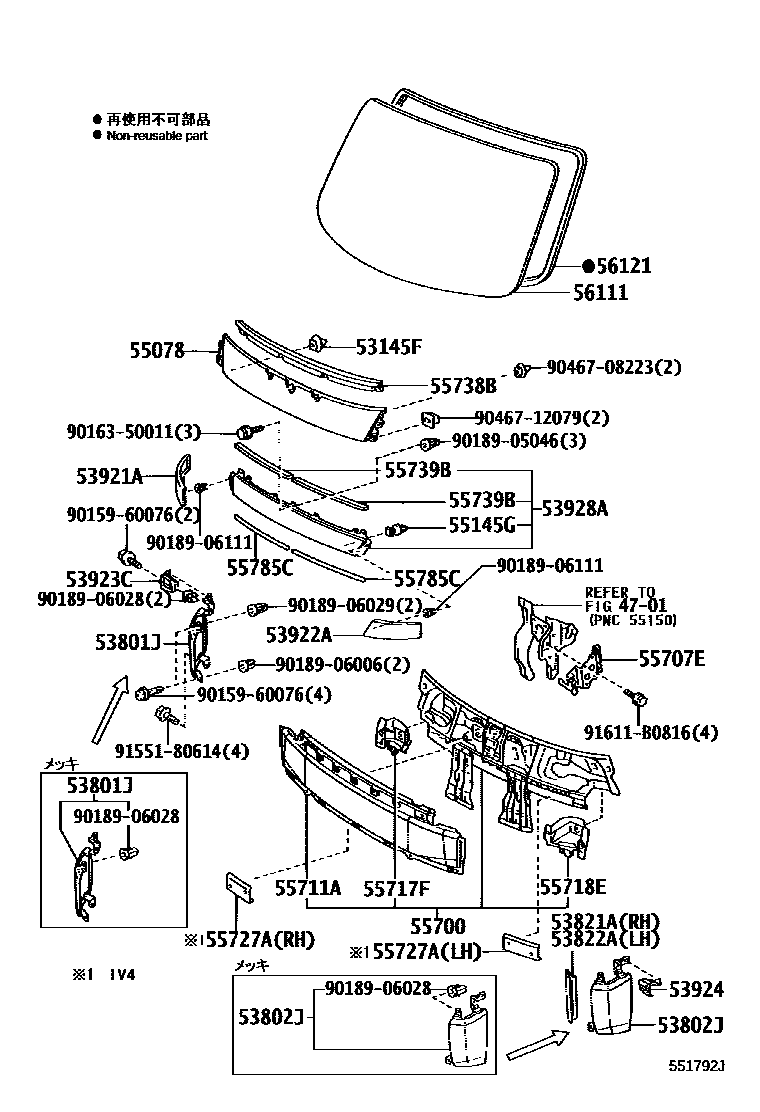

FRONT PANEL & WINDSHIELD GLASS

0001 1���������� ����=�������������0002 1���������� ����=��������� 0003 1�����������(TOYOTA) 0004 1�����������(HINO) 0005 1���������

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37021iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main53801-37041iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37021iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main53802-37041iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37070iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37070iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53921APANEL, FRONT VALANCE, RH

main53921-25010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-200911

main53921-25011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200912

53922APANEL, FRONT VALANCE, LH

main53922-25010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-200911

main53922-25011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200912

53923CSUPPORT, FRONT SIDE GARNISH, RH

main53923-25010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

53924PLATE, NOISE SHUTTER SUPPORT, NO.2

main53924-25010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

53928AGARNISH, FRONT PANEL, CENTER

main53928-37011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55078COVER SUB-ASSY, FRONT PANEL

main55078-37070iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55700PANEL ASSY, FRONT

main55700-37111iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200801

main55700-37151iXZU304,334,378..IV4200610-200801

main55700-37310iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F,6FC200801

main55700-37310iXZU30#,314,324,33#,34#..6F201003

main55700-37320iXZU304,334,378..IV4200801

55707EBRACKET SUB-ASSY, RELAY MOUNTING

main55707-37030iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

55711APANEL, FRONT, LOWER

main55711-37051iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main55711-37071iXZU304,334,378..IV4200610

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-37040iXZU304,334,378..IV4200610

main55728-37010iXZU304,334,378..IV4200610

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37051iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37070iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55785CPAD, FRONT PANEL COVER

main55785-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

56111GLASS, WINDSHIELD

main56101-89101iXZU504..ST..DCRTH..IV3;XZU508,538..DCRTH..IV3;XZU368..30T..DCRTJ..IV3;XZU304,338..SCB..(DCRTH,DCRTK);XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCR200610

main56101-89102iXZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU308,338,34#..SCB..DCRUE..CBU;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,344,504..SC200610

main56111-37120iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main56111-37130iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610

56121WEATHERSTRIP, WINDSHIELD

main56121-25040iXZU30#,314,324,33#,34#..6F201003

main56121-25040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F,6FC200708

main56121-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200707

main56121-37040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200708

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9018906111

main90189-06111

9046708223

main90467-08223

9046712079

main90467-12079

9155180614

main91551-80614

91611B0816

main91611-B0816

35 parts on this diagram · 5 diagrams in section
