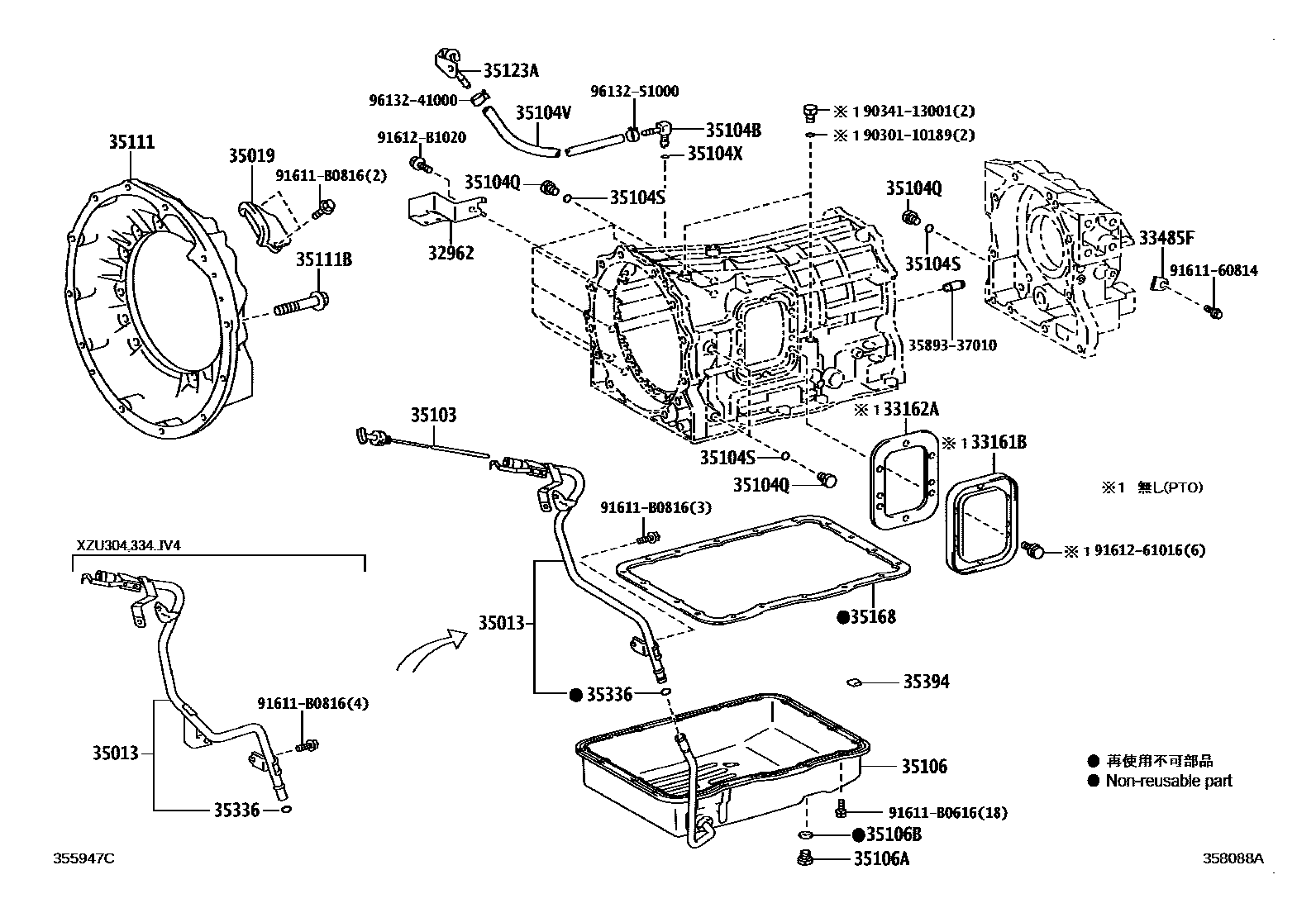

TRANSMISSION CASE & OIL PAN (ATM)

32962INSULATOR, OIL TEMPERATURE SWITCH HEAT

main32962-37021iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

33161BCOVER, TRANSMISSION POWER TAKE-OFF

main33161-37020iXZU30#,33#,34#,50#,538,548..6FC..(CBU,IV3,IV4)200610

33162AGASKET, TRANSMISSION POWER TAKE-OFF

main33162-37020iXZU30#,33#,34#,50#,538,548..6FC..(CBU,IV3,IV4)200610

33485FPLATE, SPEEDMETER LOCK

main33485-30020iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-37130iXZU30#,33#,34#,354,50#,538,548,554..6FC..(DCRTH,DCRTJ)200610

main35013-37150iXZU304,334..6FC..IV4200610

35019COVER SUB-ASSY, TRANSMISSION CASE DUST

main35019-37040iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-37130iXZU30#,33#,34#,354,50#,538,548,554..6FC..(DCRTH,DCRTJ)200610

main35103-37150iXZU304,334..6FC..IV4200610

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-13001×9iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-10189×9iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35104VHOSE (FOR BREATHER PLUG)

main90445-11149iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-200810

main90445-11160iXZU30#,33#,34#,354,50#,538,548,554..6FC200810-201106

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-37060iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-37020iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10898×12iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

35123ASKIRT, TRANSMISSION BREATHER

main35123-37051iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-37010iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

3589337010GASKET, CENTER SUPPORT APPLY

main35893-37010

9030110189

main90301-10189

9034113001

main90341-13001

9161160814

main91611-60814

91611B0616

main91611-B0616

91611B0816

main91611-B0816

9161261016

main91612-61016

91612B1020

main91612-B1020

9613241000

main96132-41000

9613251000

main96132-51000

31 parts on this diagram · 1 diagram in section
