SIDE MEMBER

0001 1 0002 1 0003 14��� 0004 15��� 0005 1����� ��� 0006 1����� ���

53805ASHIELD SUB-ASSY, FENDER SPLASH, FRONT RH

main53805-37010iXZU330,340,350..35T,40T199906-200406

main53805-37011iXZU334,344,354..35T,40T200512-200610

53806ASHIELD SUB-ASSY, FENDER SPLASH, FRONT LH

main53806-37020iXZU330,340,350..35T,40T199906-200406

main53806-37021iXZU334,344,354..35T,40T200512-200610

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iXZU304,305,344200310-200406

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iXZU301,331..4FC..DSLL..IV4199907-200206

main53828-37010iBU306,346,XZU30#,31#,32#,33#,34#,35#199905-199907

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37040iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG199905-200306

main61023-37050iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..(DM6,T2,T3,T4)..1NO200406

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37090iXZU304,305,344200310-200406

main61024-37100iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main61024-37130iBZU300,XZU301,304,305..DM6..IV3200406

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-37060iXZU302..20T;XZU311,321..4NO;XZU306..T5..DSLL;XZU301,362..CBU..4NO;RZU300,XZU347..DCB..CBU;XZU302..(295T,30T)..IV3;XZU302..(295T,30T)..CBU..4NO;XZU311,321,372,382..SCB..IV3..1NO;BU30#,XZU306,307,312,322,35#..(DCB,SCB)..DSL;BU346,RZU300,340,XZU300,301,320,33#,34#,362..(DSL,EFI,LPG)..(IV3,IV6,IV7)199905-200009

main61131-37061iXZU344..T4..IV3;XZU304..SCB..DSLL;XZU304..T4..DCRL..CBU;XZU304..30T..DCRL..4NO;XZU304,305..(DM6,T3,T4)..DCRL..IV3200310-200312

main61131-37062iXZU362..CBU..4NO;RZU300,XZU347..DCB..CBU;XZU301,302..DM3,DM6,T4,T5;BU30#,XZU306,307,31#,32#,35#..DCB,SCB;XZU301,302,372,382..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BU346,BZU300,340,RZU30#,340,XZU300,33#,340,341,342,346,347,362..IV3200312-200406

main61131-37070iXZU302..CBU..1NO;XZU306..T5..DSLL;XZU301..(T4,T5)..IV3..4NO;BU30#,XZU302,306,307,322..SCB..(DM6,T2,T3,T4,T5)..WT..DSL..IV3;BU346,RZU300,340,XZU300,301,311,320,321,33#,34#,350,362,372,382..SCB..(DSL,EFI,LPG)..1NO199905-200009

main61131-37071iXZU302..CBU..1NO;XZU306..T5..DSLL;XZU306..4FC..DSLL..IV3;XZU301..(T4,T5)..(IV3,IV6)..4NO;XZU301..SCB..(CNG,DSL,LPG)..1NO;BU30#,XZU302,306,307,322..SCB..(DM6,T2,T3,T4,T5)..WT..(CNG,DSL,LPG)..IV3;BU346,BZU300,340,RZU30#,340,XZU300,311,320,321,33#,340,341,342,346,347,350,362,372,382..SCB..1NO200009-200406

main61131-37072iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..(DM6,T2,T3,T4)..1NO200409

main61131-37100iBU306,XZU307..VAN199905-200009

main61131-37101iXZU306,308..VAN200406-200610

main61131-37110iXZU301,331,37#,382..DCB199908-200101

main61131-37111iXZU301,331..DSLL..IV4200210-200406

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61112-37150iBU306,XZU307..VAN199905-200009

main61112-37151iXZU306,308..VAN200406-200610

main61132-37040iXZU302..20T;XZU311,321..4NO;XZU301,362..CBU..4NO;XZU302..(295T,30T)..IV3;RZU300,XZU347..DCB..CBU;XZU302..(295T,30T)..CBU..4NO;XZU301,306..(DM6,T5)..5F..DSLL;XZU311,321,372,382..SCB..IV3..1NO;BU30#,XZU306,307,312,322,35#..(DCB,SCB)..DSL;BU346,RZU300,340,XZU300,301,320,33#,34#,362..(DSL,EFI,LPG)..(IV3,IV6,IV7)199905-200009

main61132-37041iXZU304..DCRL..CBU..4NO;XZU301..30T..(IV3,IV6)..1NO;RZU300,XZU346,378,388..DCB..CBU;XZU304..(T3,T4,T5)..DCRL..(IV3,IV7);XZU304..(T1,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3);BZU300,340,RZU30#,340,XZU33#,34#,378,388..(20T,30T)..IV3;XZU301,306,308,31#,321,35#,368..DM2,DM3,DM5,DM6,DM7,T2,T4,T5200406-200410

main61132-37042iXZU304..DCRL..CBU..4NO;RZU300,XZU346..DCB..CBU;XZU301..30T..(IV3,IV6)..1NO;XZU304..(T3,T4,T5)..DCRL..(IV3,IV7);RZU300,XZU378,388..(DM5,T3)..20T..CBU;XZU304..(T1,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3);BZU300,340,RZU30#,340,XZU33#,34#,378,388..(20T,30T)..IV3;XZU301,306,308,31#,321,35#,368..DM2,DM3,DM5,DM6,DM7,T2,T4,T5200410

main61132-37050iXZU340..40T200005-200009

main61132-37051iXZU304,344..(T3,T4,T5)..IV3200310-200406

main61132-37052iXZU304..CBU..1NO;XZU304..(T3,T4,T5)..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,33#,34#,378,388..SCB..(DM6,T2,T3,T4)..(20T,30T)..1NO200409

main61132-37060iXZU302..20T;RZU300..DCB..CBU;XZU306..T5..DSLL;XZU301,362..CBU..4NO;XZU311,321..SCB..4NO;XZU302..(295T,30T)..IV3;XZU302..(295T,30T)..CBU..4NO;XZU311,321,347,372,382..SCB..IV3..1NO;BU30#,XZU306,307,312,322,35#..SCB..DSL;BU346,RZU300,340,XZU300,301,320,33#,340,341,342,346,362..(DSL,EFI,LPG)..(IV3,IV6,IV7)199905-200009

main61132-37061iXZU304,305,344200310-200406

main61132-37062iXZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);RZU300,XZU346..DCB..CBU;XZU301..30T..(IV3,IV6)..1NO;XZU304..(DSL,DSLL)..(CBU,IV3);XZU306,308,31#,321,35#,368..DCB,SCB;RZU300,XZU378,388..(DM5,T3)..20T..CBU;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..IV3200410

main61132-37070iXZU302..CBU..1NO;XZU306..T5..DSLL;XZU301..(T4,T5)..IV3..4NO;BU30#,XZU302,306,307,322..SCB..(DM6,T2,T3,T4,T5)..WT..DSL..IV3;BU346,RZU300,340,XZU300,301,311,320,321,33#,34#,350,362,372,382..SCB..(DSL,EFI,LPG)..1NO199905-200009

main61132-37071iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..IV3;BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..1NO200406-200408

main61132-37072iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..(DM6,T2,T3,T4)..1NO200409

main61132-37080iBU306,XZU307..VAN199905-200009

main61132-37081iXZU306,308..VAN200406-200610

main61132-37090iXZU301,331,37#,382..DCB199908-200101

main61132-37091iXZU301,331..4FC..DSLL..IV4200101-200206

main61132-37100iXZU372,382..T3..20T199908-200101

main61132-37101iXZU372,382..T3..20T200101-200406

main61132-37110iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3200102-200406

main61132-37111iBZU300,XZU301,304,305..DM6..IV3200409

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37030iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DCB,SCB199905-200009

main61108-37031iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB200406

main61108-37040iBU306,XZU307..VAN199905-200009

main61108-37041iXZU306,308..VAN200406-200610

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37010iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DCB,SCB199905-200009

main61109-37011iXZU304,305,344200310-200406

main61109-37020iBU306,XZU307..VAN199905-200009

main61109-37021iXZU306,308..VAN200406-200610

main61109-37030iBU301,XZU301,302..20T..(DSL,LPG)..IV3..1NO199905-200009

main61109-37031iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3200009-200406

61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH

main61148-37040iXZU304,305..20T..1NO200310-200406

61231RAIL, ROOF SIDE, INNER RH

main61203-37050iBU306,XZU307..VAN199905-200406

main61231-37050iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG199905-200306

main61231-37060iXZU301,306..DSLL..IV3;XZU301,302..T4..DSL..1NO;XZU306,322..T5..4FC..IV3;BU301,XZU311,320,321..1NO199905-200206

main61231-37080iXZU306,308..VAN200406-200610

main61231-37100iXZU301,331,37#,382..DCB..DSL199908-200406

61232RAIL, ROOF SIDE, INNER LH

main61204-37050iXZU306,308..VAN200406-200610

main61232-37050iXZU304,305,344200310-200406

main61232-37060iXZU301,302..CNG200010-200306

main61232-37080iXZU304,334,378..IV4200406-200610

main61232-37090iBU306,XZU307..VAN199905-200406

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iXZU302..T3..IV3;XZU322..DM7,DM8;RZU300..DCB..CBU;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..IV3..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..DSL;XZU306,322..T5..5F..DSL;XZU302,311..(295T,30T)..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU301,362..5F..(CBU,IV6)..4NO;XZU301..(T4,T5)..4FC..CBU..4NO;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);RZU300,XZU341,342..(DSL,DSLL,EFI)..IV3;BU30#,XZU307,35#..DM2,DM5,T1,T2,T3,T4,T5;XZU301..(DM3,DM6,T3,T5)..5F..DSL..(IV3,IV6,IV7);BU346,BZU300,340,RZU301,340,XZU300,33#,340,346,347,362,372,382..SCB..IV3199905-200406

main61245-37020iXZU302..T3;RZU300..30T..LPG;XZU306..T4..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..SCB..(DM6,T3)..DSL;XZU306,322..T5..5F..DSL..IV3;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;RZU300,XZU341,342..SCB..(DSL,DSLL,EFI);BU30#,XZU301,307..SCB..(T2,T4,T5)..WT..(IV3,IV6)..4NO;BU346,BZU300,340,RZU301,340,XZU300,33#,340,346,347,350,362,372,382..SCB..1NO199905-200406

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iXZU311,321..4NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,362..CBU..4NO;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;RZU300,XZU347..DCB..CBU;XZU302..(295T,30T)..IV3;XZU302..(295T,30T)..CBU..4NO;XZU302,306..20T..(CNG,DSL,LPG);BU30#,XZU307,312,322,35#..DCB,SCB;XZU301,362,372,382..SCB..(CNG,DSL,LPG)..(IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,311,320,321,33#,340,341,342,346,347..IV3..1NO199905-200406

main61246-37010iXZU301..5F..20T..DSLL199905-200206

61451PANEL, ROCKER, OUTER RH

main61451-95J00iBU306,XZU307..VAN199905-200406

61451BPLATE, STEP, LOWER RH

main61451-37010iXZU312..SCB..20T;XZU306,322..T5..4FC;XZU301,306,331..DSLL;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU311,321..(DM5,DM8)..20T199905-200206

61452CPLATE, STEP, LOWER LH

main61452-37010iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

61455ARETAINER, FRONT STEP, RH

main61455-37010iXZU312..SCB..20T;XZU306,322..T5..4FC;XZU301,306,331..DSLL;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU311,321..(DM5,DM8)..20T199905-200206

61456BRETAINER, FRONT STEP, LH

main61456-37010iXZU301..5F..20T..DSLL;XZU301,331..4FC..DSLL..IV4199905-200206

61478CBRACKET, MUDGUARD, FRONT RH

main61478-37020iXZU334,344,354..35T,40T200406-200610

61479CBRACKET, FRONT MUDGUARD

main61479-37010iXZU330,340,350..35T,40T199906-200406

61479DBRACKET, FRONT MUDGUARD

main61479-37010iXZU330,340,350..35T,40T199906-200406

61488CBRACKET, MUDGUARD, FRONT LH

main61488-37020iXZU334,344,354..35T,40T200406-200610

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37010iRZU300..DM5..CBU;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);XZU304..SCB..(DSL,DSLL);XZU301..30T..(IV3,IV6)..1NO;XZU306,308,31#,321,35#,368..SCB;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..SCB..IV3200406

main61503-37020iRZU300..DM5..CBU;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);XZU304..SCB..(DSL,DSLL);XZU301..30T..(IV3,IV6)..1NO;XZU306,308,31#,321,35#,368..SCB;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..SCB..IV3200406

main61503-37030iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main61503-37040iXZU304,305,344..IV3200310-200406

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-37010iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main61504-37020iXZU304,305,344..IV3200310-200406

main61504-37040iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199906-200406

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-37010iRZU300..30T..LPG;RZU300,XZU331,341..SCB..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU346..CNG,DSL,EFI,LPG;XZU301,306..(T4,T5)..5F..(20T,30T)..DSL..IV3..4NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3,IV6); XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO199905-200406

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-37010iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG199905-200306

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010iXZU306,322..T5..4FC;XZU301,306..DSLL..IV3;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T199905-200206

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010iXZU301..5F..20T..DSLL199905-200206

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010iXZU304,305,344200310-200406

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main61531-37020iXZU322..DM7,DM8;XZU302..20T..DSL;XZU306..DSLL..CBU;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BU301,RZU300,XZU341,342..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,347,35#,362,372,382..SCB199905-200406

main61531-37040iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200406

main64123-37140iXZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4199905-200206

main64123-37150iXZU304,334,378..IV4200406-200610

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37010iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200406

main61532-37020iXZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(CNG,DSL,EFI,LPG)199905-200012

main61532-37021iXZU304,305,344200310-200406

main64124-37160iXZU301,331..4FC..DSLL..IV4199905-200206

main64124-37170iXZU331..DSL..IV4;XZU331..5F..DSLL;XZU301,371..5F..IV4;XZU301..4FC..DSL..IV4199908-200406

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61611-37060iXZU301,331..4FC..DSLL..IV4199905-200206

main61611-37140iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,362..CBU..4NO;XZU311,321..SCB..4NO;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(295T,30T)..IV3;XZU302,306..20T..(DSL,LPG);XZU302..(295T,30T)..CBU..4NO;BU30#,XZU307,312,322,35#..SCB;XZU301,362..(DSL,LPG)..(IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,311,320,321,33#,340,341,342,346,347,372,382..SCB..IV3..1NO199905-200312

main61611-37141iXZU362..CBU..4NO;XZU301,302..DM3,DM6,T4,T5;XZU301,302..T3..(IV3,IV6,IV7);BU30#,XZU306,307,31#,32#,35#..SCB;BU346,BZU300,340,RZU30#,340,XZU300,33#,340,341,342,346,347,362,372,382..SCB..IV3200312-200406

main61611-37150iXZU304,305,344..IV3200310-200406

main61611-37151iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..(DM6,T2,T3,T4)..1NO200409-200705

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61612-37050iXZU301,331..4FC..DSLL..IV4199905-200206

main61612-37110iXZU301..5F..20T..DSLL199905-200206

main61612-37111iRZU300..DM5..CBU;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);XZU304..SCB..(DSL,DSLL);XZU301..30T..(IV3,IV6)..1NO;XZU306,308,31#,321,35#,368..SCB;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..SCB..IV3200410-200705

main61612-37120iXZU302..CBU..1NO;XZU306..T5..DSLL;XZU306..4FC..DSLL..IV3;XZU301..(T4,T5)..(IV3,IV6)..4NO;XZU301..SCB..(CNG,DSL,LPG)..1NO;BU30#,XZU302,306,307,322..SCB..(DM6,T2,T3,T4,T5)..WT..(CNG,DSL,LPG)..IV3;BU346,BZU300,340,RZU30#,340,XZU300,311,320,321,33#,340,341,342,346,347,350,362,372,382..SCB..1NO199905-200406

main61612-37121iXZU304..CBU..1NO;XZU304..WT..(IV3,IV7);XZU301,306,308,368..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,RZU30#,340,XZU301,305,33#,34#,354,378,388..SCB..(DM6,T2,T3,T4)..1NO200409-200705

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9017904031

main90179-04031

9164580816

main91645-80816

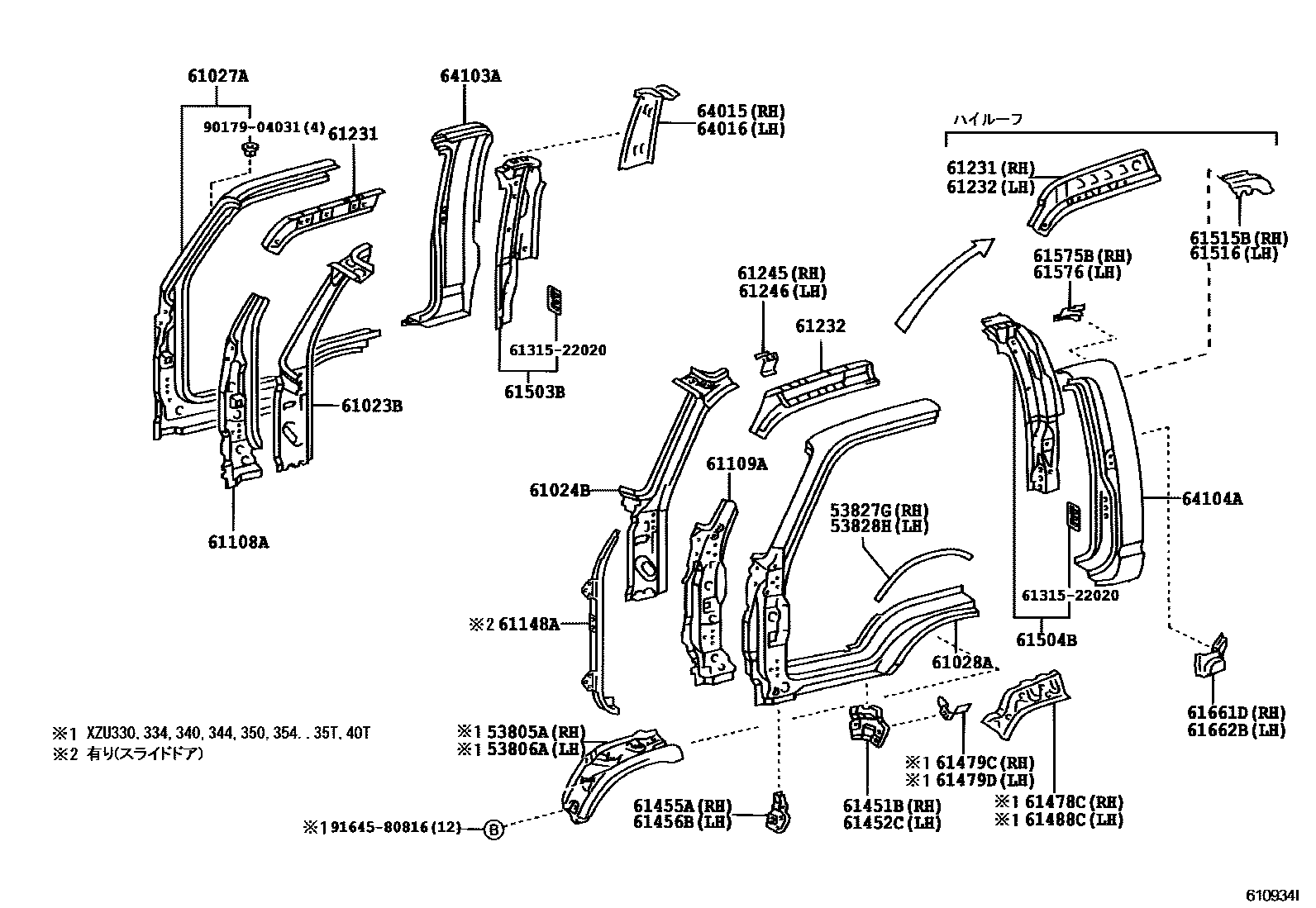

39 parts on this diagram · 6 diagrams in section
