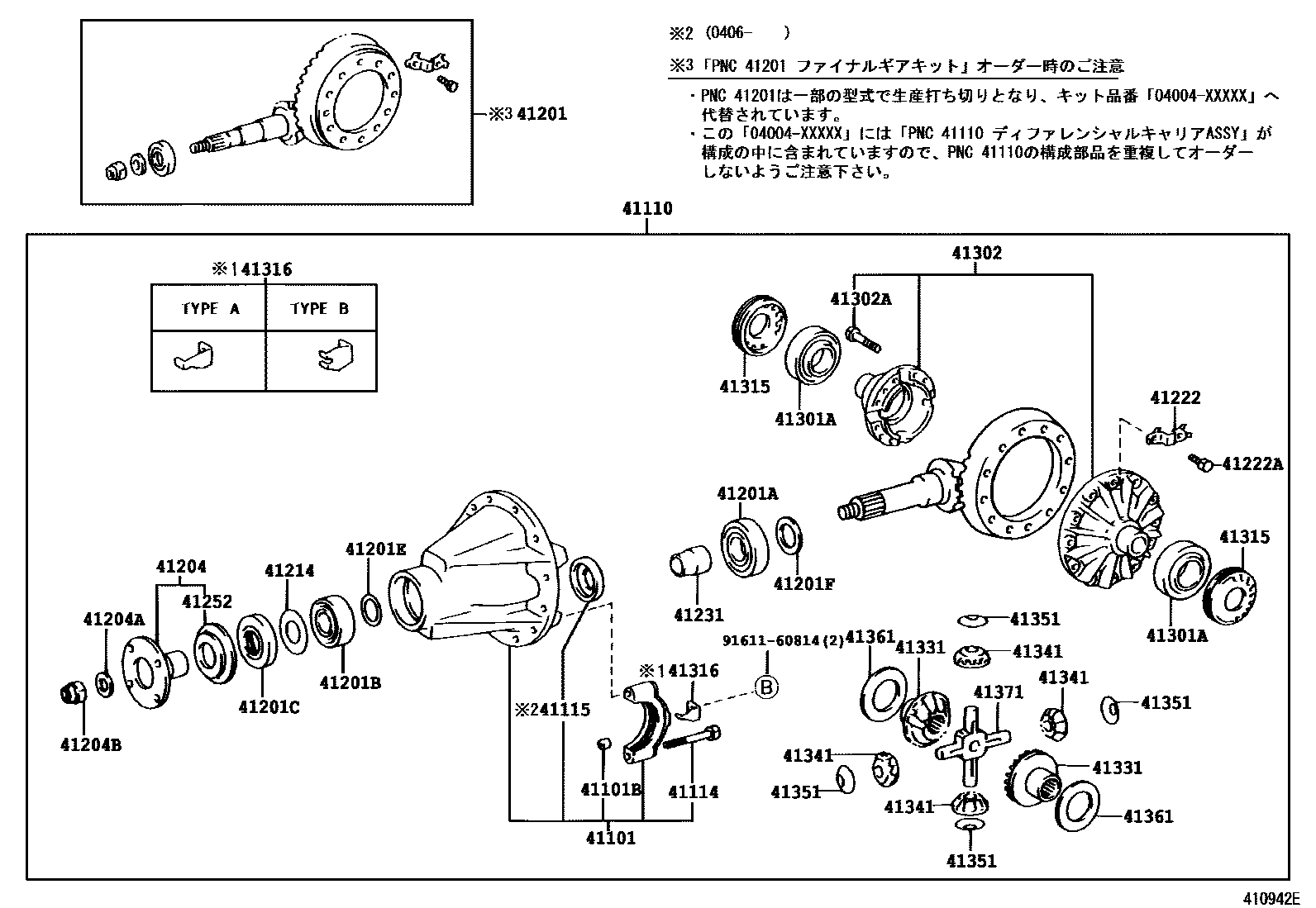

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0006 1 0009 1 0010 1 0016 1 0018 1��(L.S.D) 0019 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36040iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main41101-37010iXZU306..5F..DSLL..IV3200210-200406

main41101-37060iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-21001×4iXZU322..T5..4FC199905-200406

main90253-22002×4iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25330iXZU307,337..(03S,T2)..5F200206-200406

main41110-36501iRZU300..T3..CBU;RZU300..30T..IV3200005-200311

main41110-37080iXZU307,337..(03S,T2)..4FC199905-200406

main41110-37090iXZU307..T4..5F..CBU;XZU307..DCB..5F..IV3;XZU302..T4..5F..20T..DSL199905-200206

main41110-37100iBU30#..T4;BU346..T2,T4;XZU307..T5..5F;XZU307..T4..4FC;XZU302,337..(T4,T5)..4FC;RZU300,XZU302..(T2,T5)..20T..WT199905-200406

main41110-37110iXZU304..ST;XZU304,308..SCB..(T4,T5)..5F..DSL..IV3;RZU30#,340,XZU334,338,348..(DM5,T4)..20T200406-200705

main41110-37120iXZU322..T5..4FC199905-200206

main41110-37130iXZU306..T5..5F;XZU341,342,346..20T..(DSL,DSLL);XZU300,347,351,352..(DM5,T4)..5F199905-200311

main41110-37140iXZU321..20T..CBU200206-200311

main41110-37150iXZU331..T4;XZU300..IV3;XZU306..T5..4FC;XZU300..T3..CBU;XZU347..(T3,T4)..4FC;BZU300,XZU342..(DM6,T3)..20T;BZU340,XZU342..20T..(CNG,LPG)..IV3;XZU330,341,362..(T3,T4)..5F..(20T,30T);XZU312,352,372,382..SCB..(DM5,T4)..20T;XZU301,331..T3..5F..DSL..(CBU,IV3,IV7);BZU300,XZU301..(T4,T5)..5F..(295T,30T)..(CBU,IV3)199905-200311

main41110-37160iXZU321..DM7..20T;XZU301..DSLL..IV3199905-200206

main41110-37170iXZU301..T4..4FC..IV3;XZU302..T4..(295T,30T)..IV3200206-200311

main41110-37180iXZU350200206-200311

main41110-37200iXZU306..T4..5F;XZU336..T2..6FC;XZU346..T2..CBU;XZU346..T2..6FC..IV3200406-200610

main41110-37210iXZU346..T2..5F..CBU200406-200407

main41110-37220iXZU322..T5..5F;XZU306..T4..4FC..IV3199905-200406

main41110-37240iBU346..T3199905-200311

main41110-37250iRZU300..30T..CBU200206-200311

main41110-37290iXZU347..T2..5F200206-200406

main41110-37330iXZU304..T4..20T..(DCRL,DSLL)200406-200610

main41110-37340iXZU344,354..20T;XZU304..T5..20T..DCRL..(CBU,IV3)200406-200610

main41110-37350iXZU304..20T..IV3..4NO200310-200406

main41110-37360iXZU300..IV3;XZU331..T4..5F;XZU300..T3..CBU;XZU347..T4..4FC;XZU321..20T..CBU;XZU306,330,341,351..(DM5,T3,T5)..5F..(20T,30T);BZU340,XZU301,342,346,347..(T3,T4,T5)..5F..20T..(DSL,DSLL,LPG)200311-200406

main41110-37370iXZU300..IV3;BZU300..T4..30T;XZU300..T3..CBU;BZU340..20T..IV3;XZU301..295T..4NO;XZU347..(T3,T4)..4FC;XZU322..(DM7,DM8)..5F..20T;XZU331,352,372,382..DM5,T4;BZU300,XZU321..(DM6,DM7)..20T..IV3;XZU301..(T3,T4,T5)..5F..30T..(CBU,IV3,IV7);XZU330,331,341,342..SCB..T3..5F..(20T,30T);XZU301,362..(DM3,DM6,T3,T4)..5F..(20T,295T)200311-200406

main41110-37380iXZU331..6FC;XZU331..T3..5F;XZU341..5F..30T;XZU304..IV7..4NO;XZU368..DSL..IV3;XZU378,388..T3..DSL..CBU;XZU301,378,388..(DM3,T3)..30T;XZU301,378,388..20T..DSL..(IV3,IV6)..1NO;XZU301,304..(T4,T5)..30T..(DCRL,DSL)..IV3;BZU300,XZU304,305,311,334,344..(DM5,DM6,T3)..(20T,30T,35T)200406-200705

main41110-37390iXZU304..IV4,IV7;XZU331..T3..6FC;XZU304..20T..1NO;BZU340,XZU305..DM6,T3;XZU321,334..30T..(DSL,DSLL);XZU301,341..(DM6,T4)..6FC..1NO200406-200705

main41110-37400iXZU334..40T;XZU304,334..IV4200406-200610

main41110-37410iXZU354..1NO200406-200610

main41110-37420iXZU35#..DM5;XZU368..DCRL;XZU388..T4..CBU;XZU378..20T..DCRL;XZU388..20T..DCRL..IV3;XZU388..T3..20T..DCRL..CBU;XZU321,368,378..SCB..20T..DSL..CBU200406-200610

main41110-37430iXZU314;XZU351..6FC;XZU301..DM3..20T;XZU321..20T..IV3200406-200610

main41110-37440iXZU301..DM3..20T200406-200407

main41110-37450iXZU321..30T200406-200610

main41110-37520iBU346..T3200311-200406

main41110-37550iRZU300..30T..CBU200406-200705

main41110-37560iRZU300..T3..CBU;RZU300..30T..IV3200311-200406

main41110-37570iXZU351..DM5..5F200406-200610

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90031-05043×4iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

main90105-16009×8iRZU300..30T200005-200311

main90105-16022×4iXZU306..5F..DSLL..IV3200210-200406

41115RING, DIFFERENTIAL OIL STORAGE

main41115-37010iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-39495iRZU300..30T200005-200206

main41201-80146iBU30#..T1,T5;XZU307..T5..4FC;BU346,RZU30#,340..T4..20T199905-200406

main41201-80147iXZU322..T5..4FC199905-200206

main41201-80149iXZU306..T4..DSLL;XZU307,337,347..03S,T2199905-200206

main41201-80150iXZU302..5F..ST;XZU337..T4..5F;XZU302..CNG,LPG;XZU306..4FC..CBU;XZU307..SCB..T4..5F..IV3;XZU306,351..(DM2,T4)..DSL..IV3;BU306,346,XZU347,352..03S,06S,DM2,T2200206-200210

main41201-80151iBU30#..T4;XZU307..T5..5F;XZU307..T4..4FC;XZU306..4FC..IV3;BU346,XZU322..T2,T4,T5;XZU302,337..(T4,T5)..4FC;RZU300,XZU302..(T2,T5)..20T..WT200206-200406

main41201-80152iXZU301..4FC..20T..IV6;XZU301,331..4FC..(CBU,IV3);XZU301..T4..5F..DSL..(IV3,IV6)..1NO;XZU301,331,362..(DM3,DM5,DM6,T3)..5F;XZU302,320,340..(DM7,T3,T4,T5)..(295T,30T);XZU321,330,372,382..(DM7,DM8,T3)..(20T,40T)199905-200206

main41201-80153iXZU302..1NO;XZU341..LPG;XZU341..T4..4FC;XZU302..DM3..30T;XZU322..4FC..20T;XZU301..T4..4FC..IV3;XZU301,331..DSL..IV4;XZU301,331..SCB..T3..4FC;XZU302..T4..(295T,30T)..IV3;XZU312,32#,37#,382..5F..30T;XZU340,362..(20T,35T,40T)..1NO200206-200210

main41201-80154iXZU301,331..4FC..IV4;BU301,XZU302..20T..1NO;XZU321,322,341..(DM7,T3)..4FC..30T199905-200206

main41201-80155iXZU300..IV3;XZU300..T3..CBU;XZU306..T5..4FC;XZU342..CNG,LPG;XZU331,372,382..T4;XZU347..(T3,T4)..4FC;XZU330,362..(T3,T4)..(20T,30T);BU346,XZU312,341,342..(DM5,T3)..20T;XZU301..(T4,T5)..5F..(295T,30T)..(CBU,IV3);XZU301,331..T3..5F..(DSL,DSLL)..(CBU,IV3,IV7)199905-200206

main41201-80156iXZU300..IV3;XZU331..T4..5F;XZU300..T3..CBU;XZU347..T4..4FC;XZU321..20T..CBU;XZU306,330,341,351..(DM5,T3,T5)..5F..(20T,30T);BZU340,XZU301,342,346,347..(T3,T4,T5)..5F..20T..(DSL,DSLL,LPG)200206-200406

main41201-80157iXZU306..T5..5F;XZU300,347..T4..5F;XZU341,342,346..20T..DSL199905-200206

main41201-80165iXZU307,337,347..(03S,T2)..5F200206-200406

main41201-80213iXZU304..20T..4NO200310-200406

main41201-80214iXZU344,354..20T;XZU304..T5..20T..DCRL..(CBU,IV3)200406-200610

main41201-80215iXZU304..20T..IV3..4NO200310-200406

main41201-80216iXZU368..DCRL;XZU388..T4..CBU;XZU378..20T..DCRL;XZU388..20T..DCRL..IV3;XZU304,334..30T..(CBU,IV3);XZU388..T3..20T..DCRL..CBU;XZU301,306..T5..5F..20T..WT;XZU341,346..(T3,T4)..5F..20T;XZU321,368,378..SCB..20T..DSL..CBU;BZU340,XZU336,344,35#..(DM5,T4)..(DCRL,DSL,DSLL,LPG)200406-200612

main41201-80217iXZU341..T3..20T;XZU304..IV7..4NO;XZU336,346..T4..6FC;XZU304..30T..IV3..4NO;BZU300,XZU331..T4..30T;BZU340,XZU321..20T..IV3;XZU306,351..(DM5,T5)..6FC;BZU300,XZU305,314..DM5,DM6;XZU301..(DM3,DM6)..5F..20T;XZU301,334..(T3,T4,T5)..30T..(CBU,IV3);XZU304,331,344..SCB..(DM6,T3)..5F..(20T,30T)200406-200612

main41201-80218iXZU304,305..(DM6,T3,T5)..IV3200310-200406

main41201-80287iXZU304,305..20T..1NO200310-200406

main41201-80293iXZU334..40T;XZU304,334..IV4200406-200610

main41201-80351iXZU354..1NO200406-200610

main41201-80359iXZU346..T2..5F;XZU306..(03S,T2)..6FC200406-200610

main41201-80365iRZU300..T2;XZU308..T5;XZU304,308..T4..4FC;XZU334,338,348..T4..5F..IV3;XZU301,306..SCB..T4..6FC..20T..IV3200406-200705

main41201-80369iXZU304..ST;XZU304,308..SCB..(T4,T5)..5F..DSL..IV3;RZU30#,340,XZU334,338,348..(DM5,T4)..20T200406-200705

main41201-80370iXZU301..ST;XZU348,351..DM2,T2;XZU346..T2..5F..IV3;XZU306..DCB..6FC..IV3;XZU308,346..(03S,T2)..ATM;XZU301,306..T4..6FC..20T..CBU;XZU301,306..SCB..T4..20T..(IV3,IV6);BZU300,XZU304,308..T4..5F..20T..(CNG,DSL,LPG)200406-200705

main41201-80375iXZU306,336..(03S,T2)..5F200406-200610

main41201-80376iXZU336,346..T2..6FC;XZU301,306..T4..5F..20T;XZU308,338,348..(03S,06S,T2)..5F200406-200610

main41201-80414iXZU334,338,348..T4;XZU304,308..SCB..T4..4FC..IV3200406-200610

main41201-80547iBZU300,XZU304..DM6,T3200612-200705

main41201-80548iBZU300..T4..30T;BZU340..20T..IV3;BZU300,XZU304..DM6200612-200705

main41201-80549iBZU340,XZU304..DM6,T3200612-200705

main41201-80550iBZU340..20T..LPG200612-200705

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40100iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90366-49001iXZU301,331..DSLL..1NO200210-200311

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90033-11039iXZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200310-200406

main90033-65002iXZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200310-200406

main90033-66038iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

main90033-66040iXZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200310-200406

main90366-35108iXZU306..T4..DSLL199905-200206

main90366-45001×2iRZU300..30T200005-200311

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90033-01069iXZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200310-200406

main90033-11039iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

OD=105,T=25.0

main90311-48019iXZU306..T4..DSLL199905-200206

main90311-48024iXZU306..T4;XZU347..T2;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)200405-200406

main90311-58010×2iRZU300..30T200005-200311

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iXZU306..T4..DSLL199905-200206

main90564-35020iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-35021iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-35022iXZU306..5F..DSLL..IV3200210-200406

main90564-35023iXZU306..T4..DSLL199905-200206

main90564-35024iXZU306..T4..DSLL199905-200206

main90564-35025iXZU306..5F..DSLL..IV3200210-200406

main90564-35026iXZU306..5F..DSLL..IV3200210-200406

main90564-35027iXZU306..5F..DSLL..IV3200210-200406

main90564-35028iXZU306..T4..DSLL199905-200206

main90564-35029iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-35030iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-35031iXZU306..5F..DSLL..IV3200210-200406

main90564-35032iXZU306..T4..DSLL199905-200206

main90564-35033iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-35034iXZU306..5F..DSLL..IV3200210-200406

main90564-35035iXZU306..5F..DSLL..IV3200210-200406

main90564-35036iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-35037iXZU306..5F..DSLL..IV3200210-200406

main90564-35038iXZU306..T4..DSLL199905-200206

main90564-35039iXZU306..5F..DSLL..IV3200210-200406

main90564-35040iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-45020iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45021iXZU301,331..DSLL..1NO200210-200311

main90564-45022iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45023iXZU301,331..DSLL..1NO200210-200311

main90564-45024iXZU301,331..DSLL..1NO200210-200311

main90564-45025iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45026iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45027iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45028iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45029iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45030iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45031iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45032iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45033iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45034iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45035iXZU301,331..DSLL..1NO200210-200311

main90564-45036iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45037iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45038iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45039iXZU301,331..DSLL..1NO200210-200311

main90564-45046iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45047iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90564-45048iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main90564-45049iXZU301,331..DSLL..1NO200210-200311

main90564-45050iXZU301,331..DSLL..1NO200210-200311

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90564-40004iXZU306..T4..DSLL199905-200206

main90564-40006iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-40007iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-40008iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-40009iXZU306..5F..DSLL..IV3200210-200406

main90564-40010iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-40011iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-40012iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-40013iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-40014iXZU306..5F..DSLL..IV3200210-200406

main90564-40015iXZU306..T4..DSLL199905-200206

main90564-40016iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90564-40017iXZU306..5F..DSLL..IV3200210-200406

main90564-40018iXZU306..T4..DSLL199905-200206

main90564-40019iXZU306..T4..DSLL199905-200206

main90564-40020iXZU306..5F..DSLL..IV3200210-200406

main90564-40021iXZU306..T4..DSLL199905-200206

main90564-40022iXZU306..T4..DSLL199905-200206

main90564-40023iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90564-40024iXZU306..T4..DSLL199905-200206

main90564-40025iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-37010iXZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..(175T,20T)..(DSL,EFI,LPG)200406

main41204-37020×2iRZU300..30T200005-200311

main41204-37030iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BZU300,XZU306..DM6,T3,T5;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,31#,32#,330,340,341,342,346,347,35#,362,37#,382..DM5,DM7,DM8,T3,T4199905-200311

main41204-37040iXZU346,351..DM2,T2;XZU301..6FC..20T..4NO;BZU300,XZU306..T4..20T;XZU306,336..(03S,T2)..6FC200406

main41204-37080iBZU300,XZU301..T4..30T;XZU331,336,341,346,368,378,388..DM5,T3,T4;BZU340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG;BZU300,XZU301,306,311,321,351..(DM3,DM5,DM6,DM7,T3,T5)..WT200406

main41204-37090iRZU300..30T200406

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iXZU306..T4..DSLL199905-200206

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main90179-24001iXZU301,331..DSLL..1NO200210-200311

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36020iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main41214-37010iXZU306..5F..DSLL..IV3200210-200406

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020×6iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main41222-36030×6iXZU301,331..DSLL..1NO200210-200311

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90031-01193×16iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

main90031-01203×16iRZU300..30T;BZU340,XZU304;BZU300..DM6,T3;BZU300..T4..30T200612

main90101-14315×12iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main90101-16015×24iRZU300..30T200005-200311

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iXZU306..5F..DSLL..IV3200210-200406

main41231-36050×2iRZU300..30T200005-200311

main41231-37420iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37430iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37440iRZU300,XZU311,331..30T;BZU300,XZU301..T4..30T;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU306,321,351..DM5,DM6,DM7,T5;XZU336,341,346,368,378,388..DM5,T3,T4;BZU340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG200406

main41231-37450iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37460iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37470iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37480iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37490iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37500iXZU344..20T..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304..T4..20T..(DCRL,DSLL)..CBU;XZU304,305..(DM6,T3,T4)..(DCRL,DSLL)..IV3200310-200311

main41231-37510iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37520iXZU344..20T..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304..T4..20T..(DCRL,DSLL)..CBU;XZU304,305..(DM6,T3,T4)..(DCRL,DSLL)..IV3200310-200311

main41231-37530iRZU300,XZU311,331..30T;BZU300,XZU301..T4..30T;XZU336,341,346,368,378,388..DM5,T3,T4;BZU340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG;BZU300,XZU301,306,321,351..(DM3,DM5,DM6,DM7,T3,T5)..WT200406

main41231-37540iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37550iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37560iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37570iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37580iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37590iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37600iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41231-37610iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-89203iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41252-37020iXZU306..5F..DSLL..IV3200210-200406

main41252-37030iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-37030iXZU304,344..T4..20T200310-200406

main41301-37040iXZU304..20T..IV3..4NO; XZU304..30T..DSLL..IV3..4NO;XZU304,305..(DM6,T3,T5)..IV3200310-200406

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-52004×2iXZU306..5F..DSLL..IV3200210-200406

main90366-55054×2iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main90366-60001×2iXZU301,331..DSLL..1NO200210-200311

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iXZU306..T4..DSLL199905-200206

main41301-36040iXZU301,331..DSLL..1NO200210-200311

main41301-37030iXZU304,344,354..(DM5,T4,T5)..20T..(DCRL,DSLL)..(CBU,IV3)200406-200610

*FGR=4.333

main41301-37040iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

main41301-37050iXZU368,378,388;XZU301,31#,321,35#..DM3,DM5,DM7200406-200610

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90031-05098×8iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5200311-200406

main90105-12047×12iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main90105-12087×12iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011×2iXZU306..5F..DSLL..IV3200210-200406

main41315-36020×2iXZU301,331..DSLL..1NO200210-200311

main41315-37020×2iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011×2iXZU306..T4..DSLL199905-200206

main41316-36020×2iXZU301,331..DSLL..1NO200210-200311

main41316-37010×2iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41317-36011×2iXZU306..T4..DSLL199905-200206

main41317-36020×4iRZU300..30T200005-200311

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020×2iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main41331-36031×4iRZU300..30T200005-200311

main41331-37040×2iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41331-37050iXZU368,378,388;XZU301,31#,321,35#..DM3,DM5,DM7200406-200610

main41331-37060iXZU368,378,388;XZU301,31#,321,35#..DM3,DM5,DM7200406-200610

41341PINION, REAR DIFFERENTIAL

main41341-36011×4iXZU301,331..DSLL..1NO200210-200311

main41341-37030×4iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41341-55013×4iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011×4iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41351-36010×4iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main41351-37020×4iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-36010×2iXZU301,331..4FC..DSLL;XZU301..5F..DSLL..IV3199905-200206

main41361-36020×2iXZU301,331..DSLL..1NO200210-200311

main41361-36030×2iXZU302..DM3,DM6,T3;XZU301..CNG,DSL,LPG;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU331..30T..(DSL,EFI,LPG);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main41361-36040×2iXZU301,331..DSLL..1NO200210-200311

main41361-37030×2iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41361-60011×2iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41361-60021×2iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main41361-60031×2iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

main41361-60041×2iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41361-60480×2iXZU306..5F..DSLL..IV3200210-200406

main41361-60490×2iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41361-60500×2iXZU306..5F..DSLL..IV3200210-200406

main41361-60510×2iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41361-60520×2iXZU306..5F..DSLL..IV3200210-200406

main41361-60530×2iXZU306..T4..DSLL199905-200206

main41361-60540×2iXZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T)199905-200406

main41361-60550×2iXZU301..ST;XZU336,346..T2;XZU301,306,351..(03S,DM2,T2,T4)..20T;BZU300,RZU30#,340,XZU304,308,334,338,348..(03S,06S,DM5,T1,T2,T4,T5)..(175T,20T)..(CNG,DSL,EFI,LPG)200406

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iXZU306..T4..DSLL199905-200206

main41371-36020iXZU302..DM3,DM6,T3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,XZU300,322,340,341,342,346,347,362,372,382..DM5,DM7,DM8,T3,T4;BU301,346,BZU300,XZU306,31#,320,321,330,35#,371..(DM5,DM6,DM7,DM8,T3,T5)..WT199905-200311

main41371-37020iRZU300..30T;XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BU346,BZU300,XZU306,31#,321,330,35#,371..DM5,DM6,DM7,T3,T5;BZU340,XZU300,301,331,340,341,342,346,347,362,372,382..DM3,DM5,DM6,DM7,T3,T4,T5; XZU304..IV3;XZU305,344..20T;XZU304..20T..CBU200311-200406

main41371-37030iXZU301..DM3..CBU;XZU31#,321,35#,368,378,388..(DM5,DM7,T3,T4)..(20T,30T)200406-200610

9161160814

main91611-60814

31 parts on this diagram · 7 diagrams in section
