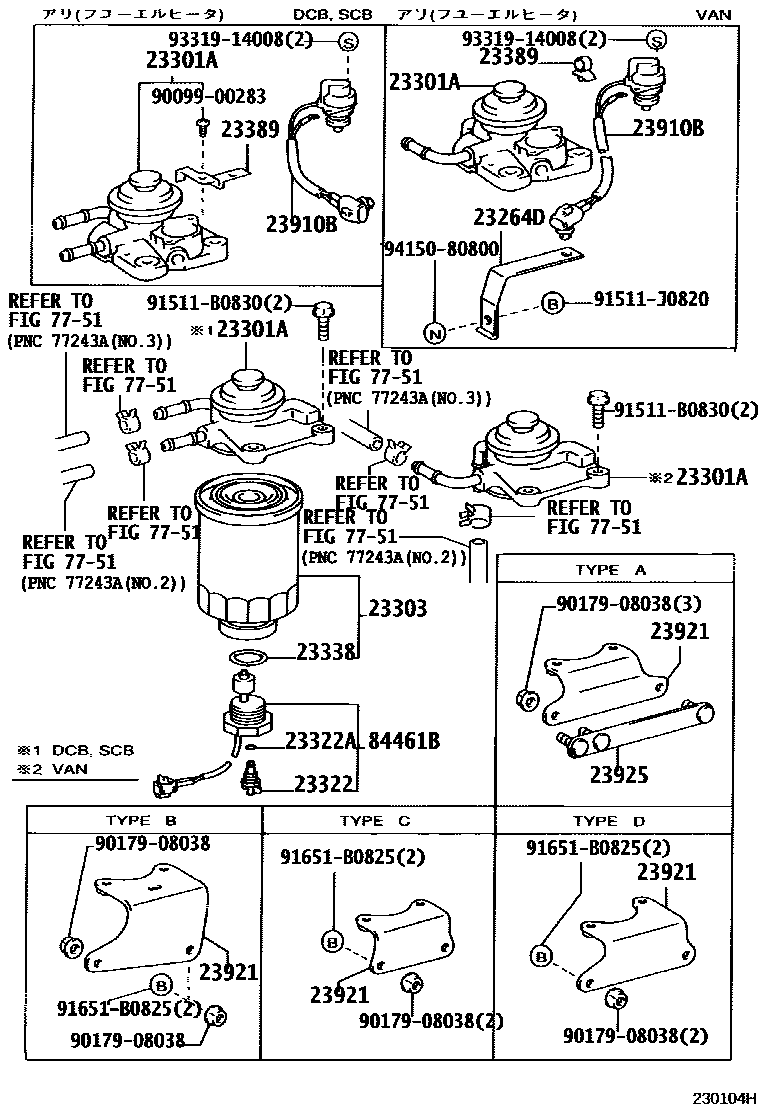

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

23264DBRACKET, FUEL FILTER

main23264-78010iS05C..XZU307..03S199908-200406

23301BODY SUB-ASSY, FUEL FILTER

main23301-78220iN04C..XZU304,305,344200310-200406

main23301-78221iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7)200512-200705

main23301-78230iN04C..XZU304,305,344200310-200406

main23301-78231iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7)200512-200705

main23301-78250iN04C..XZU378..IV4;N04C,S05D..XZU304,306,308,334..(03S,06S,T3)..(DSL,DSLL)..(CBU,IV4)200406-200512

main23301-78251iN04C..XZU378..IV4;N04C,S05D..XZU304,306,308,334..(03S,06S,T3)..(DSL,DSLL)..(CBU,IV4)200512-200610

main23301-78260iN04C..XZU378..IV4;N04C,S05D..XZU304,306,308,334..(03S,06S,T3)..(DSL,DSLL)..(CBU,IV4)200406-200512

main23301-78261iN04C..XZU378..IV4;N04C,S05D..XZU304,306,308,334..(03S,06S,T3)..(DSL,DSLL)..(CBU,IV4)200512-200610

main23311-89101iJ05C..XZU300,320,330,340,350199906-200406

23301ACAP ASSY, FUEL FILTER

main23310-89101iJ05C..XZU300,320,330,340,350199906-200406

main23380-78041i4B..BU30#,346..SCB; S05#..XZU301,302,306,307,321,322,331,337,341,342,346,347..SCB199905-200406

main23380-78050i4B..BU30#,346..DCB,SCB; S05#..XZU31#..SCB;S05#..XZU301,302,306,307,321,322,331,337,341,342,346,347,351,352..(DCB,SCB)..(CBU,IV3,IV6,IV7)199905-200406

main23380-78060iS05#..XZU31#,37#,382..DCB199908-200406

main23380-78070iS05#..XZU301,307,331..(DCB,VAN)..(03S,T3)199908-200406

main23380-78080iS05C..XZU362,372,382;S05#..XZU31#,371..DCB199907-200406

main23380-78090i4B..BU306..VAN199905-200406

main23380-78130iS05C..XZU307,347..DCB;S05#..XZU31#,351,352..SCB199905-200406

main23380-78140iS05C..XZU362,372,382..SCB199907-200406

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-89101iJ05C..XZU300,320,330,340,350199906-200406

main23390-64480i4B..BU30#,346; S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

main23390-78220iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406-200505

main23390-78221iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-78030iJ05C..XZU300,320,330,340,350199906-200406

main23388-64470i4B..BU30#,346; S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i4B..BU30#,346; S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

23338GASKET(FOR WARNING SWITCH)

main23344-64010i4B..BU30#,346; S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

23389CLAMP, FUEL FILTER

main23389-17380iS05C..XZU307,347..DCB;S05#..XZU31#,351,352,362,372,382..SCB199905-200406

main23389-64490iS05#..XZU301,307,31#,331,37#,382..(DCB,VAN)..(03S,DM5,T3)199908-200406

main23389-78041i4B..BU30#,346..SCB; S05#..XZU301,302,306,307,321,322,331,337,341,342,346,347..SCB199905-200406

23910BHEATER ASSY, FUEL

main23910-17070i4B..BU30#..DCB; S05C..XZU307,347..DCB;S05#..XZU31#,351,352,362,372,382..SCB199905-200406

main23910-78011i4B..BU30#,346..SCB; S05#..XZU301,302,306,307,321,322,331,337,341,342,346,347..SCB199905-200406

main23910-78020i4B..BU306..VAN199905-200406

main23910-78050iS05#..XZU31#,37#,382..DCB199908-200406

23921SUPPORT, FUEL FILTER

main23921-78010iN04C,S05D..XZU34#;N04C,S05D..XZU304,306,308,378,388..DCB..(CBU,IV3)200406-200610

main23921-78020iS05#..XZU31#,351,352..SCB199905-200406

main23921-78040iS05#..XZU37#,382..DCB199908-200406

main23921-78050iS05C..XZU302..(DM6,T4)..20T..IV3;S05#..XZU301,306,307..SCB..(DM6,T4)..(IV3,IV6)200210-200309

main23921-78051iS05C..XZU302..(DM6,T4)..20T..IV3;S05#..XZU301,306,307..SCB..(DM6,T4)..(IV3,IV6)200309-200406

main23921-78060iS05C..XZU362,372,382..SCB199907-200406

main23921-78080iS05C..XZU307..03S199908-200406

main23921-78100iS05D..XZU301..20T..IV7;S05#..XZU301,302,306,307,331,337..SCB..(DM3,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7)200206-200210

main23921-78110iS05#..XZU321,322199905-200406

main23921-78140iS05C..XZU337..T4..IV3;S05D..XZU301..30T..IV6..1NO200206-200309

main23921-78141iS05C..XZU337..T4..IV3;S05D..XZU301..30T..IV6..1NO200309-200406

main23921-78142iS05D..XZU336..T4..IV3;N04C,S05D..XZU301,354..T3..IV6200406-200610

main23921-78190iN04C..XZU304..T3,T4,T5200310-200406

23925STAY, FUEL FILTER SUPPORT

main23925-78010iS05D..XZU306..T4..CBU;S05C..XZU307..DCB..IV3;S05#..XZU341,342,346,347;S05C..XZU307..T4..4FC..CBU;S05C..XZU307..DCB..5F..CBU199905-200206

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-28040iBU30#,346; XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL199905-200406

9009900283

main90099-00283

9017908038

main90179-08038

91511B0830

main91511-B0830

91511J0820

main91511-J0820

91651B0825

main91651-B0825

9331914008

main93319-14008

9415080800

main94150-80800

20 parts on this diagram · 10 diagrams in section
