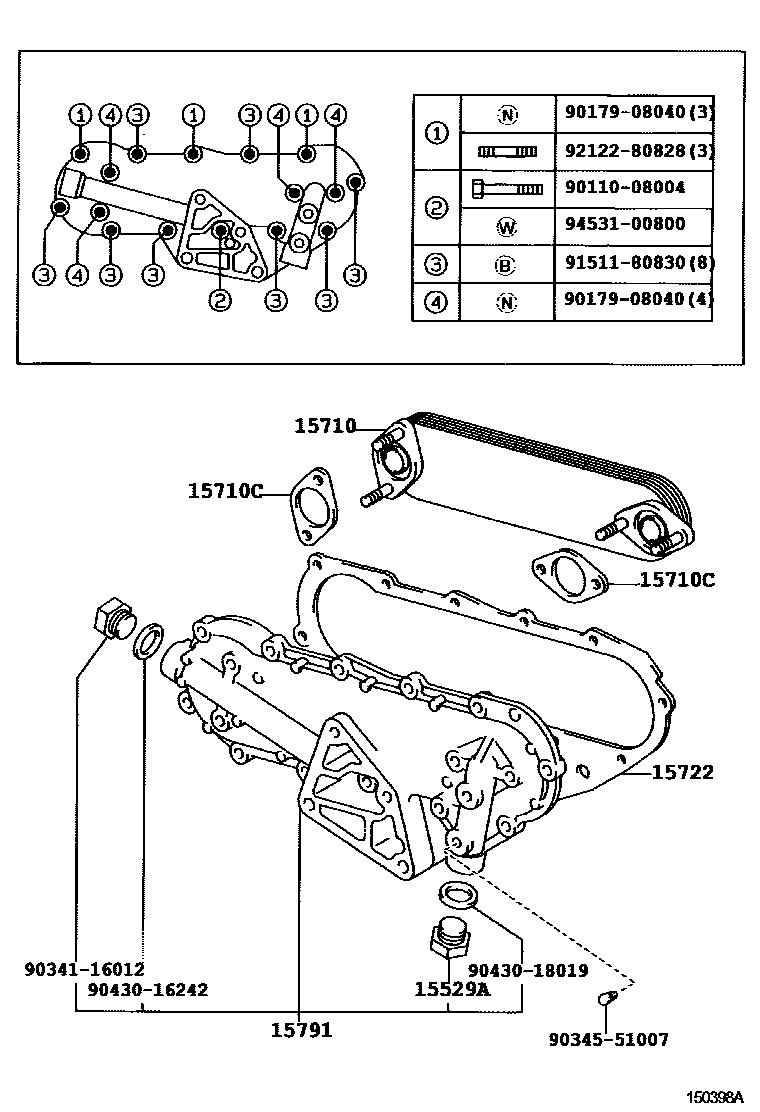

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1

15529APLUG

main90341-18006i15B#..XZU301,302,341,342200005-200306

15710COOLER ASSY, OIL

main15710-58030i1BZ#..BZU300,340200406

main15710-78030iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200206

main15710-78070iN04C..XZU304,334,378..IV4200603-200610

main15710-89102iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL200206-200210

main15710-89103iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

main15710-89104iN04C..XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)200406-200705

15710CGASKET(FOR OIL COOLER)

main15785-58010×2i15B#..XZU301,302,341,342200005-200306

15722GASKET, OIL COOLER

main15725-56020i15B#..XZU301,302,341,342200005-200306

15791CASE, OIL COOLER

main15701-58050i15B#..XZU301,302,341,342200005-200306

9011008004

main90110-08004

9017908040

main90179-08040

9034116012

main90341-16012

9034551007

main90345-51007

9043016242

main90430-16242

9043018019

main90430-18019

9151180830

main91511-80830

9212280828

main92122-80828

9453100800

main94531-00800

14 parts on this diagram · 5 diagrams in section
