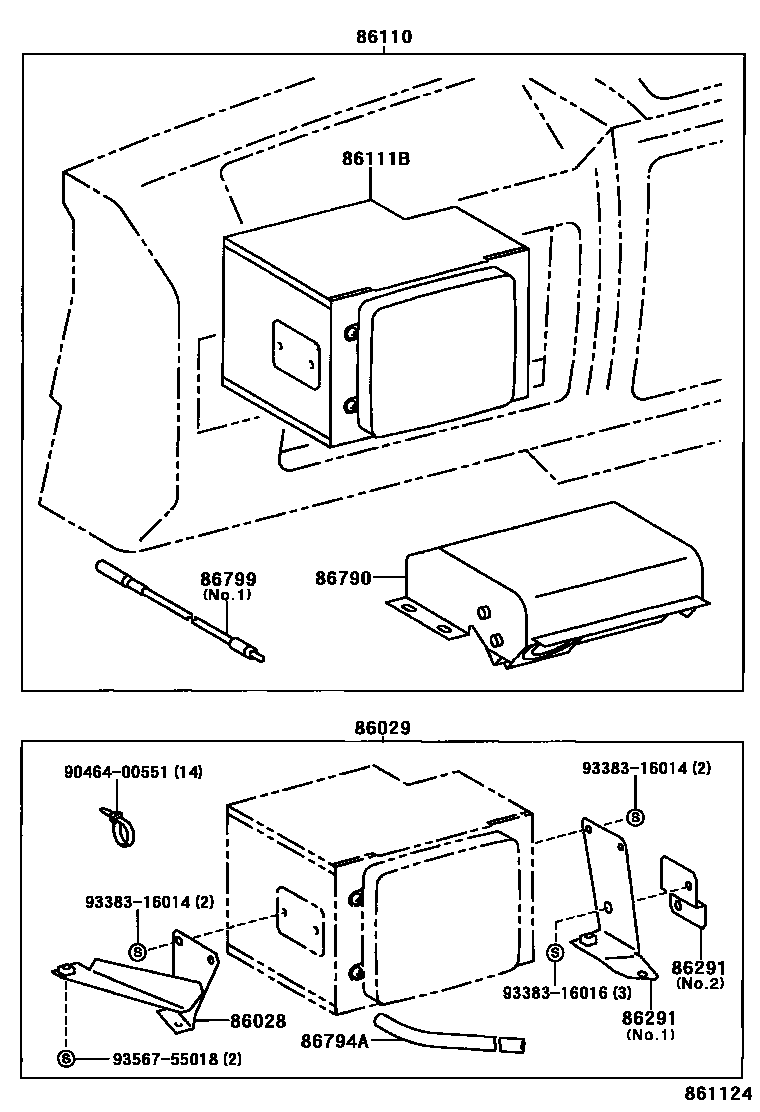

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86028BRACKET SUB-ASSY, TELEVISION

main86028-37010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

86029BRACKET SET, TELEVISION

main86029-37010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130..(DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199703

***

main86029-37011iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199703-199906

***

86110MULTI-DISPLAY ASSY

main86110-36010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

***

86111BDISPLAY, MULTI-DISPLAY

main86111-36010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

86291BRACKET, TELEVISION

main86291-37030iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

main86291-37040iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

86790CAMERA ASSY, TELEVISION

main86790-36010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505

86794COVER, TELEVISION CAMERA WIRE

main86794-95400×4iBU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

86794ACOVER, TELEVISION CAMERA WIRE, NO.2

main86794-37010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

86799WIRE, TELEVISION CAMERA

main86799-36010iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

main86799-36020iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

main86799-36030iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

main86799-36040iBU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3199505-199906

9046400551

main90464-00551

9338316014

main93383-16014

9338316016

main93383-16016

9356755018

main93567-55018

13 parts on this diagram · 2 diagrams in section
