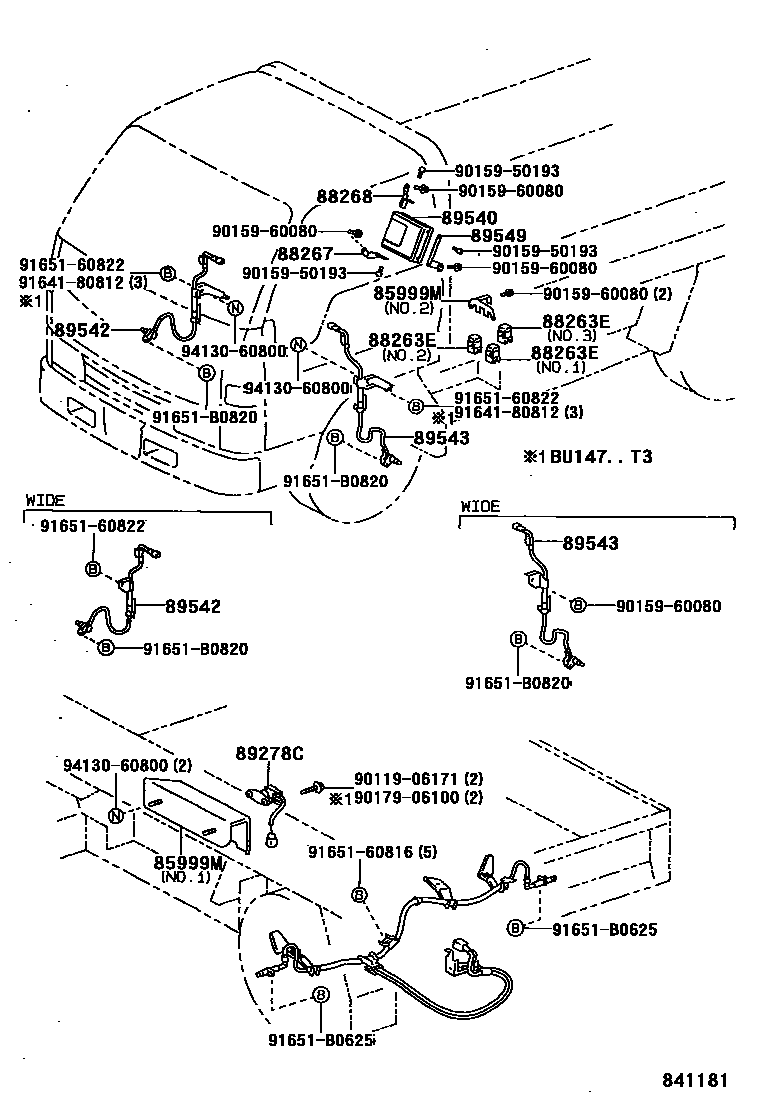

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-37040iBU142,147..T3..20T199505-199906

main85999-37050iBU142,147..T3..20T; BU212..T3,T4,TW1,TW4199505-199906

88263ERELAY, SKID CONTROL NO.2

main88263-37030iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

main88263-37040iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

main88263-37050iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-37020iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-37020iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

89278CRELAY, SKID CONTROL

main89278-36020iBU142,147..T3..20T199505-199906

main89278-37010iBU212..T3,T4,TW1,TW4199505-199906

89540COMPUTER ASSY, SKID CONTROL

main89541-37010iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

89542SENSOR, SPEED, FRONT RH

main89542-37010iBU142..T3..20T199505-199906

main89542-37020iBU212..T3,T4,TW1,TW4199505-199906

main89542-37030iBU147..T3199708-199905

89543SENSOR, SPEED, FRONT LH

main89543-37010iBU142..T3..20T199505-199906

main89543-37020iBU212..T3,T4,TW1,TW4199505-199906

main89543-37030iBU147..T3199708-199905

89549BRACKET, SKID CONTROL COMPUTER

main88269-37010iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

9011906171

main90119-06171

9015950193

main90159-50193

9015960080

main90159-60080

9017906100

main90179-06100

9164180812

main91641-80812

9165160816

main91651-60816

9165160822

main91651-60822

91651B0625

main91651-B0625

91651B0820

main91651-B0820

9413060800

main94130-60800

19 parts on this diagram · 2 diagrams in section
