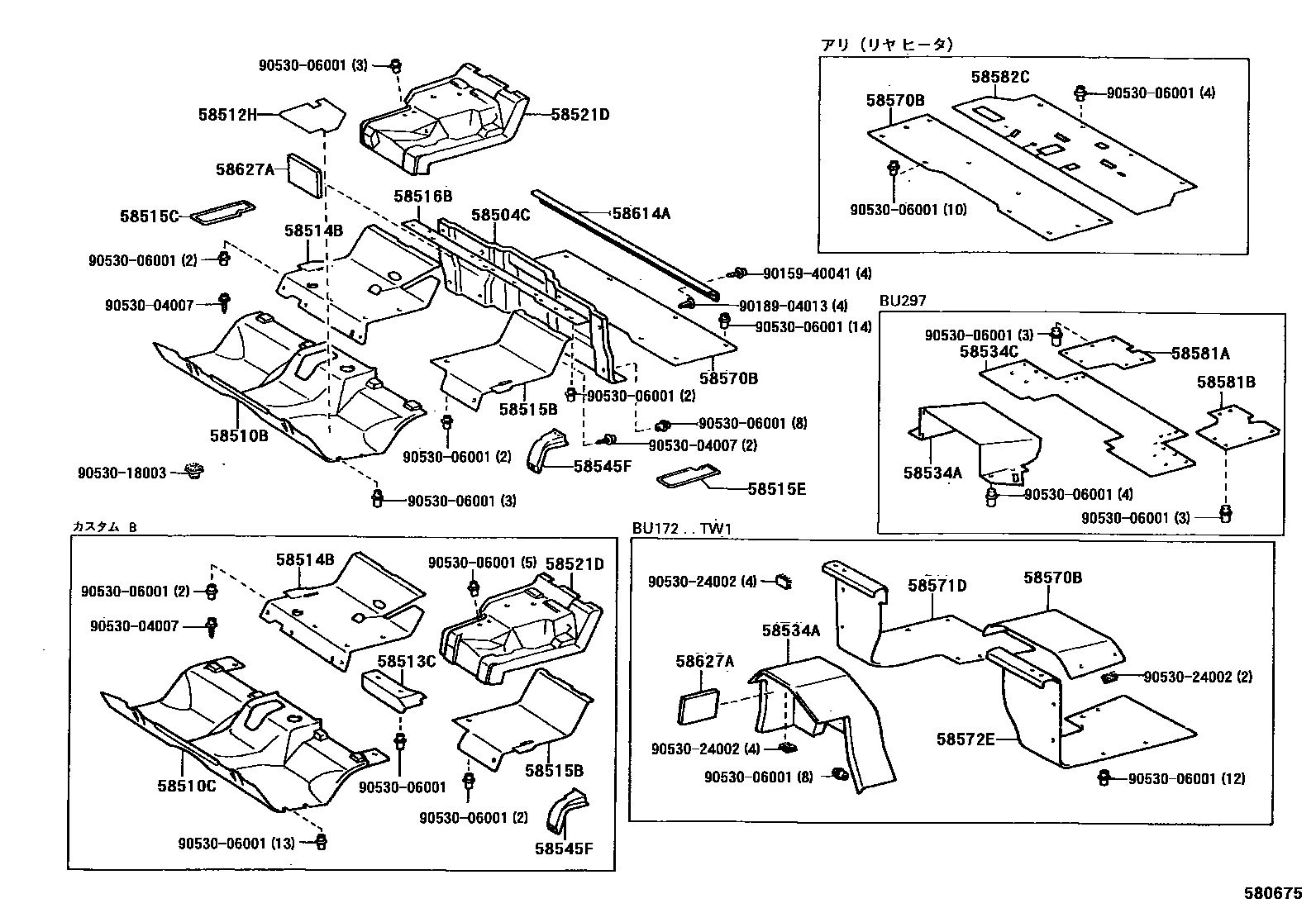

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58504CMAT SUB-ASSY, HEADER

main58504-37020-B2iBU102..IV4199507-199905

GRAY,TRIM1#

main58504-37030-B2iBU102..IV4199507-199905

main58504-37040-B0iRZU100..06S199708-200005

BLUISH GRAY,TRIM1#

main58504-37060-B0iBU212..06S,07S199604-199905

GRAY,TRIM1#

main58504-37080-B0iBU297199701-199905

GRAY,TRIM1#

main58504-92606-B0iBU212..07S199505-199604

GRAY,TRIM1#

main58504-95021-B0iBU12#;BU10#,142,147,RZU100..06S..(CBU,IV3)199505-199708

GRAY,TRIM1#

58510BMAT, FRONT FLOOR, FRONT

main58510-37100-B0iXZU130199510-199703

BLUISH GRAY,TRIM1#

main58510-37110-B0iBU10#,112,12#,13#,14#,RZU100199505-199703

BLUISH GRAY,TRIM1#

main58510-37120-B0iBU202,212,222199505-199703

BLUISH GRAY,TRIM1#

main58510-37220iBU172..05S199703-199708

main58510-37220-B0iBU172,182..T4,TW1199708-199905

main58510-37260-B0iBU212,222..03S..6F199708-199906

main58510-37310-B0iBU297199701-199905

BLUISH GRAY,TRIM1#

main58510-37370-B0iBU102..T5;BU100,140..WT..CBU;BU142..30T..DSL..5F; BU122199703-199708

main58510-37380-B0iBU172,182..T4,TW1199708-199905

BLUISH GRAY,TRIM1#

main58510-37410-B0iBU212,222..6F;BU212..(06S,07S)..5F199703-199906

BLUISH GRAY,TRIM1#

main58510-37430-B0iBU212,222..03S..6F199708-199906

main58510-37440-B0iXZU130; XZU140199708-199905

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-37140-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main58510-37200-B0iBU202,212,222..03S199505-199610

main58510-37210-B1iXZU130199510-199610

main58510-37230-B0iBU162,172,182..02S,03S199505-199610

main58510-37250-B0iXZU130199610-199703

main58510-37270-B0iBU132..CBU..5F;BU102..20T..4FC;BU107,147..T2,T4;BU132..(T3,T4)..IV3;BU102,137..T4..20T..5F;RZU100..TR..03S..(EFI,LPG);BU102..(DM2,DM3,DM5,T2,T3,T5)..DSL..5F;BU100,112,140,142..(DM7,DM8,T1,T2,T3,T4)..(4FC,5F)199610

main58510-37280-B0iBU162;BU172,182..T3199610

main58510-37290-B0iBU202,212,222..03S..(4FC,5F)199610-199905

main58510-37390-B0iBU132..CBU..5F;BU102..20T..4FC;BU107,147..T2,T4;BU132..(T3,T4)..IV3;BU102,137..T4..20T..5F;BU102..(DM2,DM3,DM5,T2,T3)..DSL..5F;BU100,112,140,142,RZU100..(DM7,DM8,T1,T2,T3,T4)..(4FC,5F); BU142..6F;BU137..4FC;RZU100..DM5;BU107,147..T3;BU102..T4..30T;BU102..T3..4FC;BU132..CBU..4FC;BU102..T3..LPGB;BU105,145,RZU140..03S199708

main58510-37400-B0iBU172,182..T4199708-199905

main58510-37420-B0iBU212,222..03S..5F199703-199708

main58510-37450-B0iXZU130; XZU140199708-199905

58512HMAT, FLOOR, FRONT LH

main58512-37010iBU132..T3,T4;BU10#,112,120,137,14#,162,172,182,RZU100,140,XZU130,140199708

main58512-37020iBU202,212,222199708

58513CMAT, FLOOR, FRONT CENTER

main58513-37010-B0iBU10#,112,132,14#,202,212,222,RZU100..03S199505-199610

main58513-37050-B0iRZU100..(DM5,T2,T3,T4)..(EFI,LPG);BU10#,112,13#,14#,202,212,222,RZU140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610

58514BMAT, FLOOR, REAR RH

main58514-37010-B0iBU10#,112,12#,13#,14#,RZU100,140199505-200005

main58514-37020-B0iBU202,212,222,297..175T,20T199505-199906

main58514-37030-B1iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main58514-37050-B1iBU202,212,222..03S..20T199505-199906

main58514-37060-B1iBU162,172,182,XZU130,140..02S,03S199505-199906

BLUISH GRAY,TRIM1#

main58514-37080-B0iBU172..05S199505-199905

BLUISH GRAY,TRIM1#

58515BMAT, FLOOR, REAR LH

main58515-25010-B1iBU10#,112,12#,13#,14#,RZU100,140199505-200005

main58515-25020-B0iBU100,102,RZU100..DM6199505-200005

main58515-37010-B1iBU202,212,222,297199505-199906

main58515-37040-B1iBU162,172,182,XZU130,140..02S,03S199505-199906

BLUISH GRAY,TRIM1#

main58515-37050-B0iBU212,222..03S..6F199708-199906

main58515-37060-B0iBU172..05S199505-199905

BLUISH GRAY,TRIM1#

58515CMAT, FRONT FLOOR, REAR NO.1

main58515-95404-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

GRAY,TRIM1#

58515EMAT, FRONT FLOOR, REAR NO.1, LH

main58515-37070-B0iBU297199701-199905

GRAY,TRIM1#

58516BMAT, FRONT FLOOR, REAR NO.2

main58516-25010-B0iBU10#,142,147..06S199708-199905

BLUISH GRAY,TRIM1#

main58516-37010-B1iBU102..IV4199507-199905

main58516-37020-B1iBU12#199505-199905

BLUISH GRAY,TRIM1#

main58516-37030-B1iBU212..07S199505-199604

BLUISH GRAY,TRIM1#

main58516-37031-B1iBU212,297..TW1,TW4199604-199905

BLUISH GRAY,TRIM1#

main58516-37040-B1iRZU100..06S199708-200005

BLUISH GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-37010-B1iBU10#,112,12#,13#,14#,RZU100,140199505

BLUISH GRAY,TRIM1#

main58521-37020-B1iBU202,212,222199505

BLUISH GRAY,TRIM1#

main58521-37030-B1iBU10#,112,132,14#,RZU100..03S199505-199610

main58521-37040-B0iBU172..05S199505-199905

BLUISH GRAY,TRIM1#

main58521-37070-B1iBU202,212,222..03S199505-199610

main58521-37080-B2iBU162,172,182,XZU130,140..02S,03S199505

BLUISH GRAY,TRIM1#

main58521-37100-B1iBU202,212,222..03S..(4FC,5F)199505-199905

main58521-37160-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610

main58521-37170-B0iBU202,212,222..03S..20T199610

main58521-37180-B0iBU297199701-199905

BLUISH GRAY,TRIM1#

58534AMAT, TRANSMISSION COVER

main58534-37010-B2iBU172..05S199505-199905

GRAY,TRIM1#

main58534-37020-B0iBU297199701-199905

GRAY,TRIM1#

58534CMAT, TRANSMISSION COVER

main58534-37030-B0iBU297199701-199905

GRAY,TRIM1#

58545FCOVER, ENGINE SERVICE HOLE CATCH

main58545-37010-B1iBU202,212,222,297199505-199906

BLUISH GRAY,TRIM1#

main58545-37020-B1iBU202,212,222..03S199505-199610

main58545-37030-B0iBU202,212,222..03S..20T199610-199906

58570BMAT ASSY, REAR FLOOR

main58570-37010-B2iBU172..05S199505-199905

GRAY,TRIM1#

main58581-37010-B2iBU102..IV4199507-199905

GRAY,TRIM1#

main58581-37020-B2iBU102..IV4199507-199905

main58581-37030-B0iRZU100..06S199708-200005

BLUISH GRAY,TRIM1#

main58581-92612-B0iBU212..06S,07S199505-199905

GRAY,TRIM1#

main58581-92613-B0iBU212..06S,07S199505-199905

main58581-92614-B0iBU12#..03S199505-199905

GRAY,TRIM1#

main58581-92616-B0iBU120..06S199505-199905

main58581-95406-B0iBU10#,142,147,RZU100..06S..(CBU,IV3)199505-199708

GRAY,TRIM1#

main58581-95407-B0iBU10#,142,147,RZU100..06S..(CBU,IV3)199505-199708

mainC326192502B0iBU120..03S199505-199905

mainC326192503B0iBU120..06S199505-199905

58571DMAT, REAR FLOOR, FRONT RH

main58571-37010-B2iBU172..05S199505-199905

GRAY,TRIM1#

58572EMAT, REAR FLOOR, FRONT

main58572-37010-B2iBU172..05S199505-199905

GRAY,TRIM1#

58581AMAT, REAR FLOOR

main58581-37050-B0iBU297199701-199905

GRAY,TRIM1#

58581BMAT, REAR FLOOR, LH

main58581-37060-B0iBU297199701-199905

GRAY,TRIM1#

58582CMAT, REAR FLOOR, REAR

main58582-92601-B0iBU212..06S,07S199505-199708

main58582-95400-B0iBU105..06S;BU107..06S..4FC199708-199905

GRAY,TRIM1#

58614APLATE, MAT SET, NO.4

main58614-95A01-B0iBU12#;BU10#,142,147,RZU100..06S199505-199708

GRAY,TRIM1#

58627APAD, CENTER FLOOR SILENCER, REAR

main58627-92605×2iBU102,172..TW1199505-199905

9015940041

main90159-40041

9018904013

main90189-04013

9053004007

main90530-04007

9053006001

main90530-06001

9053018003

main90530-18003

9053024002

main90530-24002

28 parts on this diagram · 3 diagrams in section
