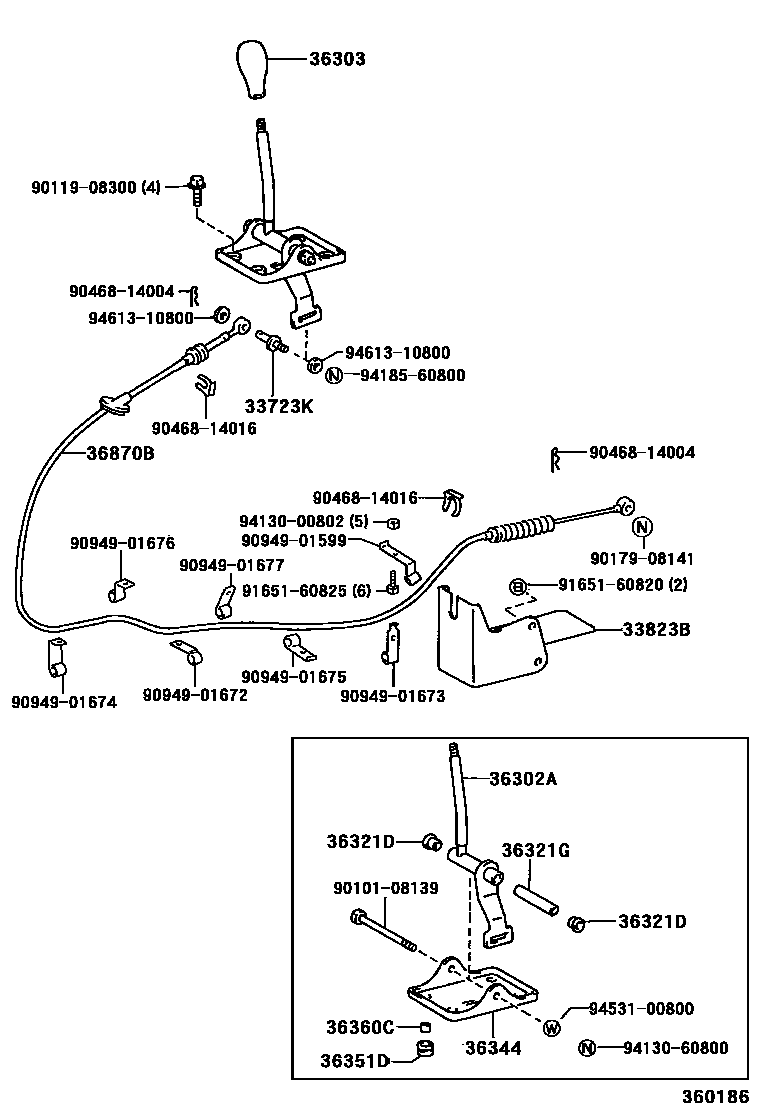

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1

33723KSWIVEL, CONNECTING ROD

main33723-28010iBU162,172,182,297199505

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-37140iBU162,172,182199505

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main36302-37020iBU162,172,182,297199505

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-37010-B0iBU162,172,182199505

BLUISH GRAY,TRIM1#

main36303-60180-B0iBU297199701-199905

GRAY,TRIM1#

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006×2iBU162,172,182,297199505

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08115iBU162,172,182,297199505

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-36010iBU162,172,182,297199505

36351DGROMMET (FOR HIGH & LOW SHIFT ROD)

main90480-13012×4iBU162,172,182,297199505

36360CCOLLAR (FOR TRANSFER SHIFT LEVER RETAINER)

main90387-09011×4iBU162,172,182,297199505

36870BCABLE ASSY, TRANSFER CONTROL

main36870-37020iBU162,172,182..02S,03S199505

main36870-37030iBU172..05S199505-199905

main36870-37040iBU297199701-199905

main36870-37050iBU297199701-199905

9010108139

main90101-08139

9011908300

main90119-08300

9017908141

main90179-08141

9046814004

main90468-14004

9046814016

main90468-14016

9094901599

main90949-01599

9094901672

main90949-01672

9094901673

main90949-01673

9094901674

main90949-01674

9094901675

main90949-01675

9094901676

main90949-01676

9094901677

main90949-01677

9165160820

main91651-60820

9165160825

main91651-60825

9413000802

main94130-00802

9413060800

main94130-60800

9418560800

main94185-60800

9453100800

main94531-00800

9461310800

main94613-10800

29 parts on this diagram · 3 diagrams in section
