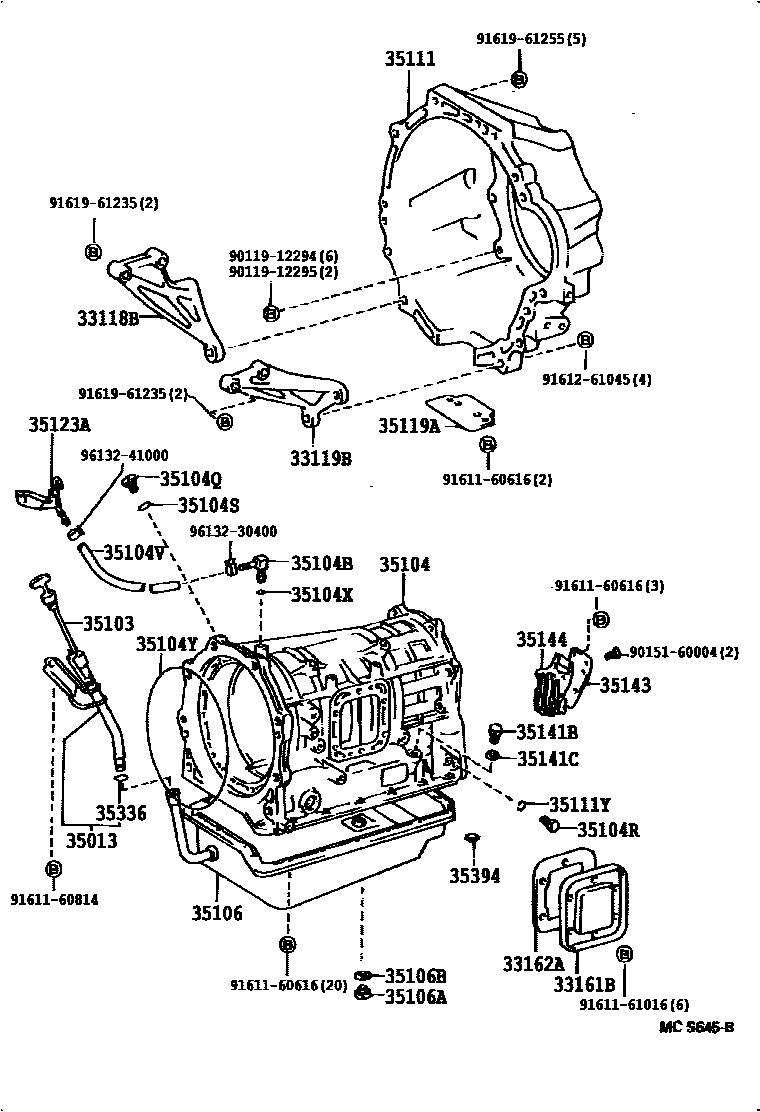

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A443E 0002 1A443F

33118BPLATE, STIFFENER, RH(ATM)

main33118-36021iBU102,107,112,13#,142,147,212,297..4FC199505

33119BPLATE, STIFFENER, LH(ATM)

main33119-36042iBU102,107,112,13#,142,147,212,297..4FC199505

33161BCOVER, TRANSMISSION POWER TAKE-OFF

main33161-36020iBU102,107,112,13#,142,147,212..TR..4FC199505-199906

33162AGASKET, TRANSMISSION POWER TAKE-OFF

main33162-36030iBU102,107,112,13#,142,147,212..TR..4FC199505-199906

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-36090iBU297199701-199905

main35013-37010iBU102,107,112,13#,142,147,212..4FC199505

main35013-37020iBU297199701-199905

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-36070iBU297199701-199905

main35103-37010iBU102,107,112,13#,142,147,212..4FC199505

main35103-37020iBU297199701-199905

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-37010iBU102,107,112,13#,142,147,212..4FC199505-199906

main35104-65020iBU297199701-199905

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-13001iBU102,107,112,13#,142,147,212..TR..4FC199505-199906

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001×7iBU297199701-199905

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-10189iBU102,107,112,13#,142,147,212..TR..4FC199505-199906

35104VHOSE (FOR BREATHER PLUG)

main90445-11083iBU297199701-199905

main90445-11133iBU102,107,112,13#,142,147,212..4FC199505-199906

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-99067iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-37010iBU102,107,112,13#,142,147,212..4FC199505-199906

main35106-65010iBU297199701-199905

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-65010iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×7iBU297199701-199905

35119ACOVER, TRANSMISSION HOUSING

main35119-36010iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35123ASKIRT, TRANSMISSION BREATHER

main35123-37010iBU102,107,112,13#,142,147,212..4FC199505

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-16010iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35141CWASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)

main90201-16013iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35143COVER, TRANSMISSION CASE, REAR

main35143-36011iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-60011iBU102,107,112,13#,142,147,212,297..4FC199505-199906

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iBU102,107,112,13#,142,147,212..4FC199505

main90301-09173iBU297199701-199905

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iBU297199701-199905

9011912294

main90119-12294

9011912295

main90119-12295

9015160004

main90151-60004

9161160616

main91611-60616

9161160814

main91611-60814

9161161016

main91611-61016

9161261045

main91612-61045

9161961235

main91619-61235

9161961255

main91619-61255

9613230400

main96132-30400

9613241000

main96132-41000

38 parts on this diagram · 2 diagrams in section
