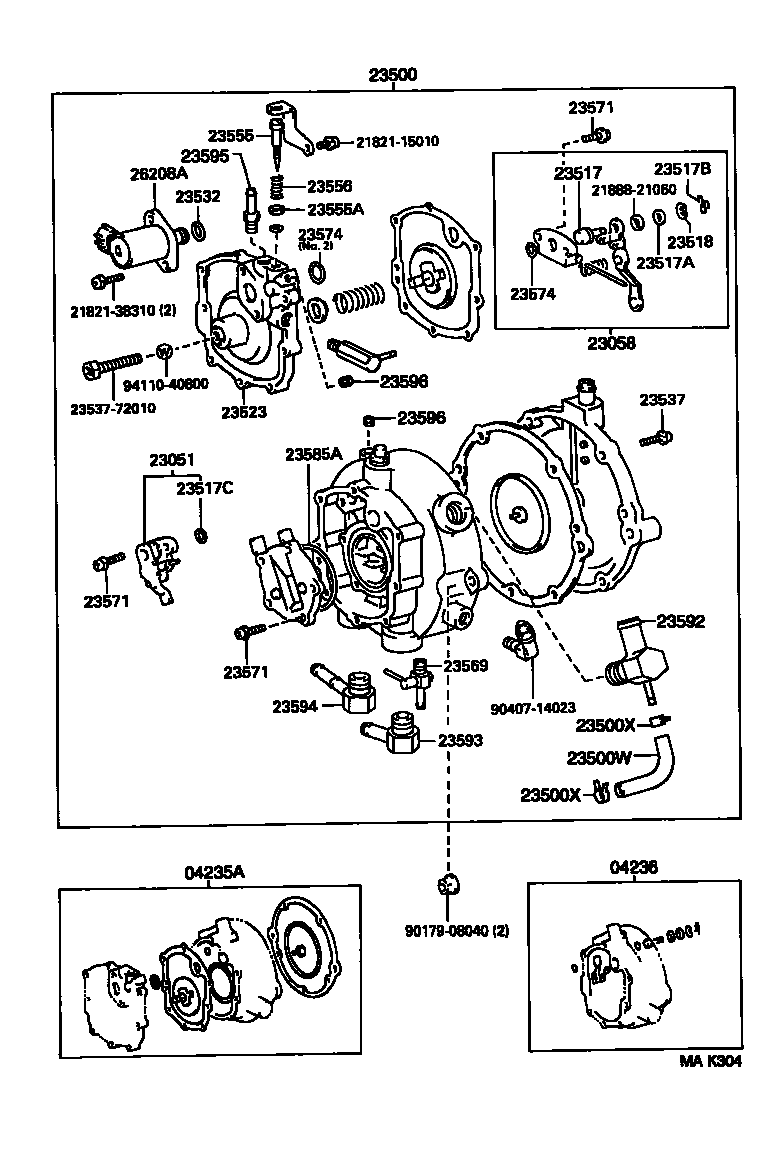

LPG OR CNG REGULATOR

0001 1 0003 1

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-75010i15BFP..BU102,142199605-199905

04236VALVE KIT, LPG REGULATOR

main04236-75020i15BFP..BU102,142199605-199905

23051VALVE SUB-ASSY, 1ST

main23051-72010i15BFP..BU102,142199605-199905

23058VALVE SUB-ASSY, 2ND

main23058-48010i15BFP..BU102,142199605-199905

main23058-75010i3RZFP..RZU100199505-199811

23500REGULATOR ASSY, LPG(CNG)

main23500-48010i15BFP..RZU100199905

main23500-75010i3RZFP..RZU100..DM6199610-199708

main23500-75020i3RZFP..RZU100..DM6; 3RZFP..RZU100..TR199610-199708

23500WHOSE, FUEL(FOR LPG REGULATOR)

main95333-04010i15BFP..BU102,142199605-199905

23500XCLIP(FOR LPG REGULATOR FUEL HOSE)

main96132-30400×2i15BFP..BU102,142199605-199905

23517VALVE, ELASTIC FACE

main23517-75010i15BFP..BU102,142199605-199905

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i15BFP..BU102,142199605-199905

23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)

main21792-69210i3RZFP..RZU100199505-199811

main90079-63001i15BFP..BU102,142199605-199905

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020i15BFP,3RZFP..RZU100199505

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i15BFP,3RZFP..RZU100199505

23523COVER, 1ST REGULATOR

main23523-70040i15BFP..BU102,142199605-199905

main23523-73130i3RZFP..RZU100199505-199809

23532RING, O, NO.2(FOR BULB)

main23532-40010×2i15BFP..BU102,142199605-199905

23537SCREW(FOR 2ND REGULATOR COVER SET)

main21821-31140×15i15BFP..BU102,142199605-199905

23555SCREW, IDLE ADJUST

main23555-73130i15BFP..BU102,142199605-199905

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i15BFP..BU102,142199605-199905

23556SPRING, IDLE ADJUST SCREW

main21723-21030i15BFP..BU102,142199605-199905

23569COCK, DRAIN

main23569-40010i15BFP..BU102,142199605-199905

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×4i15BFP..BU102,142199605-199905

23574RING, O, NO.1(FOR BULB)

main23574-44021i15BFP..BU102,142199605-199905

main23574-72010i15BFP,3RZFP..RZU100199505

23585ARING, O(FOR PREHEATER)

main23585-75010i15BFP..BU102,142199605-199905

23592UNION, NO.2, FUEL HOSE

main23592-48010i15BFP..RZU100199905

main23592-75010i3RZFP..RZU100199505

23593UNION, NO.3

main23593-75010i15BFP..BU102,142199605-199905

23594UNION, NO.4, WATER HOSE

main23594-75010i15BFP..RZU100..T3199905

23595UNION, NO.5

main23119-45020i15BFP..BU102,142199605-199905

23596PLUG(FOR LPG REGULATOR BODY)

main23596-72010i15BFP..BU102,142199605-199905

26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)

main26206-73130i15BFP..BU102,142199605-199905

main26208-73131i15BFP..RZU100199905

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

2188821060WASHER(FOR POSITIONER VALVE SET)

main21888-21060

2353772010SCREW(FOR 2ND REGULATOR COVER SET)

main23537-72010

9017908040

main90179-08040

9040714023

main90407-14023

9411040800

main94110-40800

35 parts on this diagram · 2 diagrams in section
