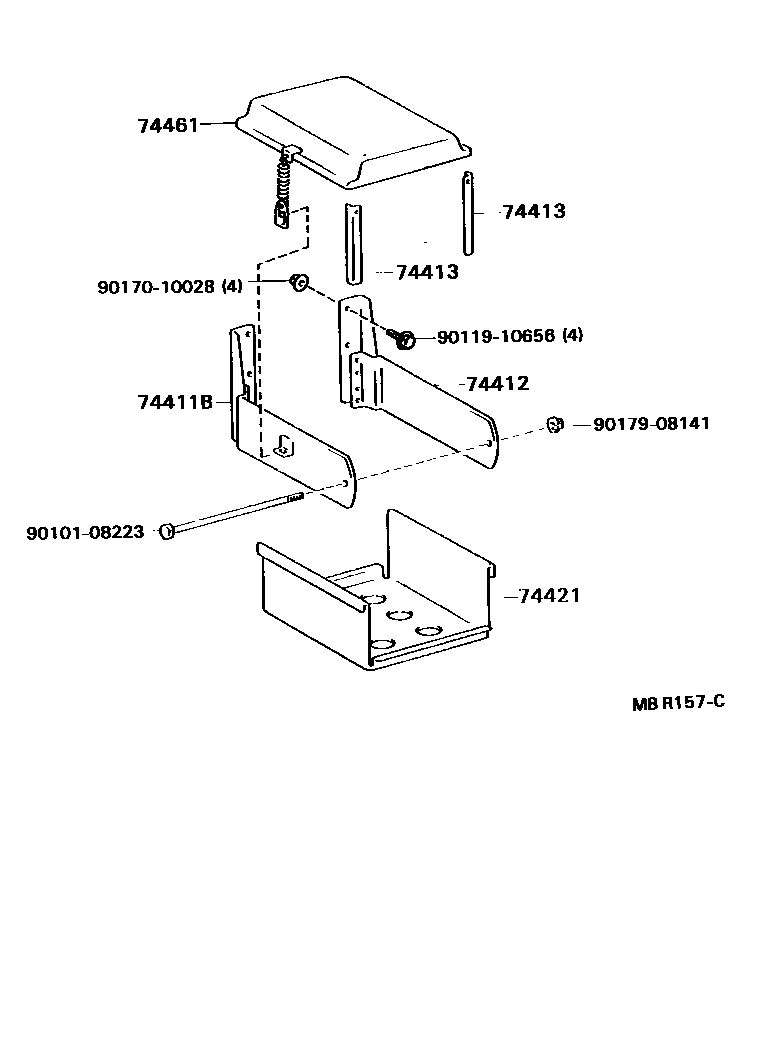

BATTERY CARRIER

0001 1 0002 1 0003 1��������

74411BBRACKET, BATTERY, FRONT

main74401-36280iBU66,73..IV4199005-199505

main74401-36330iBU66..IV4198808-199005

74412BRACKET, BATTERY, REAR

main74402-36210iBU66..T3..5F..WT..(20T,30T)..IV3199109-199309

main74402-36230iBU66..IV4198808-199005

74413BOLT, BATTERY CLAMP

main74451-36050×2iBU66..T3..5F..WT..(20T,30T)..IV3199309-199505

main74451-36070×4iBU6#,72,73,74,78,8#,9#..CBU,IV3; BU70198808-199505

main74451-36090×2iBU66..T3..5F..WT..(20T,30T)..IV3199210-199309

74421HANGER, BATTERY

main74421-37011iBU66..T3..5F..WT..(20T,30T)..IV3199109-199309

74461COVER, BATTERY

main74405-36050iBU66,73..IV4198808-199505

main74461-36100iBU87,88..03S;BU6#,72,73,74,78,83,84,85,9#..(20T,275,30T,35T)..(DSL,TD)198808-199505

main74461-36110iBU66,87,88..06S..(CBU,IV3)198904-199309

9010108223

main90101-08223

9011910656

main90119-10656

9017010028

main90170-10028

9017908141

main90179-08141

9 parts on this diagram · 3 diagrams in section
