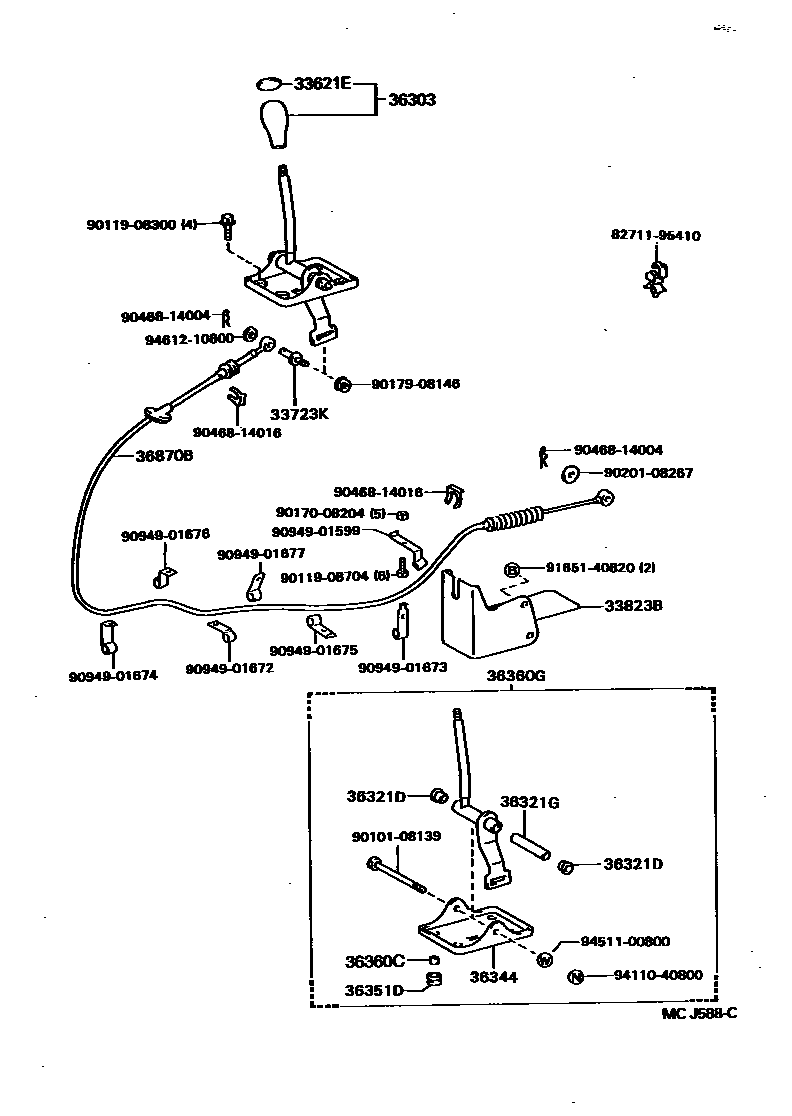

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33621ELABEL, TRANSAXLE OIL NOTICE

33723KSWIVEL, CONNECTING ROD

main33723-28010iBU72,73,74198910-199505

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-36080iBU72,73,74198910-199505

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-36010-04iBU72,74..TOY198910-199109

BLUE,TRIM8#

main36303-36010-06iBU72,73,74..DYN198910-199109

BROWN,TRIM4#

main36303-36010-B0iBU72,73,74199109-199505

GRAY,TRIM1#

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006×2iBU72,73,74198910-199505

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08115iBU72,73,74198910-199505

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-36010iBU72,73,74198910-199505

36351DGROMMET (FOR HIGH & LOW SHIFT ROD)

main90480-13012×4iBU72,73,74198910-199505

36360CCOLLAR (FOR TRANSFER SHIFT LEVER RETAINER)

main90387-09011×4iBU72,73,74198910-199505

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-36010iBU72,73,74198910-199505

36870BCABLE ASSY, TRANSFER CONTROL

main36870-36010iBU72,73,74198910-199505

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

9010108139

main90101-08139

9011908300

main90119-08300

9011908704

main90119-08704

9017008204

main90170-08204

9017908146

main90179-08146

9020108267

main90201-08267

9046814004

main90468-14004

9046814016

main90468-14016

9094901599

main90949-01599

9094901672

main90949-01672

9094901673

main90949-01673

9094901674

main90949-01674

9094901675

main90949-01675

9094901676

main90949-01676

9094901677

main90949-01677

9165140820

main91651-40820

9411040800

main94110-40800

9451100800

main94511-00800

9461210800

main94612-10800

31 parts on this diagram · 2 diagrams in section
