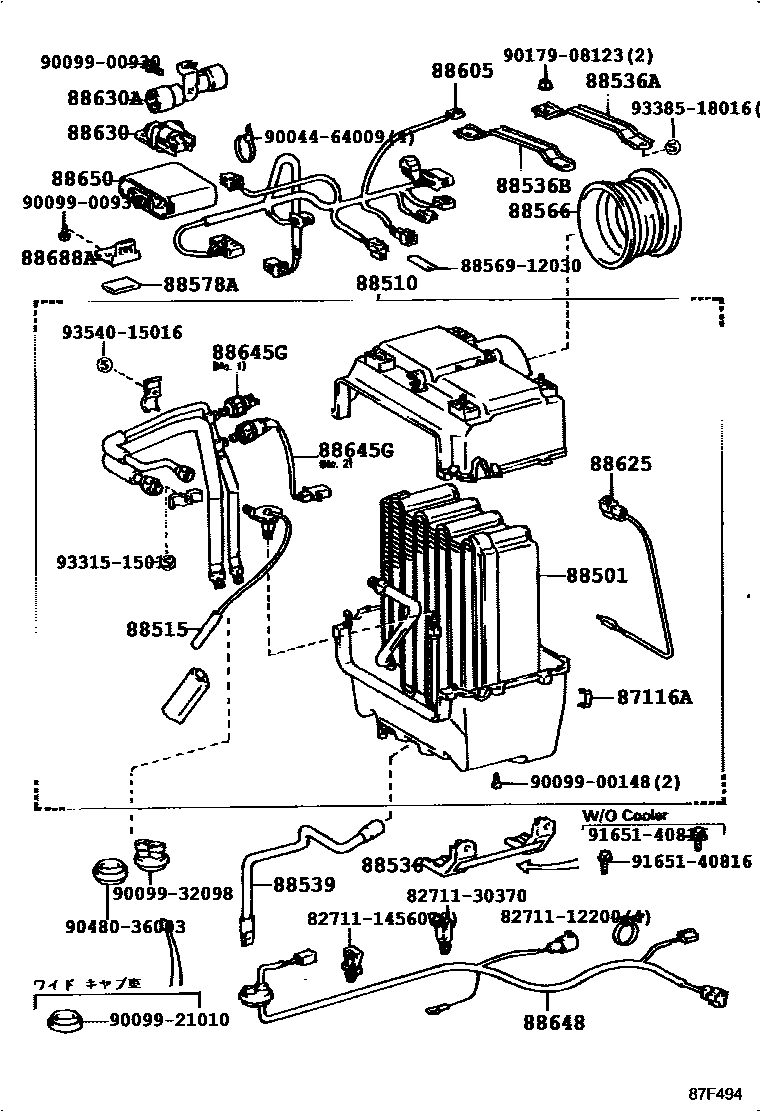

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×6iBU6#,70,8#,9#..CBU,IV3198708-198808

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-95403iBU6#,70,8#,9#..CBU,IV3198708-198808

88510UNIT ASSY, COOLER

main88510-95401iBU85,9#..5F..03S; BU85..06S;BU85..4FC;BU61,62,64,81,82..CBU,IV3198708-198808

main88510-95405iBU6#,80,81,82..IV3198708-198808

88515VALVE, COOLER EXPANSION

main88515-16031iBU6#,70,8#,9#..CBU,IV3198708-198808

88536BRACKET, COOLING UNIT, NO.1

main88536-95402iBU85,9#..5F..03S; BU85..06S;BU85..4FC;BU61,62,64,81,82..CBU,IV3198708-198808

main88536-95403iBU61,81; BU64,82;BU62..DMP;BU62..275,30T;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iBU61,81; BU64,82;BU62..DMP;BU62..275,30T;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

main88536-95408iBU85,9#..5F..03S; BU85..06S;BU85..4FC198708-198808

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iBU61,81; BU64,82;BU62..DMP;BU62..275,30T;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

main88536-95409iBU85,9#..5F..03S; BU85..06S;BU85..4FC198708-198808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95409iBU60..WT..20T..IV3; BU62..TR..5F..WT..20T..IV3; BU70,80;BU62..4FC;BU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU198708-198808

main88539-95411iBU85,9#..5F..03S; BU85..06S;BU85..4FC198708-198808

88566DUCT, COOLER AIR, NO.1

main88566-95407iBU61,81; BU64,82;BU62..DMP;BU62..275,30T;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

main88566-95408iBU85,9#..5F..03S; BU85..06S;BU85..4FC198708-198808

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iBU60..WT..20T..IV3; BU62..4FC;BU70,80,85,9#;BU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU; BU62..TR..5F..WT..20T..IV3198708-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95405iBU61,81; BU64,82;BU62..DMP;BU62..275,30T;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

main88605-95409iBU85,9#198708-198808

88625THERMISTOR, COOLER, NO.1

main88625-95A00iBU6#,70,8#,9#..CBU,IV3198708-198808

88630RELAY ASSY, COOLER

main88630-95400iBU60..WT..20T..IV3; BU62..TR..5F..WT..20T..IV3; BU70,80;BU62,85..4FC;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU60,85..T1,TW1,TW2,TW4198708-198808

88630ARELAY ASSY, COOLER

main88630-95402iBU61,81; BU62..DMP;BU64,82,9#;BU62..275,30T;BU85..5F..03S;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198711-198808

88645GSWITCH, PRESSURE

main88645-17010iBU6#,70,8#,9#..CBU,IV3198708-198808

NO.2

main88645-95J00iBU6#,70,8#,9#198708-198808

NO.1

88648WIRING, COOLER, NO.1

main88648-95413iBU60..WT..20T..IV3; BU62..TR..5F..WT..20T..IV3; BU70,80;BU62..4FC;BU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU198708-198808

main88648-95415iBU85,9#198708-198808

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-95A00iBU62..DMP;BU62..275,30T;BU85..5F..03S;BU61,64,81,82,9#;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198708-198711

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iBU6#,70,8#,9#..CBU,IV3198708-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

9004464009

main90044-64009

9009900148

main90099-00148

9009900930

main90099-00930

9009921010

main90099-21010

9009932098

main90099-32098

9017908123

main90179-08123

9048036003

main90480-36003

9165140816

main91651-40816

9331515012

main93315-15012

9338518016

main93385-18016

9354015016

main93540-15016

33 parts on this diagram · 2 diagrams in section
