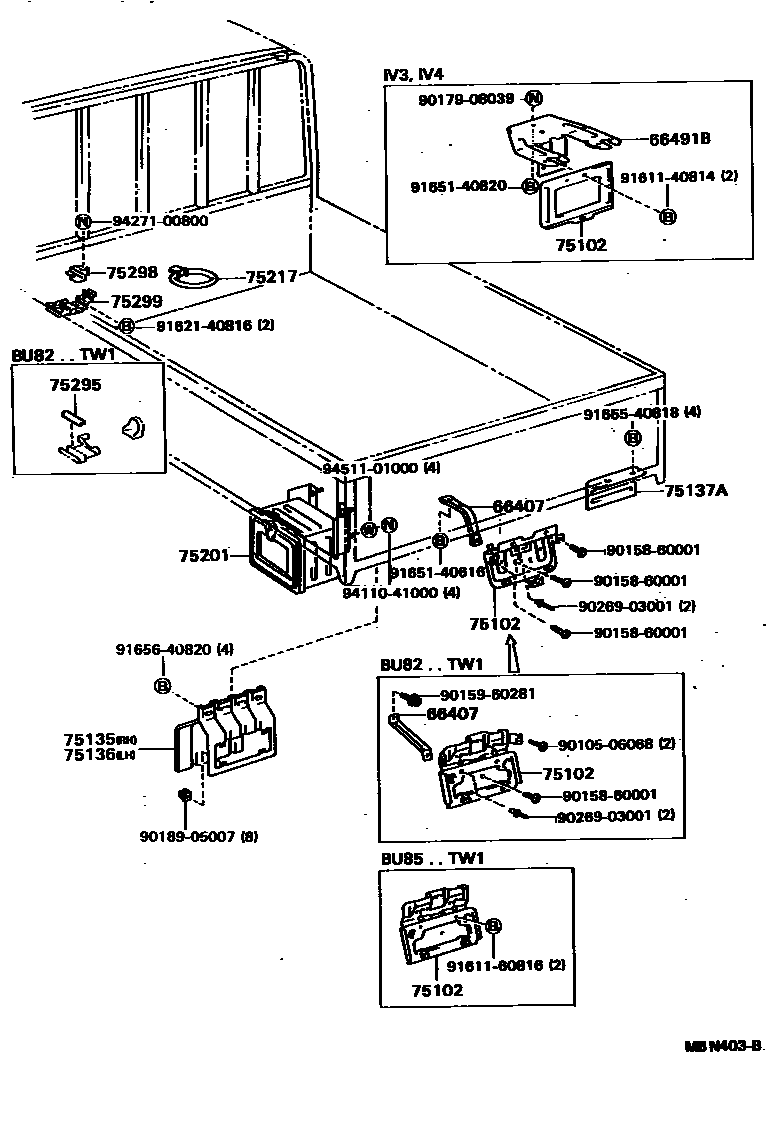

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-95011iBU60..(T1,TW1)..CBU198708-198808

main66493-92701iBU6#..T3..CBU198708-198808

main66493-92702iBU60,61,62..(T2,T4,TW2,TW4)..CBU198708-198808

main66493-92708iBU64..T3..CBU;BU60,62..T3..5F..ST..CBU198708-198808

main66493-92709iBU61..T2..CBU;BU60,62..(T2,T4)..5F..CBU198708-198808

main66493-92802iBU80,81,82..(T3,T4,TW1)..CBU198708-198808

main66493-92805iBU81,82..T2..CBU;BU85..(T2,T4)..CBU198708-198808

main66493-92806iBU90..T4..CBU198708-198808

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iBU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU61,62,64..TR..5F..20T..CBU; BU62..DMP..CBU;BU85..06S..IV3;BU82..(T3,TW1)..IV3;BU6#..(DM2,T1,T2,T3,T4,TW1,TW2,TW4)..(IV3,IV4)198708-198808

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92702iBU60,61,62..(T2,T4,TW2,TW4)..CBU198708-198808

main66490-92703iBU60,64..T3..WT..CBU198708-198808

main66490-92704iBU62..T3..CBU;BU60,61..T3..ST..CBU198708-198808

main66490-95018iBU60..(T1,TW1)..CBU198708-198808

main75102-25020iBU60,61,62..IV3,IV4; BU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU61,62,64..TR..5F..20T..CBU; BU62..DM2..IV3; BU64..T3..IV3; BU82..(T3,TW1)..IV3; BU85..06S..IV3198708-198808

main75102-92605iBU70198708-198808

main75102-92800iBU93,95;BU82..(T2,T4)..IV3;BU62,64..DM1,DM3,DM4;BU80,81,85,90,98..IV3;BU85,90..(T3,TW1)..CBU198708-198808

main75102-92801iBU80,81,82..CBU;BU85,90..(T2,T4)..CBU198708-198808

main75102-93100iBU62..DM2..CBU198708-198808

75135BRACKET, COMBINATION REAR LAMP, RH

main58378-92701iBU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU62..TR..5F..20T..CBU;BU61,64..(T2,T3)..WT..CBU198708-198808

main75105-92700iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,62,64,8#,90,93,95..TR..CBU198708-198808

main75105-93100iBU64..DMP..CBU198708-198808

main75105-93101iBU62..DMP198708-198808

75136BRACKET, COMBINATION REAR LAMP, LH

main58378-92701iBU6#..TR..WT..20T..CBU; BU60,62..T3..5F..ST..CBU198708-198808

main75105-92700iBU62..T3..CBU;BU60..WT..175..CBU;BU8#,90,93,95..CBU;BU60,61..T3..ST..CBU198708-198808

main75106-93100iBU64..DMP..CBU198708-198808

main75106-93101iBU62..DMP198708-198808

75137ACOVER COMBINATION

main75137-93100×2iBU62..DMP;BU64..DMP..CBU198708-198808

main75137-95400×2iBU60..(T1,TW1)..CBU198708-198808

75201BOX SUB-ASSY, TOOL W/STAY

main75021-93102iBU64..DMP198708-198808

main75021-93103iBU62..DM2198708-198808

main75021-93301iBU62..DM3198708-198808

main75210-92704iBU62..275,30T;BU60,61,62..ST..20T198708-198808

main75210-92705iBU60,61,62..T2,T4198708-198808

main75210-92706iBU60,62..T3..WT..20T198708-198808

main75210-92708iBU64..T3198708-198808

main75210-92804iBU8#,90,93,95..TR..03S198708-198808

75217BAND, TOOL BAG

main58705-92600×2iBU70..03S,06S198708-198808

main58705-92601iBU62..IV4;BU70..09S198708-198808

main58705-95A01iBU6#,8#,9#..CBU,IV3198708-198808

75295PROTECTOR, JACK SUPPORT

main75295-95400iBU82..06S198708-198808

75298PLATE, JACK HOLDER

main75298-95400iBU85..03S;BU6#,70,80,81,82,93,98..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4198708-198808

main75298-95401iBU90,95198708-198808

75299BASE, JACK HOLDER

main75209-95405iBU90,95198708-198808

main75299-92600iBU70..09S198708-198808

main75299-95400iBU60,62,64,82..(DM1,DM3,DM4,T3)..WT198708-198808

main75299-95401iBU61,80,81;BU60,62..T3..ST;BU60,62,82,85..(DM2,T1,T2,T4)..20T198708-198808

main75299-95402iBU85..V;BU85,93,98..T3,T4198708-198808

9010506068

main90105-06068

9015860001

main90158-60001

9015960281

main90159-60281

9017908039

main90179-08039

9018905007

main90189-05007

9026903001

main90269-03001

9161140814

main91611-40814

9161160816

main91611-60816

9162140816

main91621-40816

9165140616

main91651-40616

9165140820

main91651-40820

9165540818

main91655-40818

9165640820

main91656-40820

9411041000

main94110-41000

9427100800

main94271-00800

9451101000

main94511-01000

27 parts on this diagram · 5 diagrams in section
