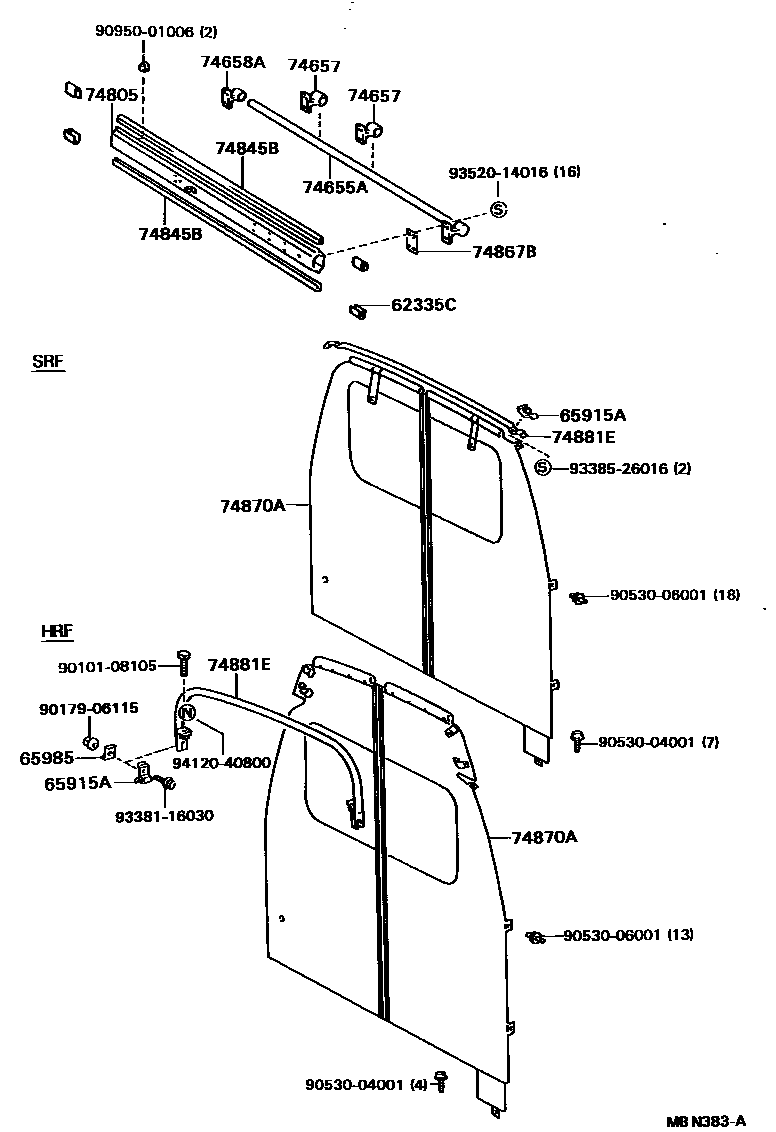

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

62335CCOVER, SEPARATOR BAR

main62335-92600-04×4iBU60,82,85..TOY..06S198708-198808

BLUE,TRIM8#

main62335-92600-06×4iBU60,62,70,82,85..DYN..(HRF,SRF,TW1,TW2,TW4)198708-198808

BROWN,TRIM4#

65915ABRACKET, CURTAIN RAIL

main65915-92600×2iBU70..SRF198708-198808

main65915-92601×2iBU70..HRF198708-198808

65985HOLDER, CURTAIN RAIL

main65985-92600×2iBU70..HRF198708-198808

74655ABAR, HAND RAIL

main74606-92600iBU62..IV4198708-198808

74657BRACKET, HAND RAIL, NO.1

main74657-92600×2iBU62..IV4198708-198808

74658ABRACKET, HAND RAIL, NO.2

main74658-92600iBU62..IV4198708-198808

74805SEPARATOR SUB-ASSY

main74805-92620iBU70..03S198708-198808

main74805-92621iBU70..06S,09S198708-198808

main74805-92626iBU62..IV4198708-198808

main74805-92627iBU85..06S198708-198808

main74805-95404iBU60,82..06S198708-198808

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-92602×2iBU85..06S198708-198808

main74845-95400-04×2iBU60,82..TOY..06S198708-198808

BLUE,TRIM8#

main74845-95400-06×2iBU60,62,70,82..DYN..(HRF,SRF,TW1,TW2,TW4)198708-198808

BROWN,TRIM4#

74867BSPACER, SEPARATOR, NO.1

main74867-92600×2iBU62..IV4198708-198808

74870ACURTAIN ASSY, SEPARATOR

main74870-92603iBU70..SRF198708-198808

main74870-92604iBU70..HRF198708-198808

74881ERAIL, SEPARATOR CURTAIN

main74881-92600iBU70..SRF198708-198808

main74881-92601iBU70..HRF198708-198808

9010108105

main90101-08105

9017906115

main90179-06115

9053004001

main90530-04001

9053006001

main90530-06001

9095001006

main90950-01006

9338116030

main93381-16030

9338526016

main93385-26016

9352014016

main93520-14016

9412040800

main94120-40800

20 parts on this diagram · 2 diagrams in section
