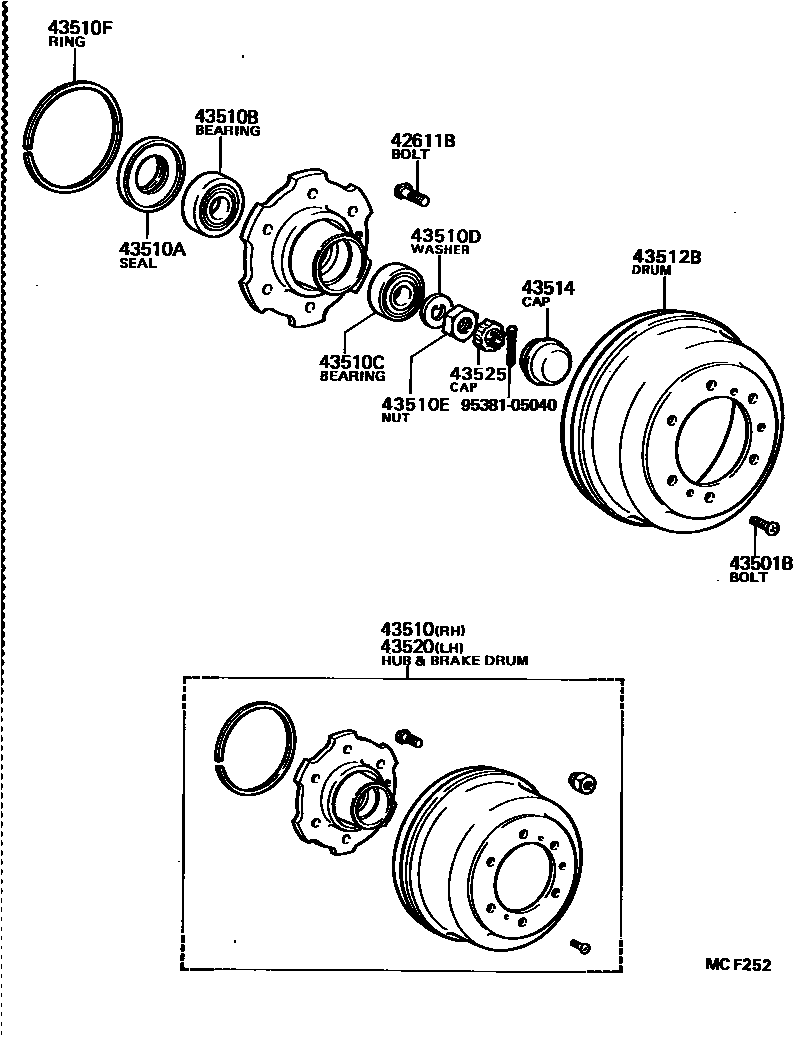

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1 0005 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024×6iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main90942-02025×6iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main90942-02045×5iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT; BU90,95198708-198808

main90942-02046×5iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT; BU90,95198708-198808

main90942-02050×6iBU60,61,62,80,81,82..T4,TW4198708-198808

main90942-02051×6iBU60,61,62,80,81,82..T4,TW4198708-198808

main90942-02061×6iBU60,80..T4,TW4; BU61,81..T4; BU62,82..T4198708-198808

main90942-02062×6iBU60,80..T4,TW4; BU61,81..T4; BU62,82..T4198708-198808

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main43510-36120iBU60,61,62,80,81,82..T4,TW4198708-198808

main43510-36131iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

main43510-36140iBU90,95198708-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001×2iBU90,95198708-198808

main90311-68001×2iBU6#,70,8#,93,98198708-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045×2iBU6#,70,8#,93,98198708-198808

main90368-50001×2iBU90,95198708-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001×2iBU6#,70,8#,93,98198708-198808

main90368-35001×2iBU90,95198708-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001×2iBU6#,70,8#,93,98198708-198808

main90214-33001×2iBU90,95198708-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001×2iBU6#,70,8#,93,98198708-198808

main90171-33001×2iBU90,95198708-198808

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065×2iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

43512DISC, FRONT

main43512-25050×2iBU60,61,62,80,81,82..T4,TW4198708-198808

main43512-36070×2iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(T3,TW1)..WT198708-198808

43512BDRUM, BRAKE

main43512-36060×2iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main43512-36090×2iBU60,61,62,80,81,82..T4,TW4198708-198808

main43512-36101×2iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

main43512-36110×2iBU90,95198708-198808

43514CAP, FRONT HUB GREASE

main43514-36030×2iBU6#,70,8#,93,98198708-198808

main43514-37020×2iBU90,95198708-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main43520-36120iBU60,61,62,80,81,82..T4,TW4198708-198808

main43520-36131iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

main43520-36140iBU90,95198708-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010×2iBU6#,70,8#,93,98198708-198808

9538105040

main95381-05040

15 parts on this diagram · 5 diagrams in section
