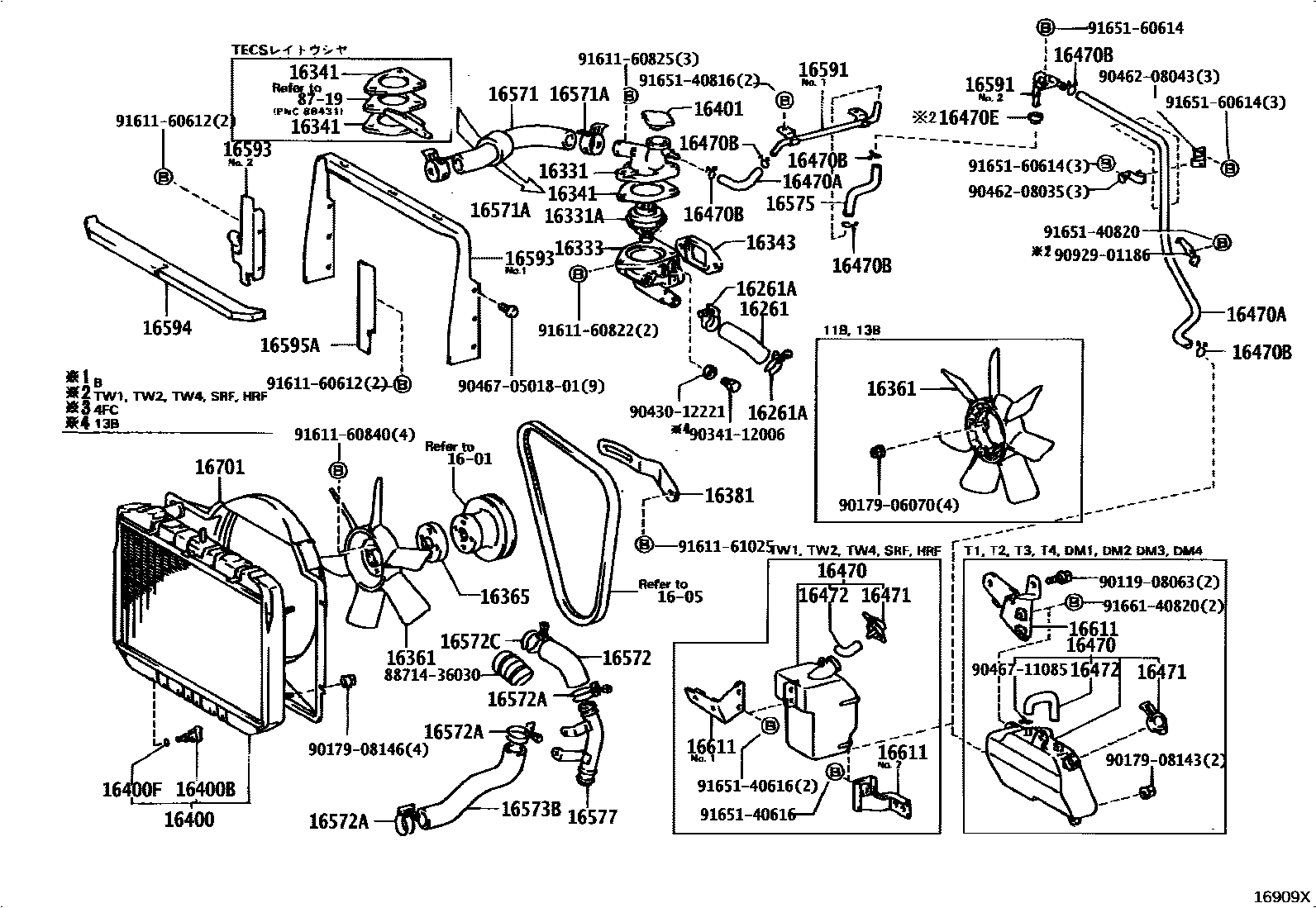

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1601WATER PUMP

→ Go to FIG 16-01

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-56012iB,11B,13B#..BU6#,70,8#,9#198708-198808

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-67103×2iB,11B,13B#..BU6#,70,8#,9#198708-198808

16331OUTLET, WATER

main16331-56020i13B..BU85,93,98198708-198808

main16331-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

main16331-58020i13BT..BU85,90,95198708-198808

16331ATHERMOSTAT

main90916-03059iB,11B,13B#..BU6#,70,8#,9#..CBU,IV3198708-198808

main90916-03066i13B..BU62..IV4198708-198808

16333HOUSING, WATER OUTLET

main16333-56060iB,11B,13B#..BU6#,70,8#,9#198708-198808

16341GASKET, WATER OUTLET

main16341-56020×2i13B..BU62..TR..5F..WT..20T..IV3; B,11B,13B#..BU6#,70,8#,9#; B..BU60..WT..20T..IV3198708-198808

16343GASKET, WATER OUTLET HOUSING

main16343-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

16361FAN

main16361-38010i13B..BU85,93,98198708-198808

main16361-56030iB..BU70,80;B..BU60..175;B..BU60..20T..CBU;B..BU60..T3..ST..IV3198708-198808

main16361-56040iB..BU60..T3..WT..IV3;B..BU60..(T1,T2,T4)..IV3; B..BU70,80;B..BU60..175;B..BU60..20T..CBU;B..BU60..T3..ST..IV3198712-198808

main16361-56070i13B..BU85..(T2,T3)..5F..(20T,30T)..IV3; 13BT..BU85;11B,13B#..BU61,62,64,81,82,90,95198708-198808

16365SPACER, FAN

main16365-56021iB..BU60,70,80198708-198808

16381BAR, FAN BELT ADJUSTING

main16381-56030iB,11B,13B#..BU6#,70,8#,9#..CBU,IV3198708-198808

main16381-56041i11B..BU61..WT..IV3;13B..BU82..(T3,T4)..20T..IV3; 13B..BU62..(T2,T4)..5F..IV3; 13B..BU62..IV4; 13B..BU62..T3..5F..WT..20T; B..BU60..(T2,T4)..IV3; B..BU60..T3..WT..IV3198708-198808

16400RADIATOR ASSY

main16400-58090iB,11B,13B..BU6#,70,80,81,82..5F..(CBU,IV3)198708-198808

main16400-58102i13B..BU62..4FC198708-198808

main16400-58131i13B..BU85..4FC198708-198808

main16400-58142i13B..BU85,93,98..T3..5F; 13B..BU85..(T2,TW1)..5F; 13B..BU85..V198708-198808

main16400-58150i13B..BU62..IV4198708-198808

main16400-58201i13BT..BU85,90,95..T3198708-198808

main16400-58230i13B..BU85..T4198708-198808

main16400-58260i13BT..BU90..T4198708-198808

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i13B#..BU85,9#198708-198808

main16417-58090iB,11B,13B..BU6#,70,80,81,82198708-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051iB,11B,13B#..BU6#,70,8#,9#198708-198808

16401CAP SUB-ASSY, RADIATOR

main16401-71010iB,11B,13B#..BU6#,70,8#,9#198708-198808

16470TANK ASSY, RADIATOR RESERVE

main16470-56111i13B..BU62,64,82..03S198708-198808

main16470-56121iB,11B,13B..BU6#,80,81,82..03S198708-198808

main16470-56130iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main16470-58010i13B..BU93;13B#..BU85,90,95..TR..03S198708-198808

main16470-58020i13B#..BU85,9#198708-198808

main16470-58030i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12038iB,11B,13B..BU6#,80,81,82..03S198708-198808

main90445-12078×2i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198808

main90445-12143i13B..BU85,93,98198708-198808

main90445-12146i13BT..BU85,90,95198708-198808

main90445-12147iB..BU70..03S,06S198708-198808

main90447-12077i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198808

main90447-12087iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main90910-05174iB,11B,13B..BU6#,70,80,81,82198708-198808

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i13B#..BU85,9#; B,11B,13B..BU6#,70,80,81,82198708-198808

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-16015iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052iB,11B,13B..BU6#,80,81,82..03S198708-198808

main16405-56060iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main16405-56070i13B#..BU85,9#198708-198808

main16405-58030i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198808

16472HOSE, BREATHER

main16472-56130iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main16472-58010i13B#..BU85,9#198708-198808

main85338-56110×2i13B..BU62,64,82..03S198708-198808

16571HOSE, RADIATOR, INLET

main16571-56040iB,11B,13B..BU6#,70,80,81,82..CBU,IV3198708-198808

main16571-56050i11B..BU61..WT..IV3;13B..BU82..(T3,T4)..20T..IV3; 13B..BU62..(T2,T4)..5F..IV3; 13B..BU62..IV4; 13B..BU62..T3..5F..WT..20T; B..BU60..(T2,T4)..IV3; B..BU60..T3..WT..IV3198708-198808

main16571-58030i13B#..BU85,9#198708-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96111-10490×2iB,11B,13B#..BU6#,70,8#,9#198708-198808

16572HOSE, RADIATOR, OUTLET

main16572-56081i13B..BU62..IV4; B,11B,13B..BU6#,70,80,81,82..CBU,IV3198708-198808

main16572-58031i13B#..BU85,9#198708-198808

main16572-58061i13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3; 13B..BU85..T2..5F..IV3198708-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510×3i13B#..BU85,9#; B,11B,13B..BU6#,70,80,81,82198708-198808

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10570i11B..BU61..WT..IV3;13B..BU82..(T3,T4)..20T..IV3; 13B#..BU85,93,98;13B#..BU62,90,95..35T,IV4; 13B..BU62..(T2,T4)..5F..IV3; 13B..BU62..T3..5F..WT..20T; B,11B,13B..BU6#,70,80,81,82; B..BU60..(T2,T4)..IV3; B..BU60..T3..WT..IV3198708-198808

WATER PUMP SIDE

16573BHOSE, RADIATOR, NO.3

main16573-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

main16573-58011i13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3; 13B..BU85..T2..5F..IV3198708-198808

16575HOSE, RADIATOR, NO.5

main16575-56010iB,11B,13B..BU6#,80,81,82..03S198708-198808

main16575-56020iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

16577PIPE, RADIATOR, NO.7

main16577-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

main16577-58010i13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3; 13B..BU85..T2..5F..IV3198708-198808

16591PIPE, RADIATOR

main16591-56010iB,11B,13B..BU6#,70,80,81,82198708-198808

main16591-56020iB,11B,13B..BU60,61,62,80,81,82..T4198708-198808

main16591-56040iB,11B,13B..BU6#,81,82..DM1,DM2,DM3,DM4,T1,T2,T3198708-198808

main16591-56050iB..BU70..03S,06S198708-198808

main16591-56060iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030iB,11B,13B..BU6#,70,80,81,82198708-198808

NO.1

main16593-56040iB..BU60,70,80;13B..BU62..4FC198708-198808

NO.2

main16593-58050i13BT..BU85,90,95198708-198808

16594GUIDE, RADIATOR AIR, NO.2

main16594-56020iB..BU60,70,80;13B..BU62..4FC198708-198808

main16594-58030i13BT..BU85,90,95198708-198808

16595AGUIDE, RADIATOR AIR, NO.1 LH

main16595-56020iB..BU60,70,80;13B..BU62..4FC198708-198808

main16595-58030i13BT..BU85,90,95198708-198808

16611BRACKET, RADIATOR RESERVE TANK

main16611-56050iB,11B,13B..BU6#,80,81,82..03S198708-198808

main16611-56060iB..BU70..03S,06S198708-198808

main16611-56070iB..BU70..03S,06S198708-198808

main16611-56080iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main16611-56090iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main16611-58010i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198710

main16611-58020i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198710-198808

16701SHROUD SUB-ASSY, FAN

main16701-56300iB..BU60,70,80198708-198808

main16701-56310iB..BU60..T3..WT..IV3;B..BU60..(T1,T2,T4)..IV3; B..BU70,80;B..BU60..175;B..BU60..20T..CBU;B..BU60..T3..ST..IV3198708-198808

main16701-58030i11B,13B..BU61,62,64,81,82198708-198808

main16701-58040i13B..BU85..V;13B..BU85,93,98..T2,T3,TW1198708-198808

main16701-58050i13BT..BU85,90,95..T3198708-198808

main16701-58070i13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3198708-198808

main16701-58080i13B..BU85..T4198708-198808

main16701-58090i13BT..BU90..T4198708-198808

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

8871436030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-36030

9011908063

main90119-08063

9017906070

main90179-06070

9017908143

main90179-08143

9017908146

main90179-08146

9034112006

main90341-12006

9043012221

main90430-12221

9046208035

main90462-08035

9046208043

main90462-08043

904670501801

main90467-0501801

9046711085

main90467-11085

9092901186

main90929-01186

9161160612

main91611-60612

9161160822

main91611-60822

9161160825

main91611-60825

9161160840

main91611-60840

9161161025

main91611-61025

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

9165160614

main91651-60614

9166140820

main91661-40820

59 parts on this diagram · 4 diagrams in section
