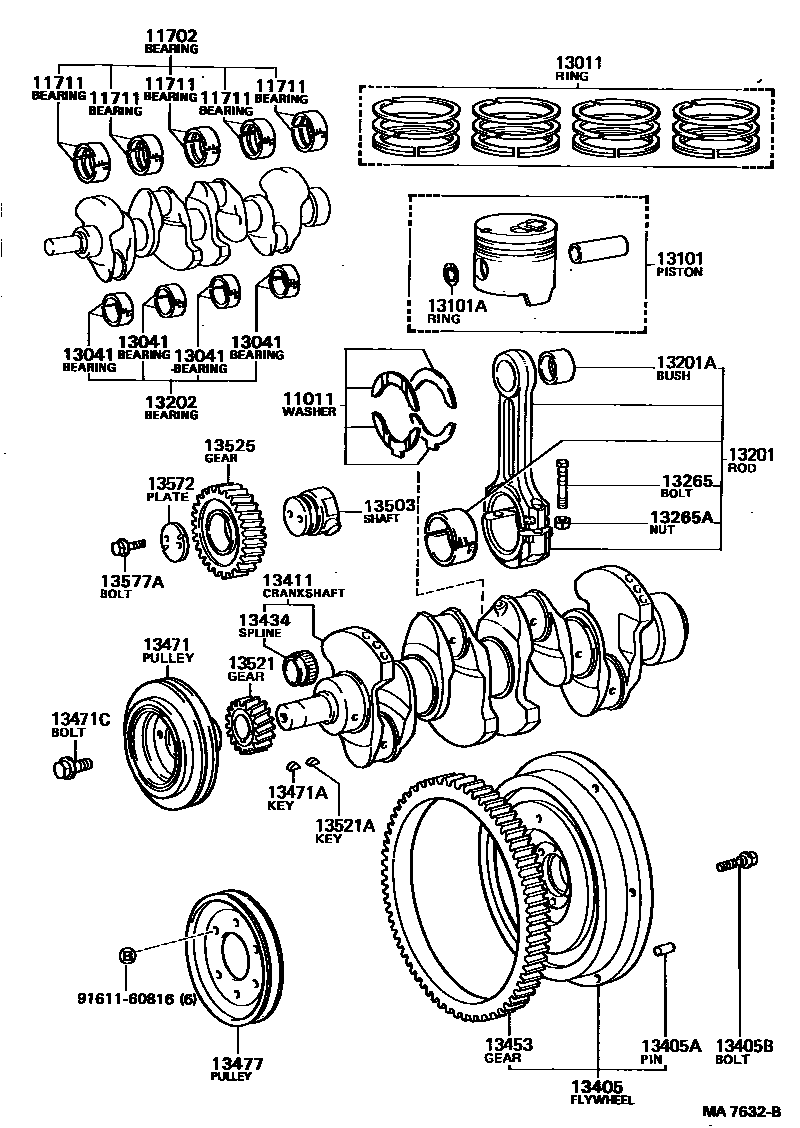

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

main11012-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

main11013-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

11702BEARING SET, CRANKSHAFT

main11704-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

main11705-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

main11707-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

11711BEARING, CRANKSHAFT

main11701-56010-01iB,11B,13B#..BU6#,70,8#,9#198708-198808

MARK 1

main11701-56010-02iB,11B,13B#..BU6#,70,8#,9#198708-198808

MARK 2

13011RING SET, PISTON

main13011-56022iB..BU60,70,80198708-198808

main13011-56030i11B..BU61,81198708-198808

main13011-58030i13B..BU62,64,82,85,93,98198708-198808

main13011-58040i13BT..BU85,90,95198708-198808

13041BEARING, CONNECTING ROD

main13041-56010-01iB..BU60,70,80198708-198804

MARK 1

main13041-56010-02iB..BU60,70,80198708-198804

MARK 2

main13041-56030-01iB..BU60,70,80198804-198808

MARK1

main13041-56030-02iB..BU60,70,80198804-198808

MARK2

main13041-56040-01i11B,13B#..BU61,62,64,81,82,85,9#198804-198808

MARK 1,MARK1

main13041-56040-02i11B,13B#..BU61,62,64,81,82,85,9#198804-198808

MARK 2,MARK2

main13041-58010-01i11B,13B#..BU61,62,64,81,82,85,9#198708-198804

MARK 1,MARK 1

main13041-58010-02i11B,13B#..BU61,62,64,81,82,85,9#198708-198804

MARK 2,MARK 2

13101PISTON SUB-ASSY, W/PIN

main13101-56032iB..BU60,70,80198708-198802

main13101-56032-01iB..BU60,70,80198802-198808

main13101-56032-02iB..BU60,70,80198802-198808

main13101-56032-03iB..BU60,70,80198802-198808

main13101-56041i11B..BU61,81198708-198802

main13101-56041-01i11B..BU61,81198802-198808

main13101-56041-02i11B..BU61,81198802-198808

main13101-56041-03i11B..BU61,81198802-198808

main13101-58020i13B..BU62,64,82,85,93,98198708-198802

main13101-58020-01i13B..BU62,64,82,85,93,98198802-198808

main13101-58020-02i13B..BU62,64,82,85,93,98198802-198808

main13101-58020-03i13B..BU62,64,82,85,93,98198802-198808

main13101-58030i13BT..BU85,90,95198708-198802

main13101-58030-01i13BT..BU85,90,95198802-198808

main13101-58030-02i13BT..BU85,90,95198802-198808

main13101-58030-03i13BT..BU85,90,95198802-198808

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-31001iB..BU60,70,80198708-198808

main90521-37007i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

13201ROD SUB-ASSY, CONNECTING

main13201-59045iB..BU60,70,80198708-198804

main13201-59048iB..BU60,70,80198804-198808

main13201-59055i11B,13B..BU61,62,64,81,82,85,93,98198708-198804

main13201-59057i11B,13B..BU61,62,64,81,82,85,93,98198804-198808

main13201-59065i13BT..BU85,90,95198708-198804

main13201-59067i13BT..BU85,90,95198804-198808

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73065iB..BU60,70,80198708-198808

main90999-73099i11B,13B..BU61,62,64,81,82,85,93,98198708-198808

main90999-73100i13BT..BU85,90,95198708-198808

13202BEARING SET, CONNECTING ROD

main13204-56011iB..BU60,70,80198708-198804

main13204-56030iB..BU60,70,80198804-198808

main13204-56040i11B,13B#..BU61,62,64,81,82,85,9#198804-198808

main13204-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198804

main13205-56011iB..BU60,70,80198708-198804

main13205-56030iB..BU60,70,80198804-198808

main13205-56040i11B,13B#..BU61,62,64,81,82,85,9#198804-198808

main13205-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198804

main13207-56011iB..BU60,70,80198708-198804

main13207-56030iB..BU60,70,80198804-198808

main13207-56040i11B,13B#..BU61,62,64,81,82,85,9#198804-198808

main13207-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198804

13265BOLT, CONNECTING ROD

main13265-56010iB..BU60,70,80198708-198804

main13265-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main13265-59015iB..BU60,70,80198804-198808

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-11006iB..BU60,70,80198708-198808

main90179-12044i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

13405FLYWHEEL SUB-ASSY

main13405-56032iB,11B,13B..BU6#,70,8#,93,98..5F198708-198808

main13405-58011i13BT..BU85,90,95198708-198808

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10192iB,11B,13B#..BU6#,70,8#,9#..5F198708-198808

13405BBOLT, FLYWHEEL SETTING

main90913-01015iB,11B,13B#..BU6#,70,8#,9#..5F198708-198808

13411CRANKSHAFT

main13401-56020iB..BU60,70,80198708-198808

main13401-58020i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

13434SPLINE, OIL PUMP DRIVE

main13519-56010iB,11B,13B#..BU6#,70,8#,9#198708-198808

13453GEAR, FLYWHEEL RING

main13453-56020iB,11B,13B#..BU6#,70,8#,9#..5F198708-198808

13471PULLEY, CRANKSHAFT

main13470-56150i11B,13B..BU61,62,64,81,82,85,93,98198708-198808

main13470-56160i13BT..BU85,90,95198708-198808

main13470-56170iB..BU60,70,80198708-198808

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-10416iB,11B,13B#..BU6#,70,8#,9#198708-198808

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16003iB,11B,13B#..BU6#,70,8#,9#198708-198808

13477PULLEY, CRANKSHAFT, NO.2

main88451-25020i13B#..BU85..5F..03S;11B,13B#..BU61,62,64,81,82,9#..5F..(CBU,IV3)198708-198808

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56030i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main13581-56060iB..BU60,70,80198708-198808

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56030iB,11B,13B#..BU6#,70,8#,9#198708-198808

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-10519iB,11B,13B#..BU6#,70,8#,9#198708-198808

13525GEAR, IDLE, NO.1

main13508-56010iB,11B,13B#..BU6#,70,8#,9#198708-198808

13572PLATE, IDLE GEAR THRUST

main13572-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194iB,11B,13B#..BU6#,70,8#,9#198708-198808

9161160816

main91611-60816

29 parts on this diagram · 2 diagrams in section
