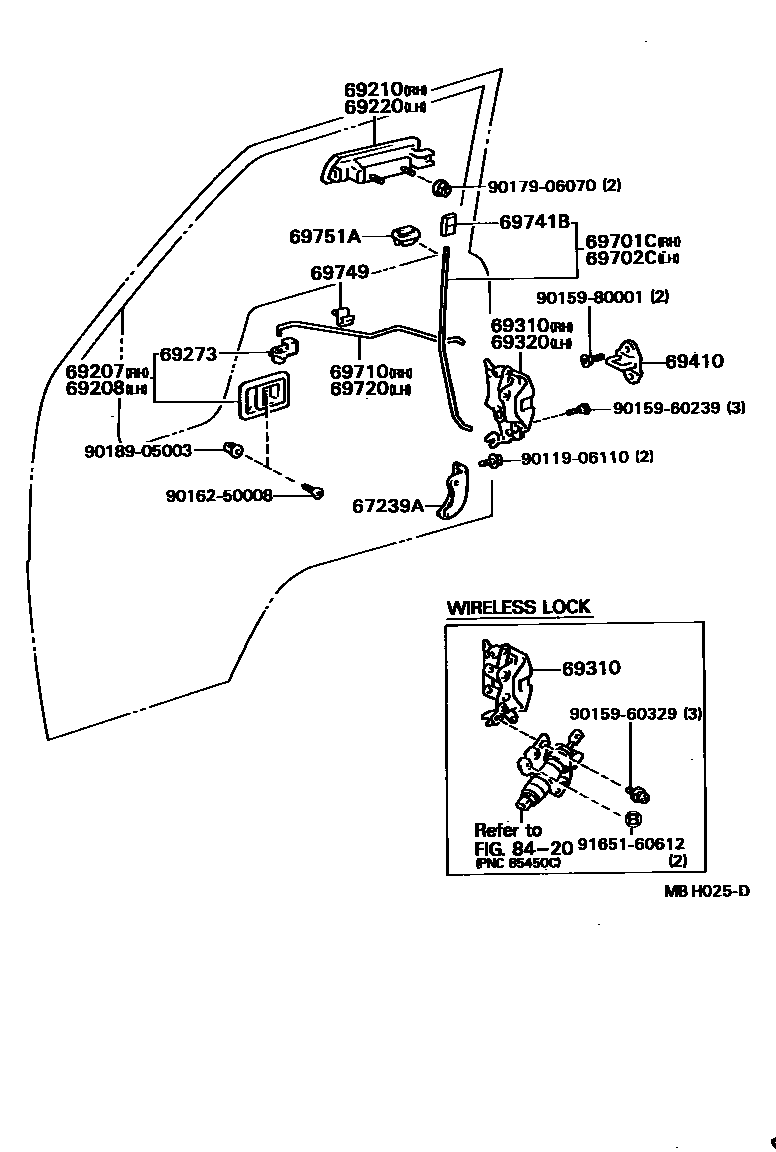

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67239AWEIGHT, FRONT DOOR

main67239-95401iBU6#,7#,8#,9#198409-198708

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,GRAY

main69205-10040-14iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,GRAY

main69206-10040-14iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

main69280-95401-03iBU6#..DYN..(T2,T3,T4)..(175,20T); BU62..DYN..(BTP,CTP); BU77,85,98..DYN..TR..03S..DSL198409-198708

W/FR SLIDE DOOR,SHADOW GRAY,SHADOW GRAY

main69280-95401-04iBU6#..TOY..(T2,T3,T4)..(175,20T); BU62..TOY..(BTP,CTP); BU77,85,98..TOY..03S..DSL198508-198708

W/FR SLIDE DOOR,BLUE,BLUE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iBU6#,7#,8#,9#198409-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iBU6#,7#,8#,9#198409-198708

main69220-95404iBU6#..(T2,T3,T4)..(175,20T); BU62..BTP,CTP; BU77,85,98..TR..03S..DSL198409-198708

W/FR SLIDE DOOR

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iBU6#,7#,8#,9#198409-198708

RH

main69759-20070iBU6#,7#,8#,9#198409-198708

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-95405iBU6#,70,8#,9#198409-198508

main69310-95406iBU6#,8#..TR..03S..(175,20T)..DSL; BU70;BU62,85..BTP,CTP,ETP; BU82..30T198409-198508

W/WIRELESS LOCK

main69310-95407iBU6#,7#,8#,9#198508-198708

main69310-95408iBU6#,77,8#..TR..03S..(175,20T)..DSL; BU70;BU62,85..BTP,CTP,ETP; BU82..TOY..275;BU82..DYN..(275,30T)198508-198708

W/WIRELESS LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-95405iBU6#,70,8#,9#198409-198508

main69320-95406iBU6#..(T2,T3,T4)..(175,20T); BU62..BTP,CTP; BU77,85,98..TR..03S..DSL198409-198708

FR,W/FR SLIDE DOOR

main69320-95407iBU6#,7#,8#,9#198508-198708

main69340-95401iBU6#..(T2,T3,T4)..(175,20T); BU62..BTP,CTP; BU77,85,98..TR..03S..DSL198409-198708

RR,W/FR SLIDE DOOR

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iBU6#,7#,8#,9#198508-198708

RH;LH

main69410-89103iBU6#,70,8#,9#198409-198508

RH;LH

main69410-95401iBU6#..(T2,T3,T4)..(175,20T); BU62..BTP,CTP; BU77,85,98..TR..03S..DSL198409-198708

LH,FR,W/FR SLIDE DOOR

main69420-95401iBU6#..(T2,T3,T4)..(175,20T); BU62..BTP,CTP; BU77,85,98..TR..03S..DSL198409-198708

LH,RR,W/FR SLIDE DOOR

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iBU6#,7#,8#,9#198409-198708

BLACK,BLACK

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iBU6#,7#,8#,9#198409-198708

BLACK,BLACK

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-95403iBU6#,7#,8#,9#198409-198708

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-95401iBU6#,7#,8#,9#198409-198708

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01×2iBU6#,7#,8#,9#198409-198708

BLACK,BLACK

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010×2iBU6#,7#,8#,9#198409-198708

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031-01×2iBU6#,7#,8#,9#198409-198708

BLACK,BLACK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9011906110

main90119-06110

9015960239

main90159-60239

9015960329

main90159-60329

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9165160612

main91651-60612

25 parts on this diagram · 2 diagrams in section
