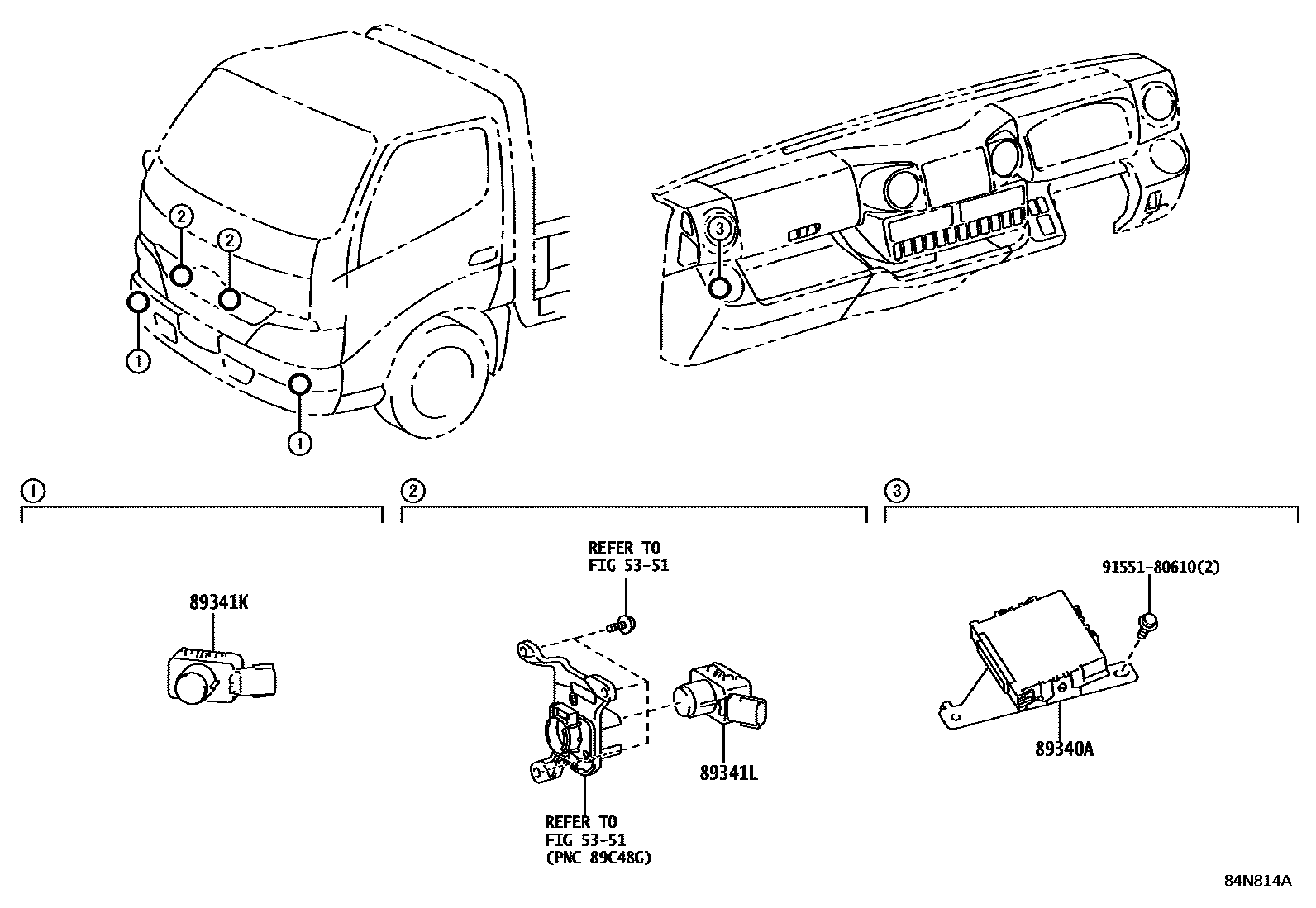

CLEARANCE & BACK SONAR

5351RADIATOR GRILLE

→ Go to FIG 53-51

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-25010iGDY231,281202108

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-37020-A0×2iGDY231,281,TRY230202108

WHITE,058

main89341-37020-B0×2iGDY231,281..SCB..T4..6FC..IV3; TRY230..5F..125T..IV3;GDY231,281..SCB..T4..5F..IV3; TRY230..6FC;GDY281..T2,TS;TRY230..5F..CBU;GDY231..125T,15T;GDY281..DCB..T4..IV3;TRY230..5F..10T..IV3;GDY281..T4..(CBU,IV6);GDY231..175T..(CBU,IV6)202108

GRAY,766 ,8P0; GRAY,766 ,8P0 ,968; GRAY,766 ,8P0 ,968 ,9A7

main89341-37020-B1×2iGDY231,281,TRY230..SCB202108

SILVER ME.,199

main89341-37010×2iGDY231,281,TRY230..CBU,IV3202108-202305

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-37010×2iGDY231,281,TRY230202108

9155180610

main91551-80610

5 parts on this diagram · 1 diagram in section
