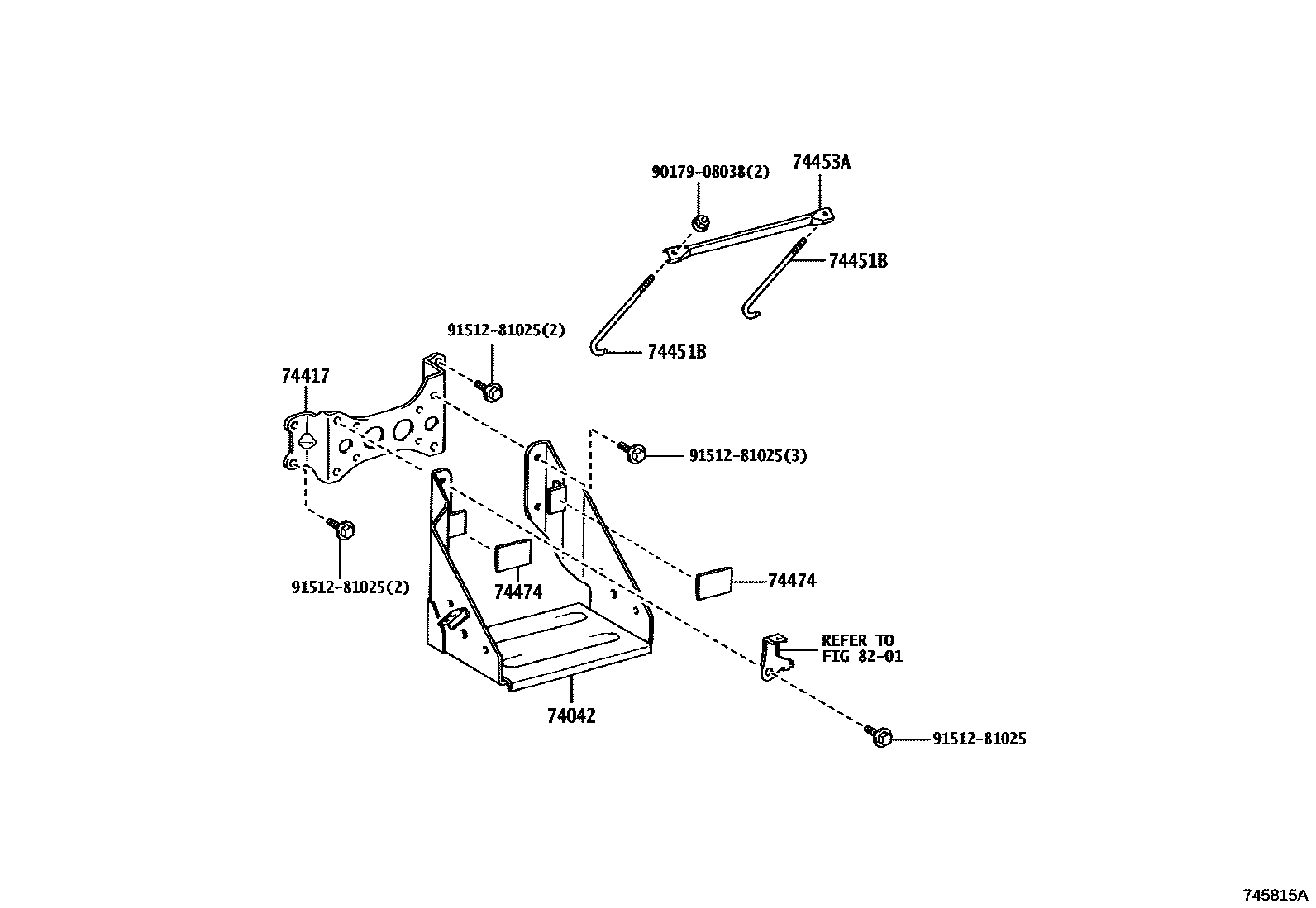

BATTERY CARRIER

0001 1 0002 185D26L X 2 0003 1

74042BRACKET SUB-ASSY, BATTERY

main74042-25060supersedes 74042-36020iGDY231,281202108-202509

74417BRACKET, BATTERY CARRIER

main74417-25090iTRY230..125T202108

main74417-25100iTRY230..10T202108

main74417-25120supersedes 74417-25090iGDY231,281202108-202509

74451BBOLT, BATTERY CLAMP

main74451-25020×2iTRY230202108

main74451-36070×2iGDY231,281202108-202509

74453ABAR, BATTERY SET PLATE

main74453-25090iTRY230202108

main74453-36070supersedes 74453-25100iGDY231,281202108-202401

main74453-37130supersedes 74453-25100iGDY231,281202402-202509

74474PAD, BATTERY

main74475-36040×2iGDY231,281202108-202509

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

9017908038

main90179-08038

9151281025

main91512-81025

8 parts on this diagram · 3 diagrams in section
