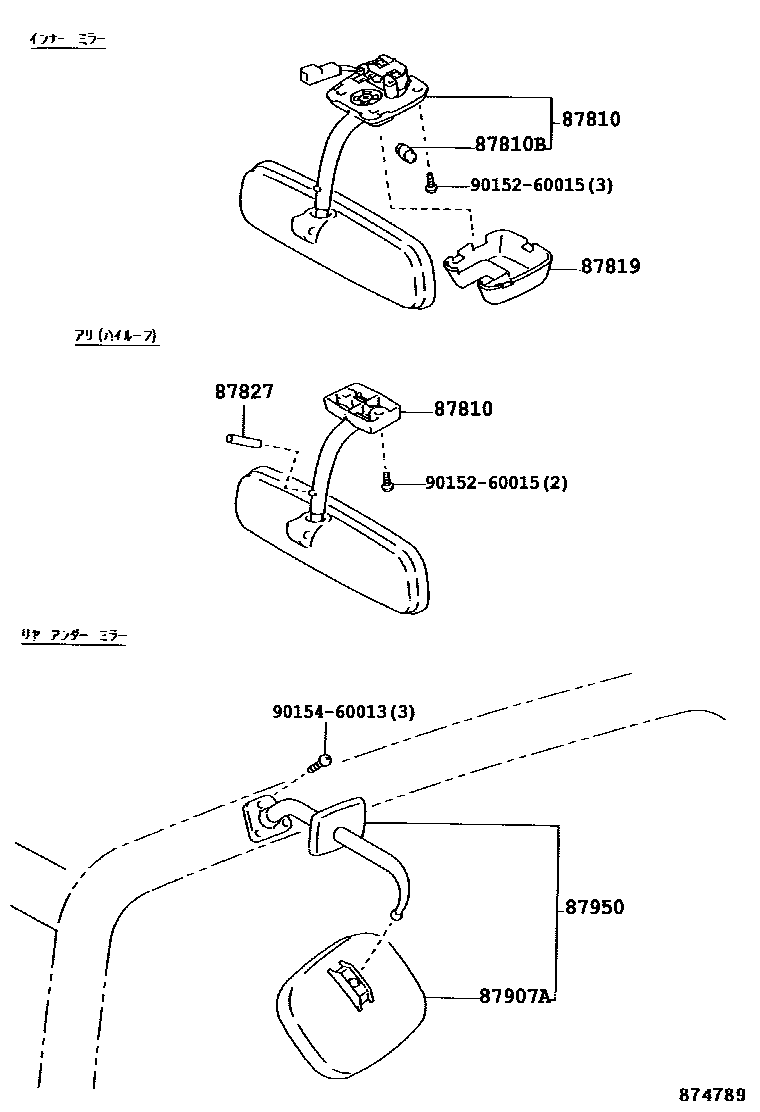

87810MIRROR ASSY, INNER REAR VIEW

main87810-25050-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200606

MD.CHARCOAL,TRIM1#

main87810-25051-B0iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200607-200708

MD.CHARCOAL,TRIM1#

main87810-37020-B0iLY240,290200107-200308

main87810-37090-B0iKDY221,231,241,271,281,TRY220,23#,281200708-201505

MD.CHARCOAL,TRIM1#

main87810-37090-C0iKDY221,231,241,271,281,TRY220,23#,281201505-201507

BLACK,TRIM1#

main87810-37091-C0iKDY221,231,241,271,281,TRY220,23#,281201508

BLACK,TRIM1#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11004iKDY221,231,241,271,281,TRY220,23#,281201508

main90981-11027iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201508

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87819-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-92600iLY240,290200107-201609

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-0W050iKDY221,231,241,271,281,TRY220,23#,281201610

main87907-26040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201206

main87907-37070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

87907AMIRROR SUB-ASSY, OUTER UNDER REAR VIEW

main87907-95J02iLY240,290200107-200903

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-95J03iKDY240,290200107-200903

main87950-95J04iKDY240,290200107-200903

9015260015

main90152-60015

9015460013

main90154-60013

9 parts on this diagram · 10 diagrams in section
