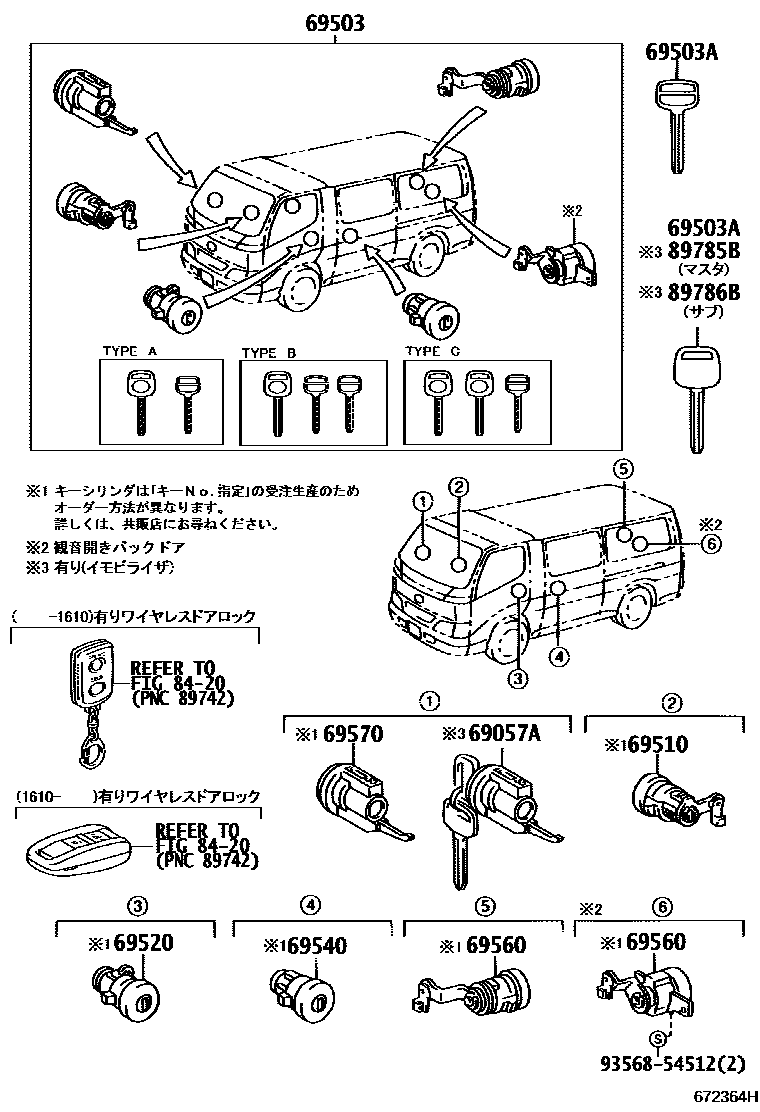

LOCK CYLINDER SET

0001 1 0002 1

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-25050iKDY221,231,241,271,281,TRY220,230201008

main69057-37140iKDY231..TS..ATM..WT..IV3200505-201008

main69057-37250iKDY231..T4..MTM..IV3;KDY221,TRY231,281..TB..WT..IV3201610-202107

69503CYLINDER SET, LOCK

main69005-25080iTRY220,230201008

main69005-25100iKDY221,231,271,281201008

main69005-25120iKDY241201008

main69005-37010iKDY221..TS;KDY221..TB..CBU;KDY231..T4..CBU;KDY231..T4..ATM..IV3;KDY231,271,281..T2,T3,TW1,TW2,TW3,TW4200107-201008

main69005-37011iKDY221..TB..IV3;KDY231..T4..MTM..IV3201603-201610

main69005-37040iRZY220,230,TRY220,230200107-201008

main69005-37110iLY230,280,RZY231,281,TRY231,281..LPG200107-201602

main69005-37111iTRY231,281201603-201610

main69005-37320iKDY24#,290,LY240,290200107-200903

main69005-37380iKDY24#,290,LY240,290200107-201008

main69005-37560iTRY281..IV3;TRY231..ATM..IV3201008-201602

main69005-37561iTRY231,281..IV3201603-201610

main69005-37B71iKDY221..TB..WT..IV3;KDY231..T4..MTM..IV3201610-202107

main69005-37B90iTRY231,281..IV3201610

main69005-37C71iTRY231,281201610-202107

69503AKEY, BLANK

main90999-00185iKDY22#,23#,27#,28#,LY220,230,270,280..DCR,DSL; KDY241,TRY220,230;KDY231..TS..ATM..WT..IV3200107-201008

main90999-00186iKDY221..TB..WT..IV3;KDY231..T4..MTM..IV3; TRY231,281201603-202107

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

69540CYLINDER ASSY, SLIDE DOOR LOCK, LH

main69540-26050iLY240,290200107-200408

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-26020iKDY241200107-200903

main69560-26040iKDY241..03S200107

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-37040iKDY221,231,241,271,281,TRY220,230200107-201008

main69570-37070iKDY221,231,241,271,281,TRY220,230201008

main69570-37090iTRY231,281201610-202107

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60210iKDY221,231,241,271,281,TRY220,230201008

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-25020iKDY221,231,241,271,281,TRY220,230201008

9356854512

main93568-54512

12 parts on this diagram · 2 diagrams in section
