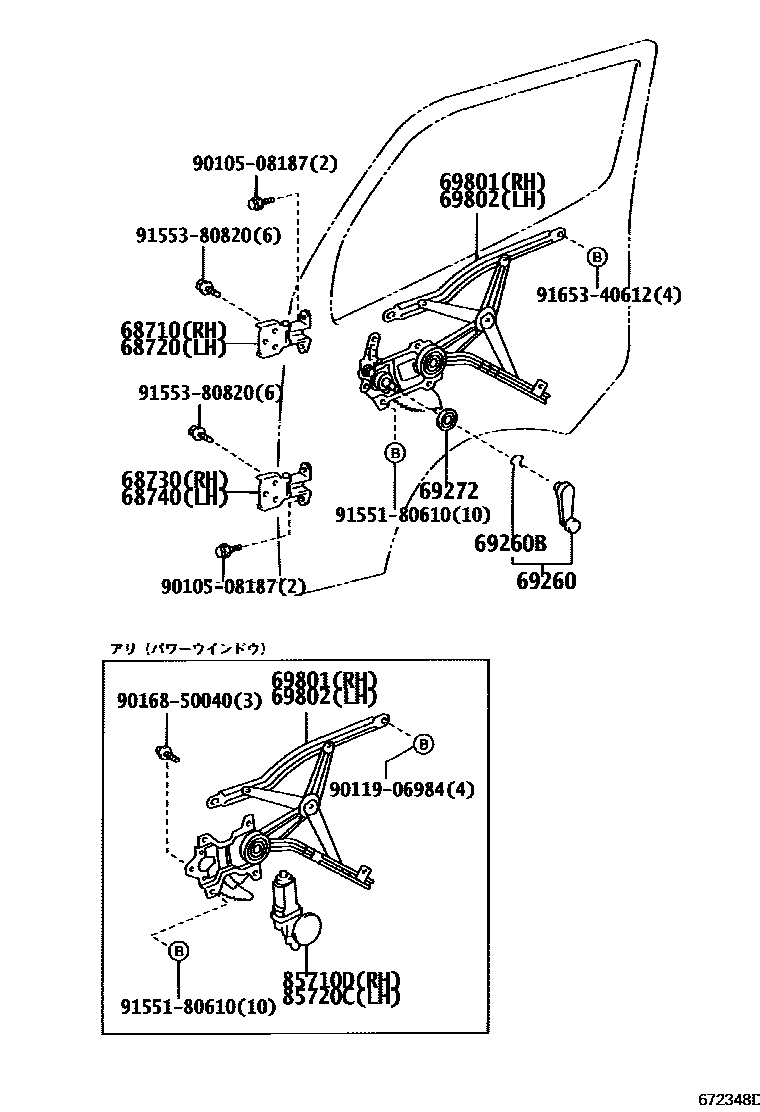

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main68710-37031iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main68730-37031iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main68730-37031iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main68710-37031iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3×2iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

main69260-89104-B5×2iKDY221,231..T4..TB;TRY230..TS..125T..WT;KDY241,271,281,TRY231,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3); TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111

GRAY,TRIM1#; GRAY,TRIM13

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iKDY231,281,TRY230..IV6200107-201610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iKDY231,281,TRY230..IV6200107-201610

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200609

main69801-37030iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200609

main69801-37050iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281,TRY220,230200610-200704

main69801-37051iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,RZY231,281,TRY220,23#,281200705-200905

main69801-37052iKDY231,281,TRY230..IV6200906-201610

main69801-37060iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200610-200706

main69801-37061iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200706-200906

main69801-37062iKDY221,231,241,271,281,TRY220,23#,281200906-201303

main69801-37063iKDY221,231,241,271,281,TRY220,23#,281201304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200609

main69802-37030iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200609

main69802-37050iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281,TRY220,230200610-200704

main69802-37051iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,RZY231,281,TRY220,23#,281200705-200905

main69802-37052iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200906-202111

main69802-37060iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200610-200706

main69802-37061iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200706-200906

main69802-37062iKDY221,231,241,271,281,TRY220,23#,281200906-201303

main69802-37063iKDY221,231,241,271,281,TRY220,23#,281201304

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37070iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main85710-37090iKDY221,231,241,271,281,TRY220,23#,281200708

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37090iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main85720-37120iKDY221,231,241,271,281,TRY220,23#,281200708

9010508187

main90105-08187

9011906984

main90119-06984

9016850040

main90168-50040

9155180610

main91551-80610

9155380820

main91553-80820

9165340612

main91653-40612

17 parts on this diagram · 1 diagram in section
