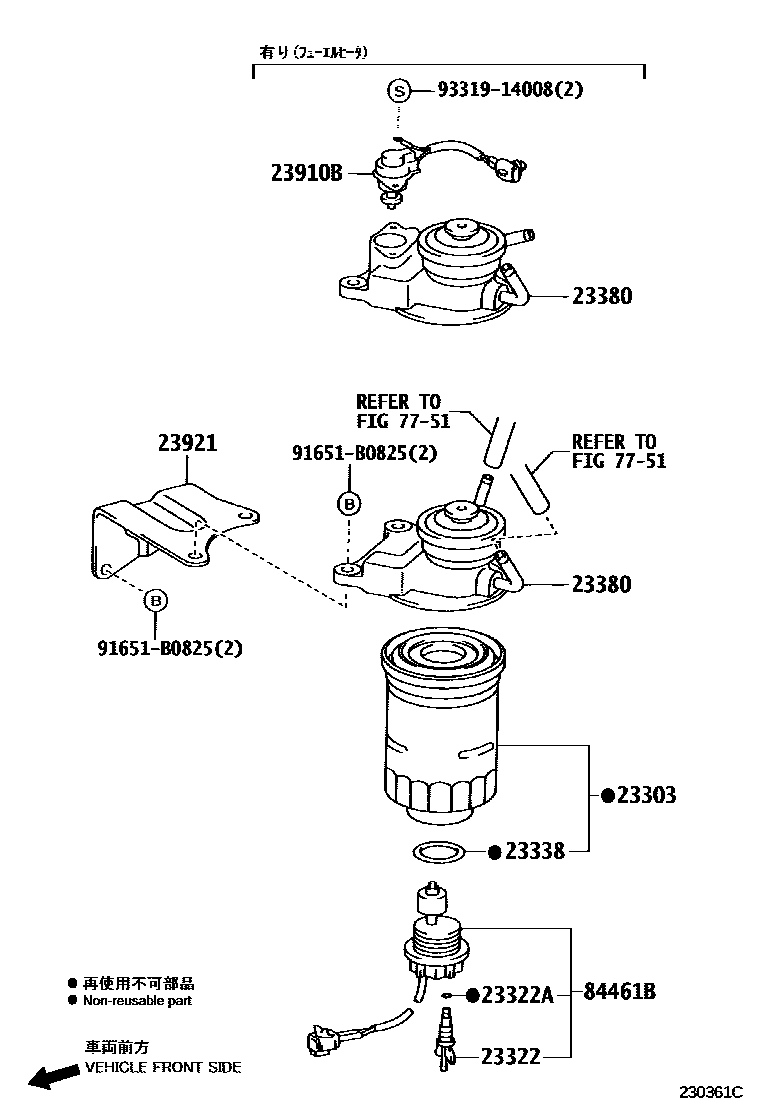

FUEL FILTER

0001 1 0002 1

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-30090i1KDFTV..KDY241,271,281;1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3200812

main23390-30180i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main23390-64480i5L..LY220,230,240,270,280,290200107-200408

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i5L..LY220,230,240,270,280,290200107-200408

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200107-200408

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200107-200408

23380CAP ASSY, FUEL FILTER

main23380-30080i1KDFTV,2KDFTV..KDY22#,23#,27#,28#200408-200812

main23380-30081i1KDFTV..KDY221,231,271,281200812

main23380-30090i1KDFTV,2KDFTV..KDY22#,23#,27#,28#200408-200812

main23380-30091i1KDFTV..KDY271,281;1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3)200812

main23380-30230i1KDFTV,2KDFTV..KDY24#,290200408-200902

main23380-30231i1KDFTV..KDY241200902

main23380-30240i1KDFTV,2KDFTV..KDY24#,290200408-200812

main23380-30241i1KDFTV..KDY241200812

main23380-5B240i5L..LY220,230,240,270,280,290200107-200408

main23380-5B250i5L..LY220,230,240,270,280,290200107-200408

23910BHEATER ASSY, FUEL

main23910-54120i5L..LY230..TW1;5L..LY220..125T..WT;5L..LY230..TB..125T..ST200107-200408

main23910-67060i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

23921SUPPORT, FUEL FILTER

main23921-54510i1KDFTV,2KDFTV..KDY22#,23#,27#,28#200107-202111

main23921-54520i1KDFTV,2KDFTV..KDY24#,290200107-200408

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-28040iLY220,230,240,270,280,290..DSL200107-201202

main84461-28041iKDY221,231,241,271,281201203-202111

91651B0825

main91651-B0825

9331914008

main93319-14008

11 parts on this diagram · 2 diagrams in section
