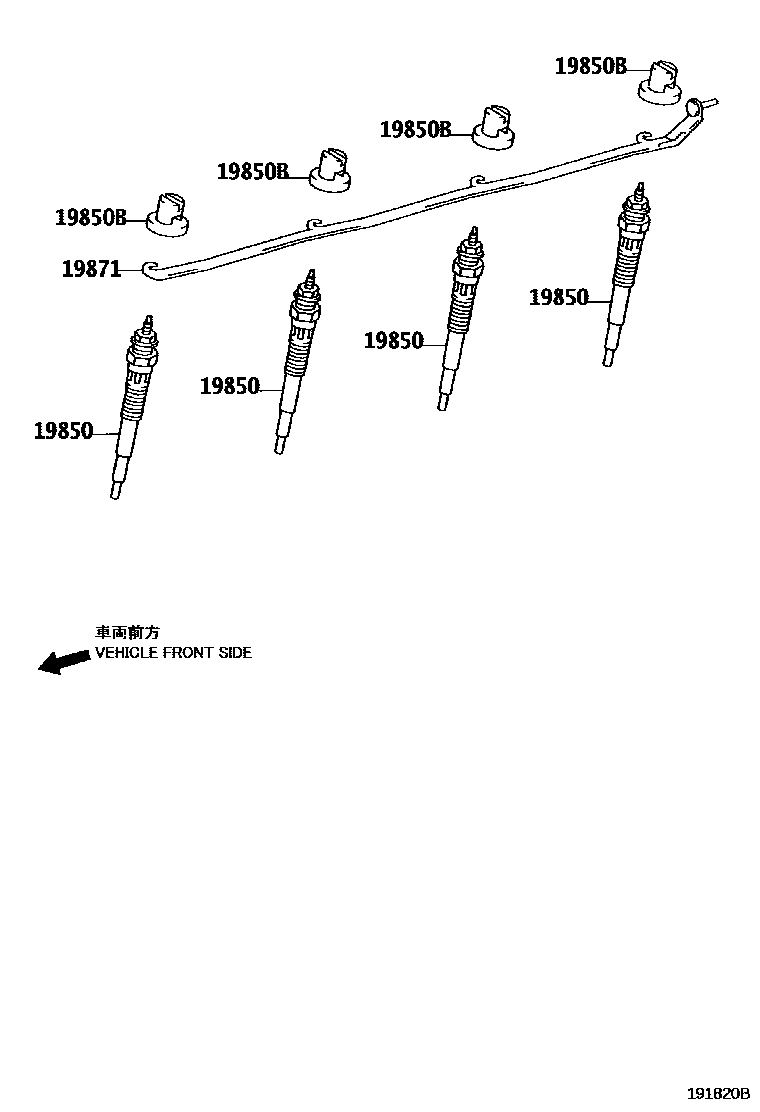

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19850PLUG ASSY, GLOW

main19850-30010×4i2KDFTV..KDY220,230,240,270,280,290200408-200708

main19850-30020×4i1KDFTV..KDY221,231,241,271,281200709-201008

main19850-30040×4i1KDFTV..KDY221,231,241,271,281201008

main19850-54120×4i5L..LY220,230,240,270,280,290200107-200408

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

19871CONNECTOR, GLOW PLUG NO.1

main19871-30031i2KDFTV..KDY220,230,240,270,280,290200408-200708

main19871-30050i1KDFTV..KDY221,231,241,271,281200709-201008

main19871-30080i1KDFTV..KDY221,231,241,271,281201008-201109

main19871-30081i1KDFTV..KDY221,231,241,271,281201109

main19871-54020i5L..LY220,230,240,270,280,290200107-200408

3 parts on this diagram · 8 diagrams in section
