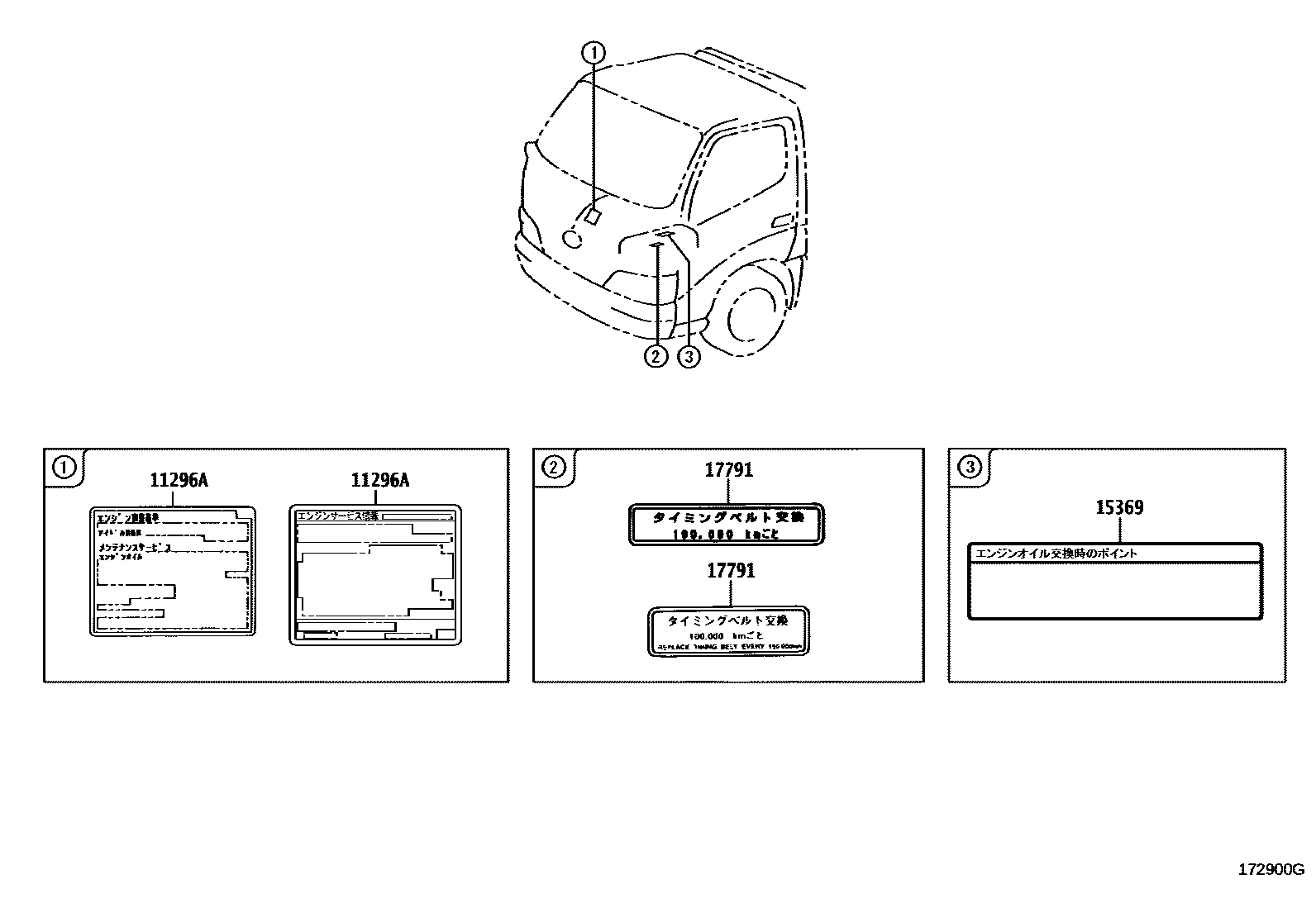

CAUTION PLATE & NAME PLATE (ENGINE)

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-30040i2KDFTV..KDY220,230,240,270,280,290200408-200708

main11296-30060i1KDFTV..KDY221,231,241,271,281200709-201008

main11296-30090i1KDFTV..KDY221,231,241,271,281201008

main11296-54081i5L..LY220,230,240,270,280,290200107-200205

main11296-54082i5L..LY220,230,240,270,280,290200205-200210

main11296-54083i5L..LY220,230,240,270,280,290200210-200408

15369PLATE, ENGINE OIL CAUTION

main15369-30020i1KDFTV..KDY221,231,241,271,281200803-201008

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main17791-74040i5L..LY220,230,240,270,280,290200107-200408

3 parts on this diagram · 1 diagram in section
