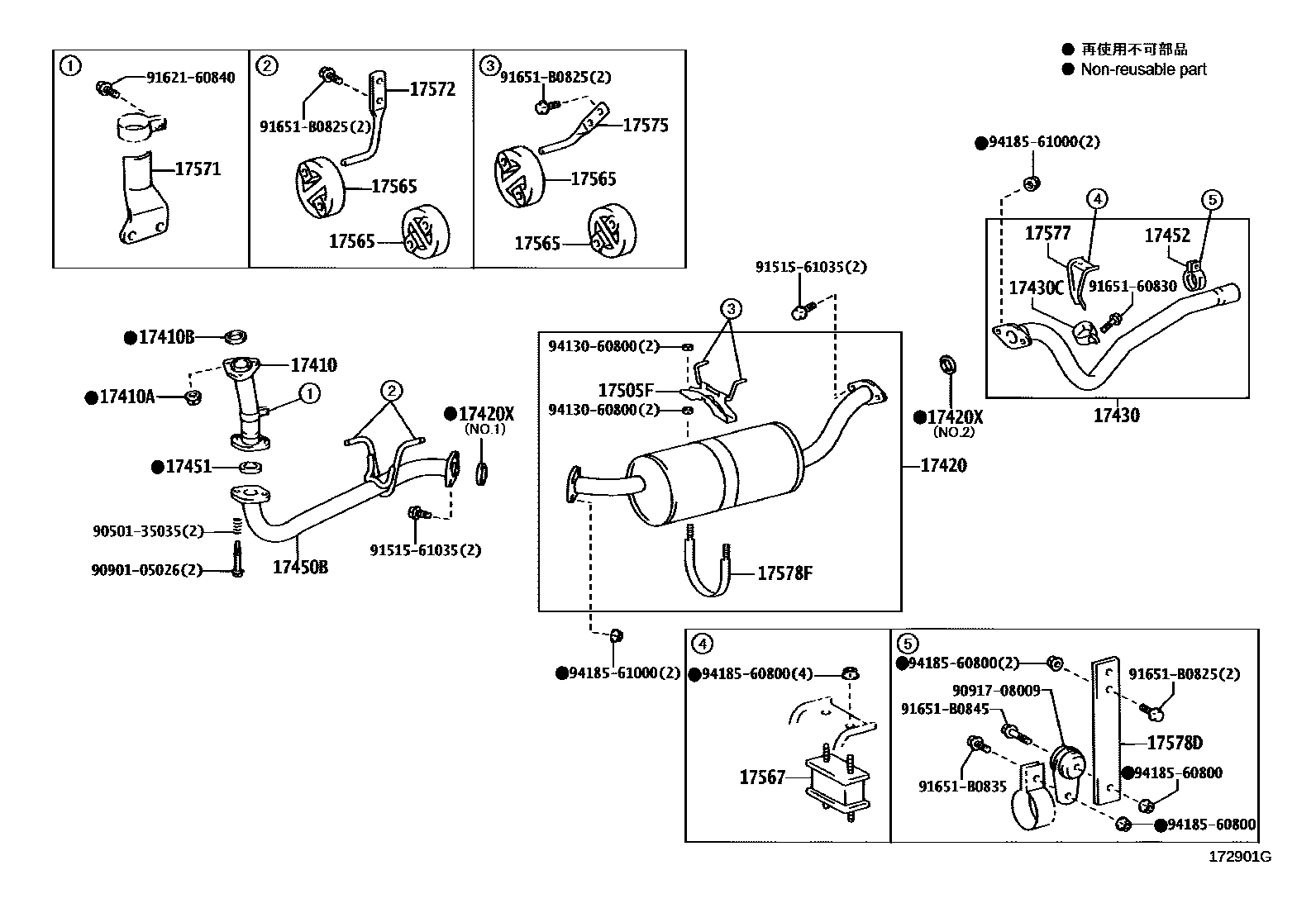

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-30110i2KDFTV..KDY220,270200408-200708

main17410-30120i2KDFTV..KDY230,280200408-200708

main17410-30130i2KDFTV..KDY240,290200408-200708

main17410-30230i1KDFTV..KDY221,231,241,271,281200709-201008

main17410-30320i1KDFTV..KDY221,231,241,271,281201008

main17410-5B400i5L..LY220,230,240,270,280,290200107-200408

main17410-75320i1RZE..RZY220,230200107-200308

main17410-75330i3RZFPE..LY230,280,RZY231,281200107-200708

main17410-75410i1TRFE..TRY220200308-200708

main17410-75420i1TRFE..TRY230200308-200708

main17410-75570i1TRFE..TRY220200708

main17410-75580i1TR#..TRY23#,281200708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i1KDFTV,5L,1RZE,3RZFPE..KDY221,231,241,271,281,LY220,230,240,270,280,290,RZY220,23#,281200107-201008

17410BGASKET, EXHAUST PIPE

main17451-67020i2KDFTV..KDY220,230,240,270,280,290200408-200708

main17451-74040i1KDFTV..KDY221,231,241,271,281201008

main90917-06061i3RZFPE..LY230,280,RZY231,281200107-200708

main90917-06064i1RZE..RZY220,230200107-200308

main90917-06066i5L..LY220,230,240,270,280,290200107-200408

main90917-06090i1KDFTV..KDY221,231,241,271,281200709-201008

17420PIPE ASSY, EXHAUST, CENTER

main17420-30030i2KDFTV..KDY220,230,240,270,280,290200408-200708

main17420-30130i1KDFTV..KDY221,271200709-201008

main17420-30140i1KDFTV..KDY231,281200709-201008

main17420-30150i1KDFTV..KDY241200709-201008

main17420-30200i1KDFTV..KDY221,271201008

main17420-30210i1KDFTV..KDY231,281201008

main17420-30220i1KDFTV..KDY241201008

main17420-54190i5L..LY220,230,240,270,280,290200107-200408

main17420-75290i1RZE,3RZFPE..LY230,280,RZY220,230200107-200308

main17420-75410i3RZFPE,1TR#..RZY231,281,TRY220,23#,281200308

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06045i5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

main90917-06076i1KDFTV..KDY221,231,241,271,281200709

main90917-06078i2KDFTV..KDY220,230,240,270,280,290200408-200708

main90917-06078i5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17430PIPE ASSY, EXHAUST, TAIL

main17430-30090i2KDFTV..KDY240,290200408-200708

main17430-30120i1KDFTV..KDY221,231,271,281200709

main17430-30130i1KDFTV..KDY241200709

main17430-5D240i5L..LY220,230,270,280200107-200408

main17430-5D250i5L..LY240,290200107-200408

main17430-75600i2KDFTV,1RZE,3RZFPE,1TR#..KDY220,230,270,280,LY230,280,RZY220,23#,281,TRY220,23#,281200107

17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)

main90461-32007i2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

main90461-32037i1KDFTV..KDY221,231,241,271,281200709

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-54010i5L..LY220;5L..LY270..1T200107-200408

main17450-54020i5L..LY270..125T,12T200107-200408

main17450-54030i5L..LY280..ATM;5L..LY230..ATM..15T;5L..LY230..125T,12T,1T;5L..LY230..TB..MTM..15T..WT;5L..LY280..(T4,TW1,TW3,TW4)..MTM200107-200408

main17450-54040i5L..LY230..175T;5L..LY230..TS..WT;5L..LY230..MTM..15T..ST;5L..LY280..MTM..(125T,15T)..ST200107-200408

main17450-54050i5L..LY240,290200107-200408

17451GASKET, EXHAUST PIPE

main17451-16030i5L,1RZE,3RZFPE..LY220,230,240,270,280,290,RZY220,230200107-200408

main17451-22020i3RZFPE..RZY231,281200308-200708

main17451-67020i1KDFTV..KDY221,231,241,271,281200709-201008

main17451-74040i1TR#..TRY220,23#,281200308

main90917-06078i2KDFTV..KDY220,230,240,270,280,290200408-200708

17452CLAMP, EXHAUST PIPE

main17452-30010i1KDFTV..KDY221,231,241,271,281200709

main17452-54011i2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17505FSUPPORT SUB-ASSY, EXHAUST PIPE

main17505-30010i1KDFTV..KDY221,231,241,271,281200709-201008

main17505-54240i2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i1KDFTV..KDY221,231,241,271,281200709-201008

main17565-31040i2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200705

main17565-74290i2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200704

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-35010i1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-54570i5L..LY220,230,240,270,280,290200107-200408

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-54270i1KDFTV..KDY221,231,241,271,281200107-201008

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-30030i1KDFTV,1TR#..KDY221,231,241,271,281,TRY220,23#,281201008

main17575-71050i1KDFTV,2KDFTV,5L,1RZE,3RZFPE..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281200107-201008

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-30010i1KDFTV..KDY221,231,241,271,281200709

main17577-54050i2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17578DBRACKET, EXHAUST PIPE SUPPORT, NO.8

main17578-54020i1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

17578FCLAMP, PIPE(FOR CENTER PIPE)

main17578-54030i1KDFTV..KDY221,231,241,271,281200107-201008

9050135035

main90501-35035

9090105026

main90901-05026

9091708009

main90917-08009

9151561035

main91515-61035

9162160840

main91621-60840

9165160830

main91651-60830

91651B0825

main91651-B0825

91651B0835

main91651-B0835

91651B0845

main91651-B0845

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000
