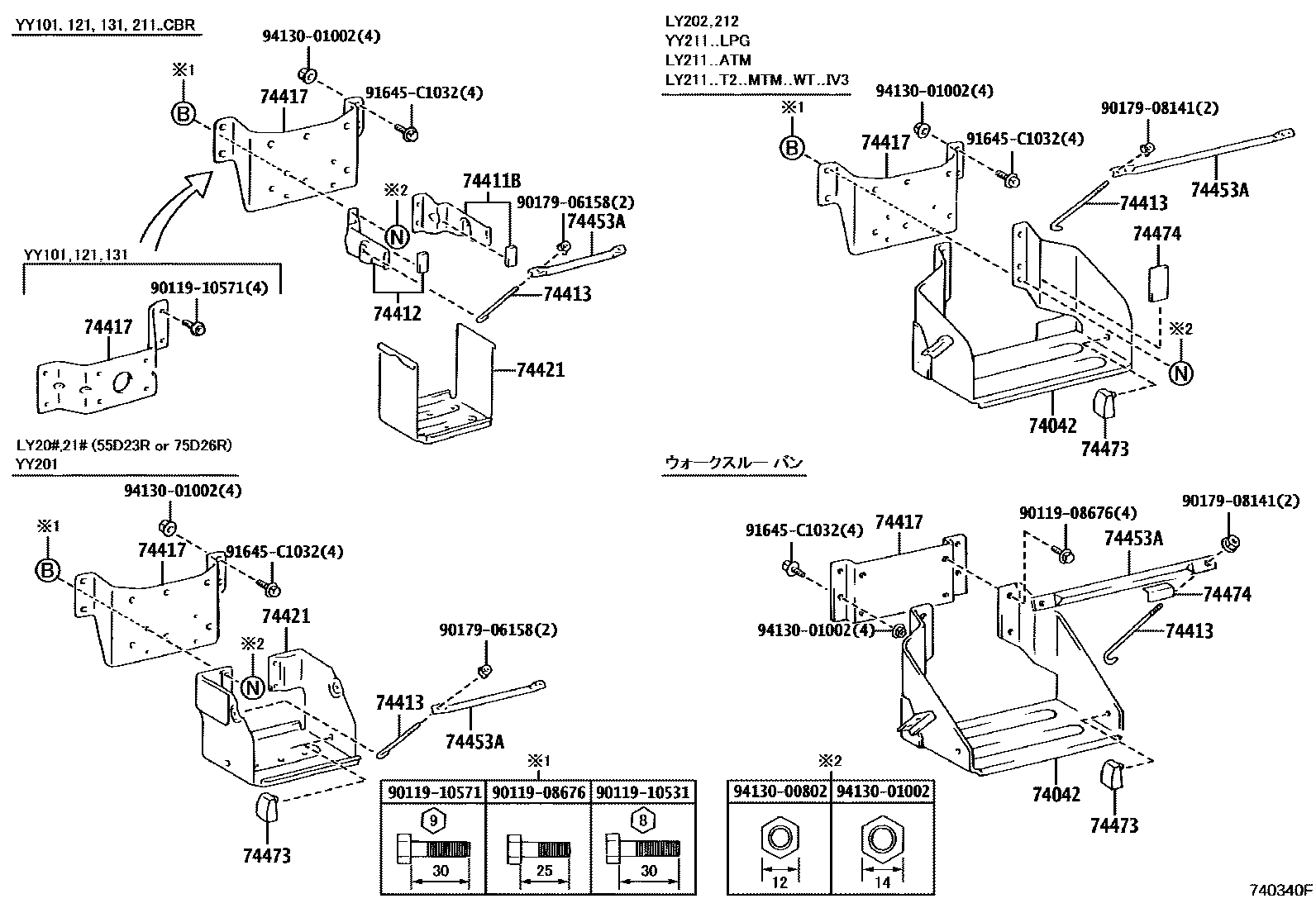

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74042BRACKET SUB-ASSY, BATTERY

main74042-25010iYY211..LPG199505-200107

main74042-25021iLY212..125199905-200107

main74042-25030iLY202,212..T3199905-200107

main74042-25041iLY201,21#..TW2199505-200107

main74042-26010iLY131..WT..15T..IV3199610-199905

main74042-36010iLY20#,21#..T1,T2,T3,T4199505-200107

main74042-36020iLY131..ATM..WT..IV3;LY132..WT..15T..IV3199610-200107

main74042-36041iLY21#..T2..WT..IV3199505-200107

74411BBRACKET, BATTERY, FRONT

main74401-26040iLY152..T3;LY101,111,131,161..ATM..(125,15T);LY102,112,122,132,162..(T1,T2,T3)..DSL199610

main74401-26080iLY161..ATM..1T;LY102,112,132,152,162..TW1,TW2199708

main74411-25011iYY201..WT;YY201..ST..15T;YY121,131,211..CBR199505

74412BRACKET, BATTERY, REAR

main74402-26040iLY152..T3;LY101,111,131,161..ATM..(125,15T);LY102,112,122,132,162..(T1,T2,T3)..DSL199610

main74402-26060iLY161..ATM..1T;LY102,112,132,152,162..TW1,TW2199708

main74412-25011iYY201..WT;YY201..ST..15T;YY121,131,211..CBR199505

74413BOLT, BATTERY CLAMP

main74451-25020×2iYY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)199505

main74451-36070×2iLY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL; LY211..T2..MTM..WT..IV3199505-199905

74417BRACKET, BATTERY CARRIER

main74417-25020iYY211..(T2,T3,T4)..CBR;LY201,211,YY201..(T1,T2,T3,T4)..MTM199505

main74417-25030iLY211..ATM;LY202,212,YY211..(T2,T3,T4)..(DSL,LPG)199505

main74417-25040iLY21#..T2..WT..IV3199505

main74417-25051iLY20#,21#..T1,T2,T3,T4199505

main74417-25080iLY16#..LPG199805

main74417-26050iLY151..T3;LY101,111,121,131,161,YY101,121,131..(T1,T2,T3)..MTM..(CBR,DSL)199610

main74417-26080iLY15#..T2199610

main74417-26090iLY15#..T3;LY10#,11#,12#,13#,16#..(T1,T2,T3)..DSL199610

main74417-26101iLY10#,11#,13#,15#,16#,YY101,131..TW1,TW2199610

74421HANGER, BATTERY

main74421-25050iLY16#..LPG199805

main74421-26010iYY201..WT;YY201..ST..15T;YY121,131,211..CBR199505

main74421-26020iYY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)199505

main74421-36091iLY152..T3,TW2;LY101,111,131,161..ATM;LY102,112,122,132,162..DSL199610

74453ABAR, BATTERY SET PLATE

main74453-25070iYY211..LPG199505

main74453-25080iYY201..WT;YY201..ST..15T;YY121,131,211..CBR199505

main74453-25090iYY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)199505

main74453-25100iLY212..T4,TW2;LY212..T2..MTM;LY101,111,131,161,211..ATM;LY202,211..T2..MTM..WT..IV3;LY102,112,122,132,152,162..DSL199505

main74453-36050iLY202,212..T3;LY21#..T2..WT..IV3199505-200004

main74453-36060iLY202,212..T3;LY212..T2..WT200004

main74453-36070iLY131..CBU;LY131..T2..ST..IV3;LY131..(T3,TW2)..IV3;LY101,111,121,151,161,201,211..DSL199505-199905

74473SPACER, BATTERY

main74473-25010×2iLY202,212..T3199905

main74473-36050×2iYY101,121,131,201,211..CBR199505

74474PAD, BATTERY

main74475-36040×2iLY211..T2..MTM..WT..IV3199505-199905

9011908676

main90119-08676

9011910531

main90119-10531

9011910571

main90119-10571

9017906158

main90179-06158

9017908141

main90179-08141

91645C1032

main91645-C1032

9413000802

main94130-00802

9413001002

main94130-01002

17 parts on this diagram · 4 diagrams in section
